Запчасти Case IH 1840 (09-13) - PALLET FORK, BRICK GUARD AND LOADER ATTACHMENT BAR (MODELS WITH PINNED COUPLER) (09) - CHASSIS/ATTACHMENTS

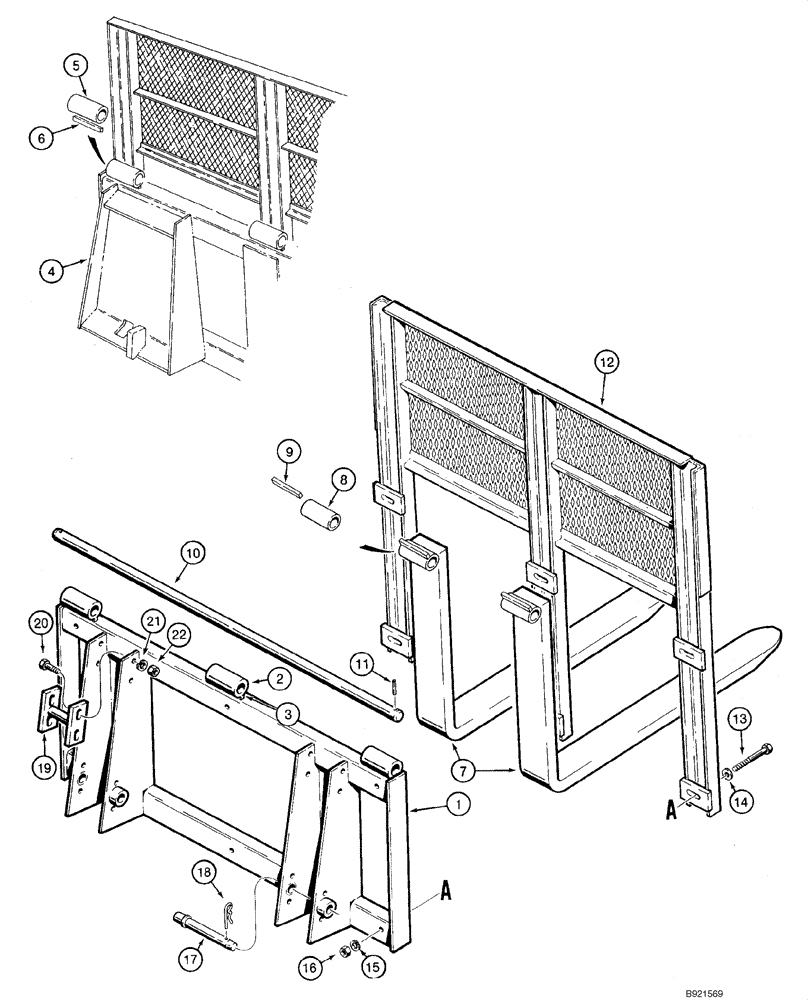

Схема запчастей Case IH 1840 - (09-13) - PALLET FORK, BRICK GUARD AND LOADER ATTACHMENT BAR (MODELS WITH PINNED COUPLER) (09) - CHASSIS/ATTACHMENTS
20
2
11
5
8
21
15
22
19
6
10
18
4
16
13
12
7
14
17
9
1
3

Артикул

Название

Примечание

Количество

1

D61679

FRAME

36 in; Pallet Fork; Without Brick Guard; Incl. 2, 3

1шт.

2

T41518

BUSHING

Fork Mounting Rod

3шт.

3

T40765

SPACER

Bushing To Frame

3шт.

4

H673797

FRAME

Frame, 42 in; Pallet Fork; With Brick Guard; Incl. 5, 6

1шт.

5

T41518

BUSHING

Fork Mounting Rod

3шт.

6

T40765

SPACER

Bushing To Frame

3шт.

7

D77683

FORK

36 in; Pallet; Incl. 8, 9

2шт.

8

T41518

BUSHING

Fork Mounting Rod

1шт.

9

H438017

STOP

Fork Bushing

1шт.

7

H673833

FORK

42 in; Pallet; Incl. 8, 9

2шт.

8

T41518

BUSHING

Fork Mounting Rod

1шт.

9

H438017

STOP

Fork Bushing

1шт.

10

T41522

ROD

Fork Mounting

1шт.

11

38-11632

LOCK PIN,1/4" x 2", Slotted

2шт.

12

REF

INSTRUCTION

Brick Guard; Bolt On; Order From Machinery Price List

1шт.

13

413-880

BOLT,Hex, 1/2" - 13 x 5", Gr 5

1/2 NC x 5 in

6шт.

14

495-21056

WASHER,1/2"

9/16 x 1-3/8 x 7/64 in

6шт.

15

80679

LOCK WASHER,1/20.507 CST ZND

6шт.

16

425-108

NUT,1/2" - 13, Gr 5

6шт.

17

D132172

PIN

Lower; Pallet Fork Frame To Loader Arm

2шт.

18

136-162

HAIR PIN COTTER,Int, 1/2" x .250"

1/2 x 3-1/4 in; Loader Attachment Bar

2шт.

19

D61308

PIN

Upper; Pallet Fork Frame

2шт.

20

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

8шт.

21

80679

LOCK WASHER,1/20.507 CST ZND

8шт.

22

425-108

NUT,1/2" - 13, Gr 5

8шт.

Выбрано товаров: 25
