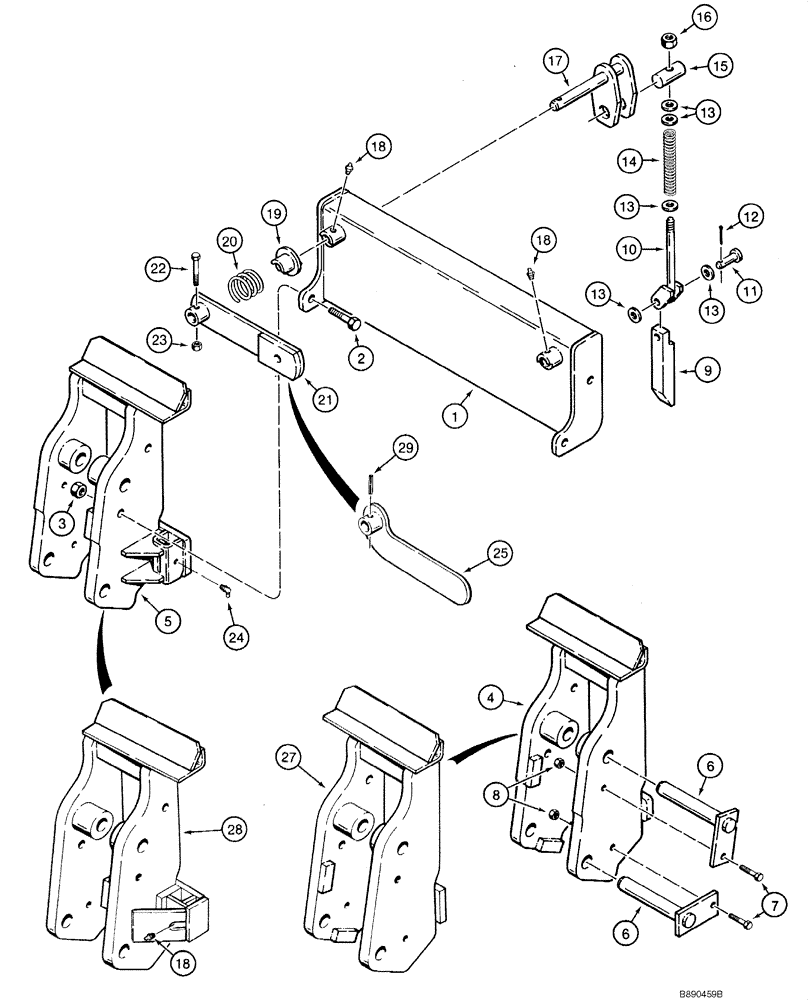

Запчасти Case IH 1840 (09-12) - CASE COUPLER (09) - CHASSIS/ATTACHMENTS

1

H673348

CROSSMEMBER

Torque; Coupler

1шт.

2

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

3

232-4118

NUT,1/2"-13, GC

4шт.

4

H673343

COUPLING

Frame; Right Hand; No Longer Available, For Service, Order REF 27

1шт.

5

H674802

COUPLING

Frame; Left Hand; No Longer Available, For Service, Order REF 28

1шт.

6

H673520

PIN

Coupler

4шт.

7

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

4шт.

8

232-4116

NUT,3/8"-16, GC

4шт.

9

H436000

WEDGE

Lock

2шт.

10

H673349

ROD

Clevis

2шт.

11

427-8168

CLEVIS PIN,12.7mm OD x 42.88mm L

2шт.

12

432-816

COTTER PIN,1/8" x 1"

2шт.

13

496-21053

WASHER,17/32" x 1 1/16" x .134"

10шт.

14

D124197

SPRING

Coupler Lever

2шт.

15

H436001

TRUNNION

Crank

2шт.

16

232-4118

NUT,1/2"-13, GC

2шт.

17

H673856

CRANK

Coupler; Replaces H673346

2шт.

18

219-86

LUBE NIPPLE,1/8" NPTF

(2-4); If Used

2шт.

19

H673583

SLEEVE

Crank

2шт.

20

H436051

SPRING

Crank

2шт.

21

H673344

LEVER

Coupler; No Longer Available, For Service, Order REF 25 or 26

2шт.

22

426-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 8

2шт.

23

232-4115

LOCK NUT,5/16"-18, GC

2шт.

24

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

Used with Ref 4 or 5

2шт.

25

H436936

LEVER

Coupler; Left Hand

1шт.

26

H436937

LEVER

Coupler; Right Hand; Not Illustrated

1шт.

27

H674801

COUPLING

Frame; Right Hand

1шт.

28

H674802

COUPLING

Frame; Left Hand

1шт.

29

438-12020

LOCK PIN,5/16" x 1 1/4", Slotted

used with ref 25 or 26; no longer used, order ref 22, 23 5/16" x 1 1/4", Slotted

2шт.

H675086

SET

Kit, Service; Coupler Reinforcement; Incl. (2) Gussets, (2) Reinforcing Bars, Instruction Sheet; - JAF0077457

1шт.
