Запчасти Case IH 1840 (09-08) - BUCKETS, JAF0098065 - (MODELS WITH CASE COUPLER) (09) - CHASSIS/ATTACHMENTS

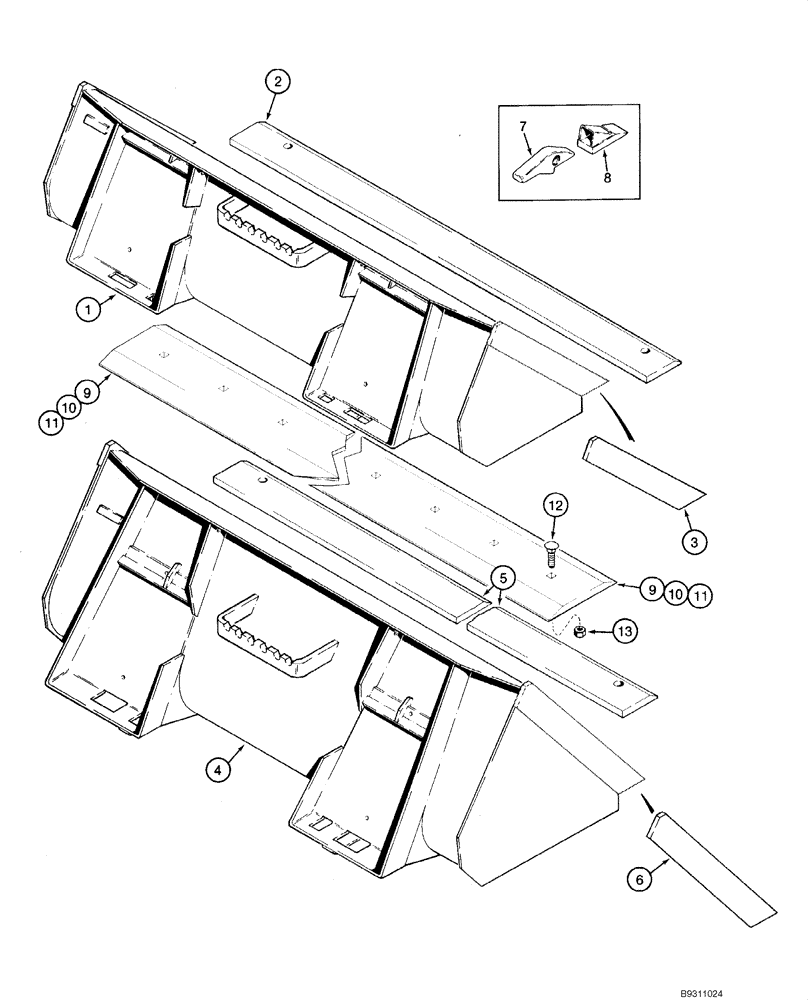

Схема запчастей Case IH 1840 - (09-08) - BUCKETS, JAF0098065 - (MODELS WITH CASE COUPLER) (09) - CHASSIS/ATTACHMENTS
10
9
1
13
4
12
5
11
9
7
8
10
6
3
11
2

Артикул

Название

Примечание

Количество

H674860

BUCKET

54 in (1372 mm); Dirt; Order From Machinery Price List; Incl. Following 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

Bucket, 54 in (1372 mm); Dirt

1шт.

2

H438890

EDGE, CUTTING

6 in (152 mm); Straight; Bucket

1шт.

3

H438259

EDGE

Side Cutting; Bucket

2шт.

H674861

BUCKET

63 in (1600 mm); Dirt; Order From Machinery Price List; Incl. Following 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

Bucket, 63 in (1600 mm) wide; Dirt

1шт.

2

H438542

EDGE, CUTTING

6 in (152 mm); Straight; Bucket

1шт.

3

H438259

EDGE

Side Cutting; Bucket

2шт.

H674884

BUCKET

54 in (1372 mm); Utility; Order From Machinery Price List; Incl. Following 4 - 6

1шт.

4

NSS

NOT SOLD SEPARAT

Bucket, 54 in (1372 mm); Utility

1шт.

5

H438890

EDGE, CUTTING

6 in (152 mm) wide; Straight; Bucket

1шт.

6

H438927

EDGE

Side Cutting; Bucket

2шт.

H674885

BUCKET

63 in (1600 mm) wide; Utility; Order From Machinery Price List; Incl. Following 4 - 6

1шт.

4

NSS

NOT SOLD SEPARAT

Bucket, 63 in (1600 mm); Utility

1шт.

5

H438542

EDGE, CUTTING

6 in (152 mm) wide; Straight; Bucket

1шт.

6

H438927

EDGE

Side Cutting; Bucket

2шт.

H674886

BUCKET

73 in (1854 mm); Utility; Order From Machinery Price List; Incl. Following 4 - 6

1шт.

4

NSS

NOT SOLD SEPARAT

Bucket, 73 in (1854 mm); Utility

1шт.

5

H438919

EDGE, CUTTING

6 in (152 mm); Straight; Bucket

1шт.

6

H438927

EDGE

Side Cutting; Bucket

2шт.

D127919

TOOTH

6 in (152 mm); Bucket; Incl. Following 7, 8; Used Only On Dirt Buckets With 6 in Cutting Edge; No Longer Available, Order Component Parts Separately

8шт.

7

D127918

SHANK, BUCKET TOOTH

1шт.

8

T41166

TOOTH

1шт.

9

H439027

EDGE, CUTTING

6 in (152 mm); Bucket; Used With 54 in Bucket; Optional Bolt-On Reversible Blade

1шт.

10

H439028

EDGE, CUTTING

6 in (152 mm); Bucket; Used With 63 in Bucket; Optional Bolt-On Reversible Blade

1шт.

11

H439029

EDGE, CUTTING

6 in (152 mm); Bucket; Used With 73 in Bucket; Optional Bolt-On Reversible Blade

1шт.

12

420-21036

CARRIAGE BOLT,#3, 5/8" - 11 x 2 1/4", Gr 8

(9-12)

9шт.

13

329-1010

NUT,5/8"-11, G8

(9-12)

9шт.

Выбрано товаров: 28
