Запчасти Case IH 1840 (09-05) - LOADER LIFT - FRAME (09) - CHASSIS/ATTACHMENTS

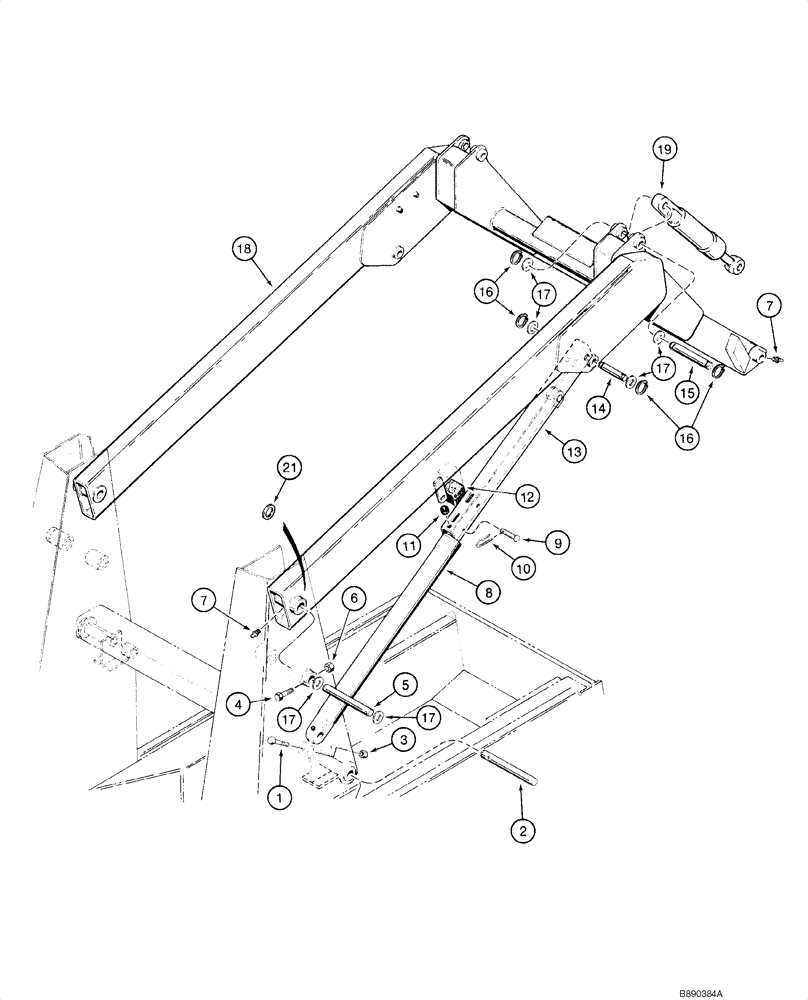

Схема запчастей Case IH 1840 - (09-05) - LOADER LIFT - FRAME (09) - CHASSIS/ATTACHMENTS
4
17
18
11
16
16
8
12
21
13
2
19
9
10
17
7
17
5
14
3
7
1
6
15
17

Артикул

Название

Примечание

Количество

1

426-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 8

2шт.

2

D134003

PIN,25.4mm OD x 164mm L

Lift Cylinder To Chassis

2шт.

3

232-4116

NUT,3/8"-16, GC

2шт.

4

426-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 8

2шт.

5

D124397

PIN,31.75mm OD x 235mm L

Loader Lift Frame To Chassis

2шт.

6

232-4116

NUT,3/8"-16, GC

2шт.

7

219-86

LUBE NIPPLE,1/8" NPTF

4шт.

8

G110666

CYLINDER

2-1/2 (64) ID x 26-3/4 in (679 mm); See Figure 08-25; No Longer Available, Order 117824A1, See Figure 08-26

2шт.

9

D79998

PIN

Strut; Lock; North American Models

1шт.

9

H439165

PIN,9.5mm OD x 86mm L

Strut; Lock; European Models; , No Longer Used, Order D79998

1шт.

10

136-159

HAIR PIN COTTER,Int, 3/16 x .080"

1шт.

11

248-2198

GROMMET,3/8" ID x 5/8" Groove Dia

5/8 in

1шт.

12

D79692

PAD

Strut; Lift Arm; North American Models

1шт.

12

E20314

PAD

Strut; Lift Arm; European Models; No Longer Used, Order E20314

1шт.

13

D124937

STRUT

Lift Frame Support

1шт.

14

D137151

PIN,25.4mm OD x 122.6mm L

1 x 4-13/16 in

2шт.

15

D137594

PIN,25.4mm OD x 134.5mm L

Bucket Tilt Cylinder To Loader Lift Frame

2шт.

16

H753244

SNAP RING,#98, Ext

Replaces 100-1698

8шт.

17

495-81187

WASHER,1 1/16" x 1 5/8" x .065"

1-1/16 x 1-3/4 x 1/16 in (8-12); Replaces 95-81125

8шт.

18

229570A1

ARM

Loader Lift; Replaces H673259, 185327A1

1шт.

19

G103407

CYLINDER

2-1/2 (64) ID x 15-7/8 in (403 mm); See Figure 08-27; No Longer Available, Order 118110A1

2шт.

19

118110A1R

REMAN-HYD CYLINDER

1840 CASE UNI LOADER SKID STEER LOADER, Reman for New PN G103407

2шт.

19

118110A1C

CORE-HYD CYLINDER

Return Number

2шт.

19

118110A1

CYLINDER,Double Acting, 31.8mm Rod, 402.6mm Stroke

2-1/2 (64) ID x 15-7/8 in (403 mm); See Figure 08-28

2шт.

19

118110A1R

REMAN-HYD CYLINDER

1840 CASE UNI LOADER SKID STEER LOADER

2шт.

19

118110A1C

CORE-HYD CYLINDER

Return Number

2шт.

20

345-44

ADHESIVE

3M No. 74 23 oz; Spray; For Attaching Pad To Metal Surface; Not Illustrated; Buy Locally

1шт.

21

E134540

WASHER

European Models; No Longer Used, Order 495-81187, REF 17

2шт.

Выбрано товаров: 28
