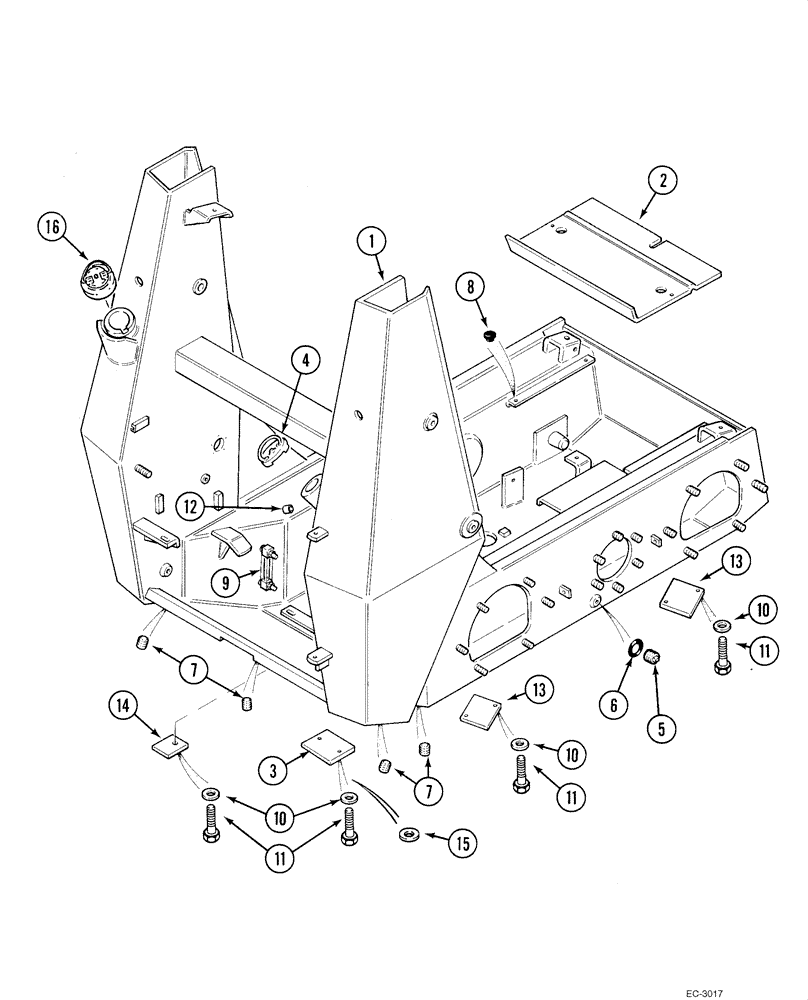

Запчасти Case IH 1840 (09-03) - CHASSIS (EUROPE, - JAF0098065) (09) - CHASSIS/ATTACHMENTS

1

H673374

CHASSIS

Uni-Loader; No Longer Available, Order E20755

1шт.

1

E20755

FRAME

Uni-Loader

1шт.

2

H436148

PLATE ASSY.

Floor

1шт.

3

D136959

PLATE

Access

1шт.

4

D93981

FILLER CAP

Without Filter

1шт.

5

9841223

PLUG,1-1/16" - 12 ORB

Incl. 6

2шт.

6

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

7

221-846

PLUG,Hex Soc, 1"-11 1/2

1 in

4шт.

8

A161780

BUMPER

4шт.

9

H435669

GAUGE

Hydraulic Oil

1шт.

10

80679

LOCK WASHER,1/20.507 CST ZND

7шт.

11

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

7шт.

12

N8796

PLUG

Hydraulic Oil Fill Tube

1шт.

13

H435050

PLATE

With Two Mounting Holes

2шт.

14

D138561

PLATE

With One Mounting Hole

1шт.

15

496-21053

WASHER,17/32" x 1 1/16" x .134"

2шт.

16

108925A1

FILLER CAP

Fuel; Locking; Incl. (2) Keys

1шт.
