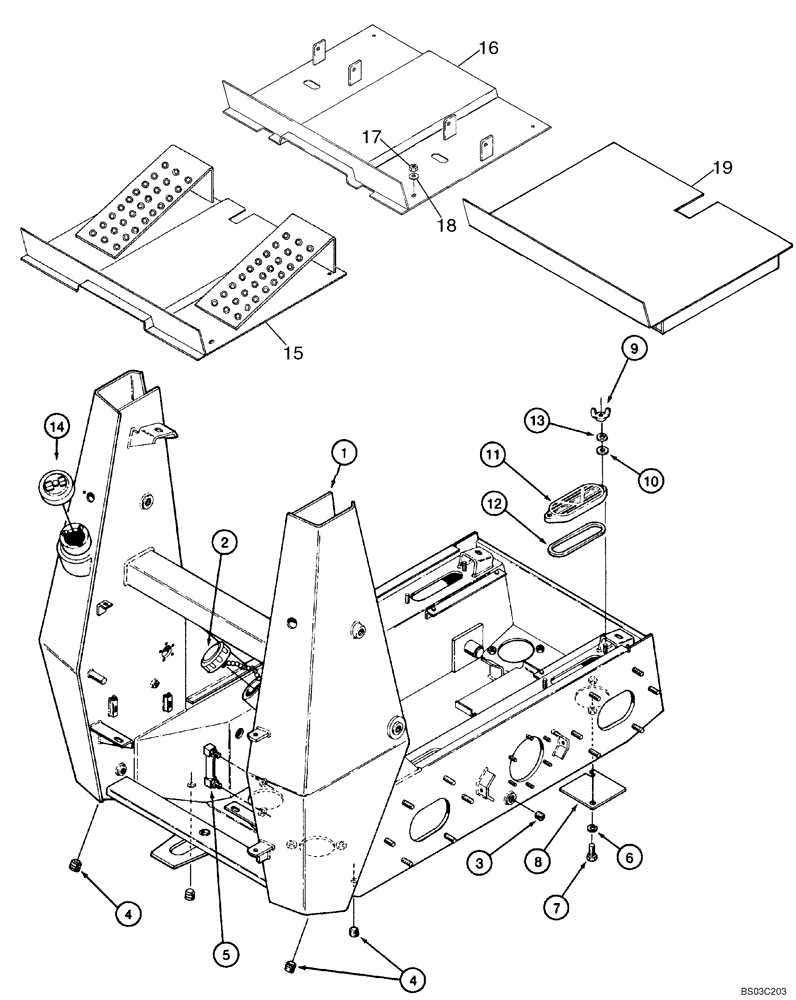

Запчасти Case IH 1840 (09-02) - CHASSIS (NORTH AMERICA, JAF0134061 - ) (09) - CHASSIS/ATTACHMENTS

1

140738A1

FRAME

Uni-Loader; JAF0134061 - ; Without Emissions Certified Engine; No Longer Available, Order 227866A2

1шт.

1

227866A2

KIT

Replaces 140738A1

1шт.

1

282472A1

Uni-Loader; With Emissions Certified Engine; Not Illustrated

1шт.

2

257448A1

CAP

With Filter; Hydraulic Reservoir; Replaces H674463; Incl. 2A

1шт.

2a

292259A1

SEAL

1шт.

3

9841223

PLUG,1-1/16" - 12 ORB

If Used

2шт.

4

221-846

PLUG,Hex Soc, 1"-11 1/2

1 in

4шт.

5

H435669

GAUGE

Hydraulic Oil

1шт.

6

80679

LOCK WASHER,1/20.507 CST ZND

8шт.

7

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

Replaces 413-820, If Used

8шт.

8

H436914

LARGE PLATE

PLATE, LARGE

4шт.

9

129-410

WING NUT,3/8"-16

8шт.

10

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

8шт.

11

103264A2

COVER

4шт.

12

H438686

GASKET,323.4mm L

4шт.

13

492-11038

LOCK WASHER,3/8"

8шт.

14

H436887

CAP

Fuel, Non-Locking, Replaces 108925A1; Incl. (2) Keys

1шт.

15

H674199

PLATE

Models With Hand Controls; If Used

1шт.

16

H673774

SHEET

Models With Foot Controls

1шт.

17

231-5146

FLANGE NUT,3/8"-16

4шт.

18

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

4шт.

19

H675152

LARGE PLATE

PLATE, LARGE Models With Hand Control; If Used

1шт.
