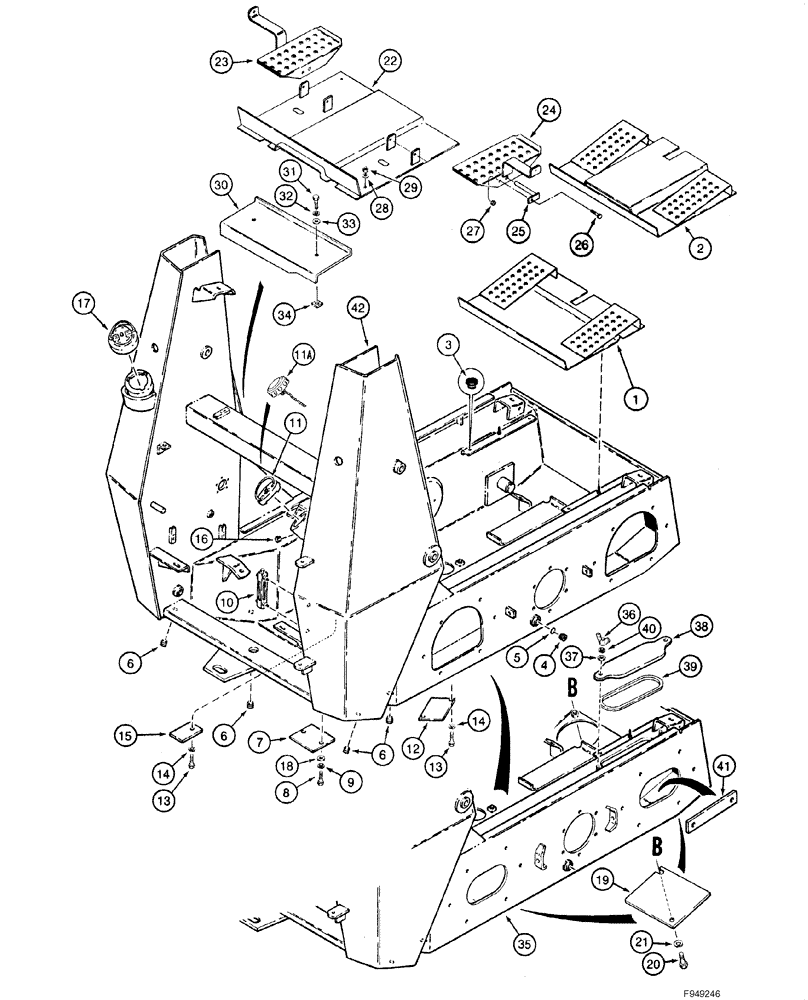

Запчасти Case IH 1840 (09-01) - CHASSIS (NORTH AMERICA, - JAF0134061) (09) - CHASSIS/ATTACHMENTS

1

H673430

PLATE

Floor; Without Raised Center Section

1шт.

2

H674199

PLATE

Floor; With Raised Center Section

1шт.

3

A161780

BUMPER

4шт.

4

9841223

PLUG,1-1/16" - 12 ORB

2шт.

5

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

6

221-846

PLUG,Hex Soc, 1"-11 1/2

1 in

4шт.

7

D136959

PLATE

Access

1шт.

8

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

2шт.

9

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

10

H435669

GAUGE

Hydraulic Oil

1шт.

11

D93981

FILLER CAP

Without Filter Hydraulic Reservoir

1шт.

11a

H674463

PLUG

With Filter Hydraulic Reservoir

1шт.

12

H435050

PLATE

With Two Mounting Holes

2шт.

13

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

5шт.

14

80679

LOCK WASHER,1/20.507 CST ZND

5шт.

15

D138561

PLATE

With One Mounting Hole

1шт.

16

N8796

PLUG

Hydraulic Oil Fill Tube; Used With REF 11

1шт.

17

D93757

CAP

Fuel; Replaces A51390

1шт.

17

108925A1

FILLER CAP

Fuel; Locking; Incl. (2) Keys; Not Illustrated

1шт.

18

496-21053

WASHER,17/32" x 1 1/16" x .134"

2шт.

19

H436914

LARGE PLATE

PLATE, LARGE With One Hole And One Notch

4шт.

20

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

8шт.

21

80679

LOCK WASHER,1/20.507 CST ZND

8шт.

22

H673774

SHEET

Floor; Models With Foot Control

1шт.

23

H673783

PEDAL

Foot Control; Left Hand

1шт.

24

H673772

PEDAL

Foot Control; Right Hand

1шт.

25

H673771

PIN,12.7mm OD x 140mm L

Pedal Mounting

2шт.

26

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

27

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

28

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

2шт.

29

231-5146

FLANGE NUT,3/8"-16

2шт.

30

H673737

INSULATOR

Noise

1шт.

31

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

32

492-11038

LOCK WASHER,3/8"

2шт.

33

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

2шт.

34

84899

SQUARE NUT,Sq, 3/8"-16, G2

2шт.

35

101848A1

FRAME

Uni-Loader; No Longer Available, Order 182437A1

1шт.

35

182437A1

CHASSIS

Uni-Loader; Incl. 36 - 41

1шт.

36

129-410

WING NUT,3/8"-16

8шт.

37

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

8шт.

38

103264A2

COVER

Frame; Replaces 103264A1

4шт.

39

H438686

GASKET,323.4mm L

4шт.

40

492-11038

LOCK WASHER,3/8"

8шт.

41

H438670

BAR

Reinforcement

4шт.

42

H673374

CHASSIS

Uni-Loader; - JAF0098608; No Longer Available, Order 182440A1

1шт.
