Запчасти Case IH 1840 (08-66) - CONTROLS - HYDRAULIC, OPTIONAL HIGH FLOW (08) - HYDRAULICS

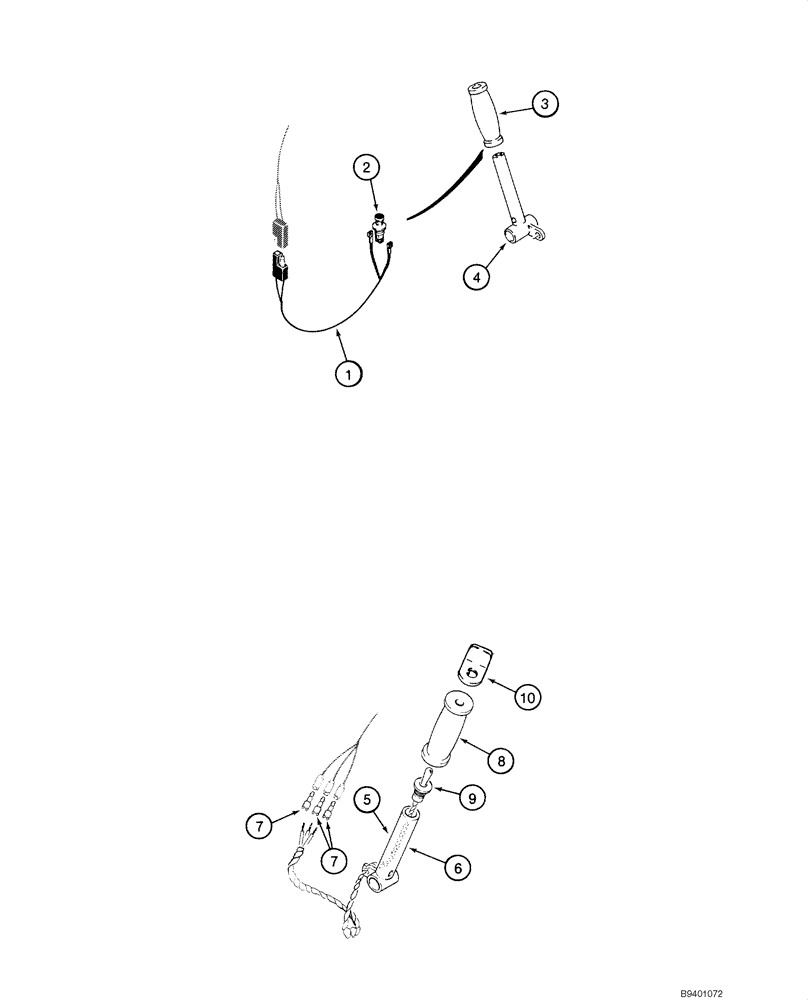

Схема запчастей Case IH 1840 - (08-66) - CONTROLS - HYDRAULIC, OPTIONAL HIGH FLOW (08) - HYDRAULICS
5
8
2
9
10
3
4
7
7
1
6

Артикул

Название

Примечание

Количество

USED WITH SINGLE DIRECTIONAL SOLENOID VALVE

1шт.

1

D134076

HARNESS

Horn Switch; REF 1 - 4 Used With Single Directional Solenoid Valve

1шт.

2

112653A1

SWITCH

High Flow

1шт.

3

D133282

HANDLE

Control Lever

1шт.

4

D133283

LEVER

Control; Pump

1шт.

USED WITH BI-DIRECTIONAL SOLENOID VALVE

1шт.

5

120225A1

LEVER

Control; Incl. 6 - 10; REF 5 - 10 Used With Bi-Directional Solenoid Valve; No Longer Available, Order Component Parts Separately; With Toggle Switch

1шт.

6

H439164

LEVER

Control

1шт.

7

E20680

TERMINAL CONNECTOR,Male

4 mm

3шт.

8

D133282

HANDLE

Control Lever

1шт.

9

101615A2

IGNITION SWITCH

1шт.

10

123676A1

SHIELD

Switch

1шт.

Выбрано товаров: 12
