Запчасти Case IH 1840 (02-12) - MANIFOLDS, 4-390 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

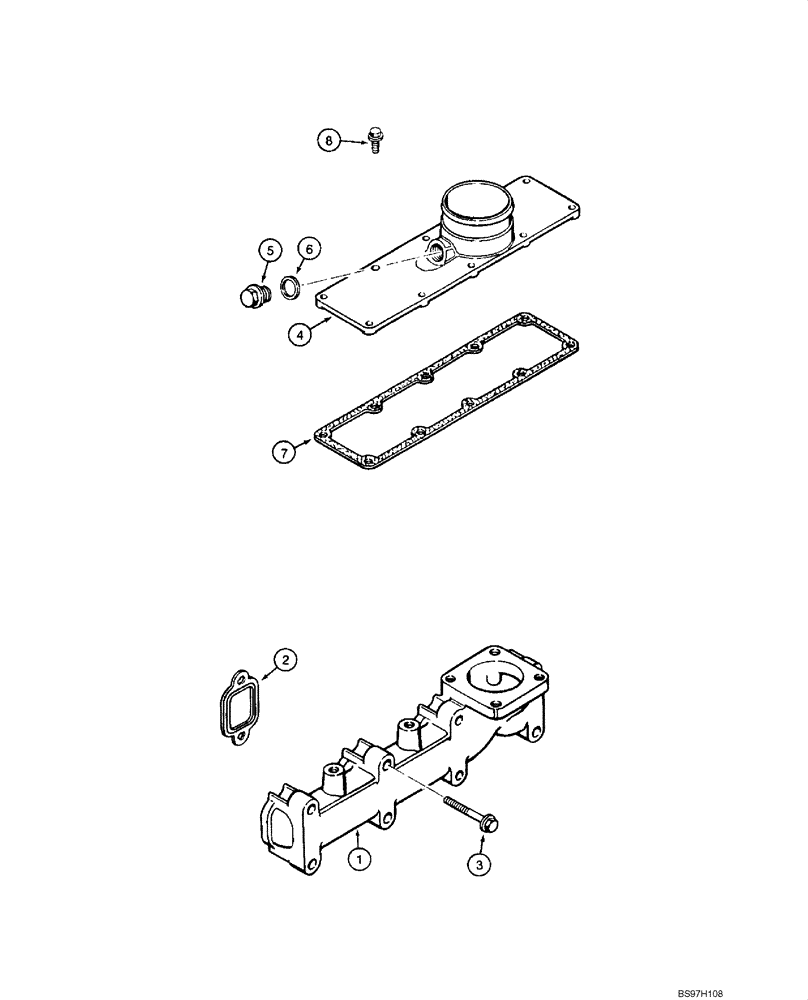

Схема запчастей Case IH 1840 - (02-12) - MANIFOLDS, 4-390 EMISSIONS CERTIFIED ENGINE (02) - ENGINE
6
7
2
8
1
3
4
5

Артикул

Название

Примечание

Количество

1

J901223

MANIFOLD

Exhaust

1шт.

2

J927154

GASKET,0.38mm Thk

Exhaust Manifold; Replaces J905443

4шт.

3

J901448

FLANGE BOLT,Hex, M10 x 65mm

Cl 10.9; Replaces J930249

8шт.

A77415

COVER

Intake Manifold; Incl. 4 - 6

1шт.

4

J904340

COVER

Intake

1шт.

5

J907185

PLUG

Manifold

1шт.

6

J906773

WASHER

1шт.

7

J938153

MANIFOLD GASKET,0.8mm Thk

Intake Manifold; Replaces J931605

1шт.

8

J918109

FLANGE BOLT,Hex, M8 x 1.25 x 25mm

Intake Manifold

10шт.

Выбрано товаров: 9
