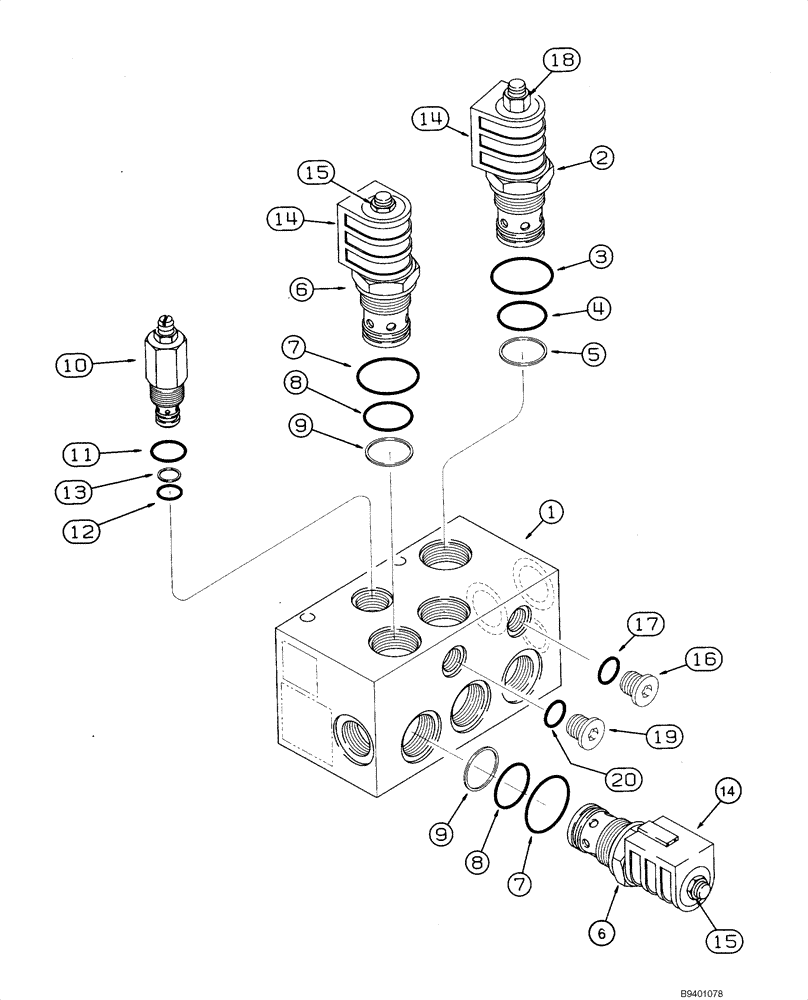

Запчасти Case IH 1840 (08-65) - VALVE, SOLENOID - HYDRAULICS, HIGH FLOW (08) - HYDRAULICS

1

111479A1

SOLENOID VALVE

High Flow; Bi-Directional; Incl. 2 - 20

1шт.

2

128508A1

SOLENOID VALVE

Cartridge; Incl. 407155A1

1шт.

407155A1

SEAL KIT

Incl. 3 - 5; Replaces 128515A1

1шт.

3

NSS

NOT SOLD SEPARAT

O-ring; Large

1шт.

4

NSS

NOT SOLD SEPARAT

O-ring; Small

1шт.

5

NSS

NOT SOLD SEPARAT

Ring

1шт.

6

128509A1

SOLENOID VALVE

Cartridge; Incl. 407155A1

4шт.

407155A1

SEAL KIT

Incl. 7 - 9

1шт.

7

NSS

NOT SOLD SEPARAT

O-ring; Large

1шт.

8

NSS

NOT SOLD SEPARAT

O-ring; Small

1шт.

9

NSS

NOT SOLD SEPARAT

Ring

1шт.

10

128510A1

VALVE POPPET

Relief; Incl. 11 - 13

1шт.

128516A1

SEAL KIT

Incl. 11 - 13

1шт.

11

NSS

NOT SOLD SEPARAT

O-ring; Large

1шт.

12

NSS

NOT SOLD SEPARAT

O-ring; Small

1шт.

13

NSS

NOT SOLD SEPARAT

Ring

1шт.

14

128511A1

SOLENOID

5шт.

15

425-158

JAM NUT,Jam, 1/2"-20, G5

1шт.

16

9625178

PLUG,9/16" - 18 ORB

Incl. 17

2шт.

18

25-278

NUT,1/2"-20, G5, High

1шт.

19

71100209

PLUG,Hex Soc, 3/4"-16 ORB

Incl 20

1шт.

20

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

17

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
