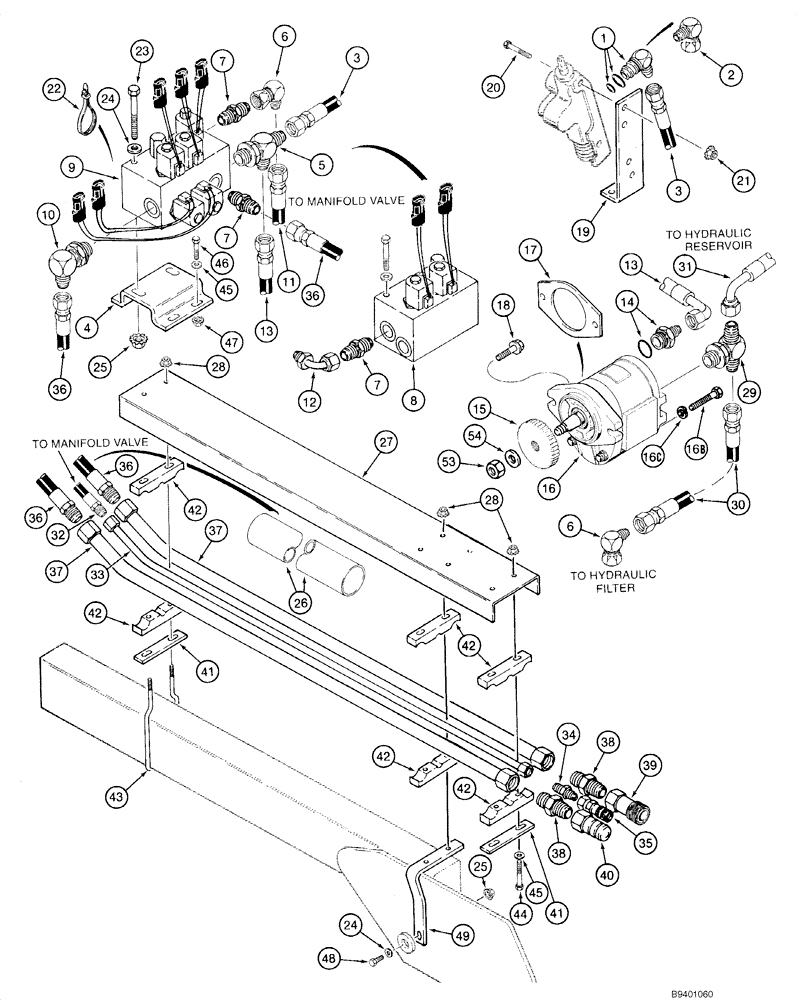

Запчасти Case IH 1840 (08-63) - HYDRAULICS - OPTIONAL HIGH FLOW (08) - HYDRAULICS

1

112327A1

ELBOW

90 degree; Power Beyond

1шт.

2

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

1шт.

3

117286A1

HOSE ASSY.

76-3/4 in (1950 mm); Auxiliary Valve Power Beyond Port To Solenoid Valve

1шт.

4

116353A1

SUPPORT

Solenoid Valve Mounting

1шт.

5

218-5294

TEE,37 Degree, 7/8"-14, 1 1/16"-12 O-Ring Run, 7/8"-14

7/8-14 flare branch x flare x 1-1/16-12 in adj O-ring boss

1шт.

6

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

1шт.

7

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

O-Ring boss

2шт.

8

117870A1

SOLENOID

High Flow; Single Directional; See Figure 08-64

1шт.

9

111479A1

SOLENOID VALVE

High Flow; Bi-Directional; See Figure 08-65

1шт.

10

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

1шт.

11

117289A1

HOSE ASSY.

49-1/4 in (1250 mm); Return; Solenoid Valve To Manifold

1шт.

12

218-984

ADAPTER,90 Degree, 37 Degree Fl, 1 1/16"-12 Male x 1 1/16"-12 Fem

90 degree 1-1/16-12 flare x 3/4 in; Stem End; Used With Single Directional Solenoid Valve

1шт.

13

117287A1

HOSE ASSY.

39-3/8 in (1000 mm); Auxiliary Pump To Solenoid Valve

1шт.

14

218-5063

HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

7/8-14 flare x 1-1/16-12 in O-ring boss

1шт.

15

J924187

PINION

Pump Drive; Replaces J905607

1шт.

16

323426A1

PUMP, HYDRAULIC

High Flow; Incl. 361942A1

1шт.

361942A1

SEAL KIT

Repair Kit For 323426A1; Not Illustrated

1шт.

16

113461A1

PUMP, HYDRAULIC

High Flow; Incl. 16A - 16D; No Longer Available, Order 323426A1

1шт.

16a

132966A1

SEAL

No Longer Available, Order 132967A1; Not Illustrated

2шт.

16b

115115A1

BOLT

12 - 1.75 x 128 mm;10.9

4шт.

16c

892-11012

LOCK WASHER,M12

4шт.

16d

132967A1

SEAL KIT

Not Illustrated

1шт.

17

J919601

GASKET

Access Cover Plate

1шт.

18

854-12030

BOLT,Hvy Hex, M12 x 30mm, Cl 10.9

Used with 113461A1, Ref 16

2шт.

18

857-12030

BOLT,Hvy Hex, M12 x 30mm, Cl 10.9

Used with 323426A1, Ref 16

2шт.

19

121022A1

SUPPORT

Auxiliary Control Valve

1шт.

20

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

2шт.

21

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

22

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

3шт.

23

413-680

BOLT,Hex, 3/8" - 16 x 5", Gr 5

2шт.

24

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

3шт.

25

231-5146

FLANGE NUT,3/8"-16

3шт.

26

123397A1

SLEEVE

1шт.

27

122340A1

COVER

1шт.

28

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

6шт.

29

218-5513

TEE,1 1/16"-12, 37 Degree x 1 5/16"-12, O-Ring Br

1шт.

30

117288A1

HOSE ASSY.

24-13/16 in (630 mm); Filter Outlet To High Flow Pump Inlet; If Used

1шт.

30

300851A1

HOSE ASSY.

Filter Outlet To High Flow Pump Inlet

1шт.

31

131224A1

HOSE ASSY.

19-11/16 in (500 mm); Hydraulic Tank To High Flow Pump

1шт.

32

117291A1

HOSE ASSY.

88-9/16 in (2250 mm); Case Drain To Manifold

1шт.

33

117399A1

TUBE,12.7 mm OD, 1030, 40 mm Length

Case Drain

1шт.

34

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

O-ring boss

1шт.

35

122180A1

COUPLING, BREAK AWAY

Quick Disconnect; Male

1шт.

143431A1

COUPLING, QUICK, FEM

Quick Disconnect; Female

1шт.

36

117292A1

HOSE ASSY.,19.05mm ID x 3130mm L

123-1/4 in (3130 mm); Solenoid Valve To Tubes

2шт.

37

117398A1

TUBE,25.4 mm OD, 1030, 40 mm Length

Supply And Return On Loader Arm

2шт.

38

218-5050

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

2шт.

39

122179A1

COUPLING, BREAK AWAY

Quick Disconnect; Female

1шт.

40

122178A2

COUPLING, BREAK AWAY

Quick Disconnect; Male; Replaces 122178A1

1шт.

41

117639A1

BAR

Hydraulic Clamp

2шт.

42

117638A1

CLAMP

Tube

6шт.

43

117663A1

ROD

U-Bolt

1шт.

44

413-544

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

4шт.

45

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16")

8шт.

46

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

5/16 NC x 1-1/4 in

4шт.

47

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

48

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

49

118693A1

SUPPORT

Tube Mounting

1шт.

50

121572A1

BAR

Not Illustrated

1шт.

51

413-544

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

Not Illustrated

2шт.

52

425-159

JAM NUT,Jam, 9/16"-18, G5

1шт.

53

495-11059

WASHER,9/16"

19/32 x 1-5/32 x 3/32 in

1шт.
