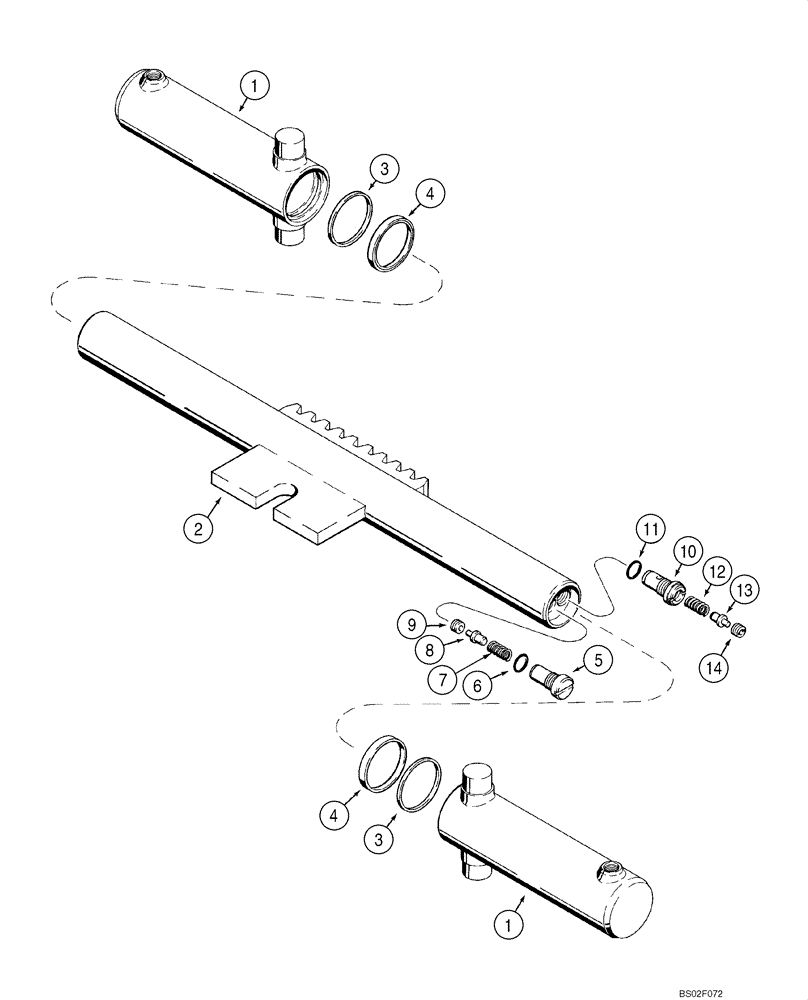

Запчасти Case IH 1840 (08-62A) - CYLINDER ASSY - BACKHOE SWING (NORTH AMERICA) (08) - HYDRAULICS

379623A1

CYLINDER ASSY.,Double Acting, 60.8mm Rod, 254mm Stroke

70 ID x 254 mm strk; Swing; Incl. 1 - 17

1шт.

1

398164A1

TUBE

2шт.

2

398163A1

PISTON ROD

1шт.

3

NSS

NOT SOLD SEPARAT

Seal, Wiper

2шт.

4

NSS

NOT SOLD SEPARAT

Seal, U-Cup

2шт.

H53033

LOCK VALVE

Relief; Incl. 5 - 9

1шт.

5

NSS

NOT SOLD SEPARAT

Body

1шт.

6

238-5116

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

1шт.

7

F37883

SPRING

1шт.

8

H138362

SPOOL

1шт.

9

NSS

NOT SOLD SEPARAT

Seat

1шт.

H53025

LOCK VALVE

Relief; Incl. 10 - 14

1шт.

10

NSS

NOT SOLD SEPARAT

Body

1шт.

11

238-5116

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

1шт.

12

F37883

SPRING

1шт.

13

H138362

SPOOL

1шт.

14

NSS

NOT SOLD SEPARAT

Seat

1шт.

398166A1

KIT

Incl. 3, 4, 7, 11

1шт.
