Запчасти Case IH 1840 (08-61) - CYLINDER ASSY - STABILIZER CYLINDER (D125) (08) - HYDRAULICS

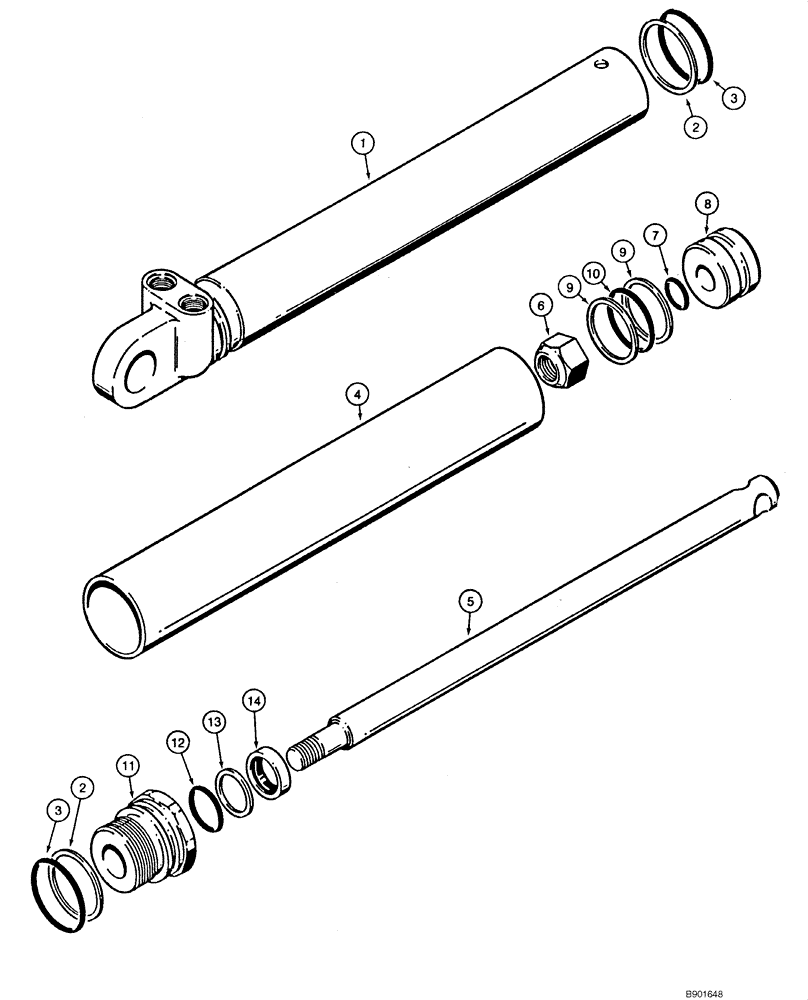

Схема запчастей Case IH 1840 - (08-61) - CYLINDER ASSY - STABILIZER CYLINDER (D125) (08) - HYDRAULICS
13
2
11
1
2
9
12
3
6
8
10
5
9
14
7
4
3

Артикул

Название

Примечание

Количество

H514117

CYLINDER BLOCK

2 (51) ID x 12 in (305 mm); Vertical Stabilizer; Incl. 1 - 14

2шт.

1

H52654

HYD CYL SLEEVE

Cylinder; Outer

1шт.

2

NSS

NOT SOLD SEPARAT

Washer

2шт.

3

238-5224

O-RING,0.139" Thk x 1.734" ID, -224, Cl 5, 75 Duro

2шт.

4

H52662

HYD CYL SLEEVE

Cylinder; Inner

1шт.

5

H52688

ROD

Piston

1шт.

6

131-1121

LOCK NUT,Hex, 5/8" - 18, Gr A

1шт.

7

238-5115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

1шт.

8

H52670

PISTON ASSY.

Cylinder

1шт.

9

H754614

WASHER

2шт.

10

238-5334

O-RING,0.21" Thk x 2.6" ID, -334, Cl 5, 75 Duro

1шт.

11

H52696

BEARING

Cylinder End

1шт.

12

238-5214

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

1шт.

13

NSS

NOT SOLD SEPARAT

Ring

1шт.

14

H746297

SEAL ASSY.

Piston Rod

1шт.

H52704

KIT

Seal, Cylinder Repair; Incl. 2, 3, 7, 9, 10, 12, 13

1шт.

Выбрано товаров: 16
