Запчасти Case IH 1840 (08-60) - CYLINDER ASSY - BACKHOE DIPPER CYLINDER (D125) (08) - HYDRAULICS

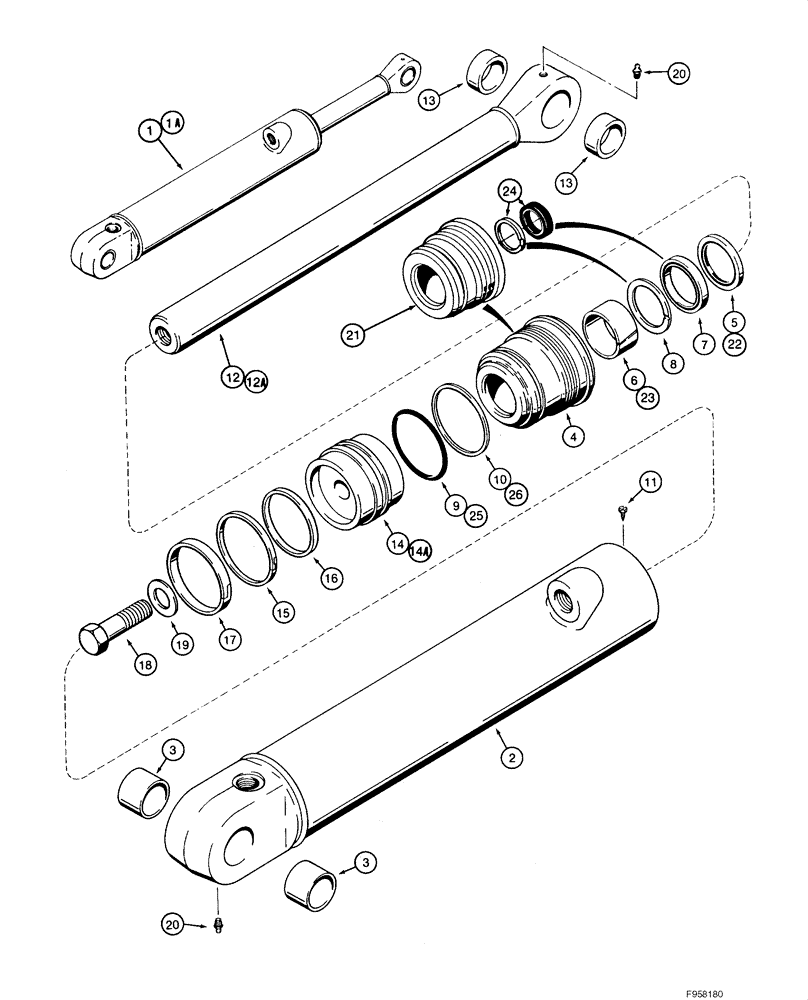

Схема запчастей Case IH 1840 - (08-60) - CYLINDER ASSY - BACKHOE DIPPER CYLINDER (D125) (08) - HYDRAULICS
2
19
6
16
12
25
24
14a
18
3
7
13
20
17
15
1a
22
9
3
23
26
11
10
13
8
14
12a
1
21
4
5
20

Артикул

Название

Примечание

Количество

1

1346411C1

CYLINDER ASSY.

3 (76) ID x 19-5/8 in (498 mm); Backhoe; Dipper; No Longer Available, Order 1346411C2

1шт.

1a

1346411C2

CYLINDER ASSY.

3 (76) ID x 19-5/8 in (498 mm); Incl. 2 - 26; No Longer Available, Order 1346411C3; See Figure 08-60A

1шт.

2

1346412C1

TUBE

Cylinder; Incl. 3

1шт.

3

R10754

BUSHING

Cylinder Tube

2шт.

1346416C1

GLAND

Cylinder; Incl. 4 - 10; Has Smooth Outer Lip; No Longer Available, Order REF 21 And 1543256C1

1шт.

4

NSS

NOT SOLD SEPARAT

Gland; Cylinder

1шт.

5

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

Piston Rod

1шт.

6

G102424

BUSHING,38.1mm ID x 41.17mm OD x 25.15mm L

1шт.

7

G107921

SEAL,38.07mm ID x 50.93mm OD x 10.69mm Thk

Piston Rod; Wide; With O-ring

1шт.

7

G100776

SEAL

Piston Rod; Service Option; Severe Heat Or Cold

1шт.

8

G109093

SEAL,37.72mm ID x 50.98mm OD x 3.05mm Thk

Piston Rod; Narrow

1шт.

9

238-5231

O-RING,0.139" Thk x 2.609" ID, -231, Cl 5, 75 Duro

1шт.

10

G109298

RING,69.47mm ID x 75.57mm OD x 1.4mm Thk

1шт.

11

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

1шт.

12

1346414C1

PISTON ROD

1-1/2 in (38 mm); No Longer Available, Order 12A, 14A, G32303 Washer, and 25974R1 Bolt

1шт.

12a

1346414C2

PISTON ROD

Piston; Incl. 13

1шт.

13

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

2шт.

14

G108518

PISTON

Cylinder; Used With 1346411C1

1шт.

14a

1543369C1

PISTON

Cylinder; Used With 1346411C2

1шт.

15

G102288

SEAL,Locking, 71.71mm ID x 76.43mm OD x 6.96mm Thk

Piston

1шт.

16

G100444

SEALING RING,Square, 5.28mm Thk x 62.61mm ID

Piston

1шт.

17

G100449

WEAR RING,Split, 69.85mm ID x 76.2mm OD x 9.52mm Thk

Piston

1шт.

18

25863R1

BOLT,Hex, 3/4" - 16 x 2 1/2", Gr 8

1шт.

19

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

1шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

NSS

NOT SOLD SEPARAT

Gland Assy; Cylinder; Incl. 21 - 26

1шт.

21

1346417C1

GLAND

Cylinder; Has Identification Groove On Outer Lip

1шт.

22

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

Piston Rod; Outer

1шт.

23

G102424

BUSHING,38.1mm ID x 41.17mm OD x 25.15mm L

1шт.

24

1542874C1

SEAL KIT,38.1mm Rod

Incl 24A, 24B; Not Serviced Separately; Wide and Narrow; No Longer Available, Order 1543256C1

1шт.

24a

1542997C1

SEALING RING

Not Serviced Separately, Order 1543256C1

1шт.

24b

NSS

NOT SOLD SEPARAT

Seal; Not Serviced Separately, Order 1543256C1

1шт.

25

238-5231

O-RING,0.139" Thk x 2.609" ID, -231, Cl 5, 75 Duro

1шт.

26

G109298

RING,69.47mm ID x 75.57mm OD x 1.4mm Thk

1шт.

1543256C1

SEAL KIT,38.1mm Rod, 76.2mm Bore

Incl 5, 6, 7 (G107921), 8 - 10, 15 - 17, 22, 23, 25, 26

1шт.

Выбрано товаров: 35
