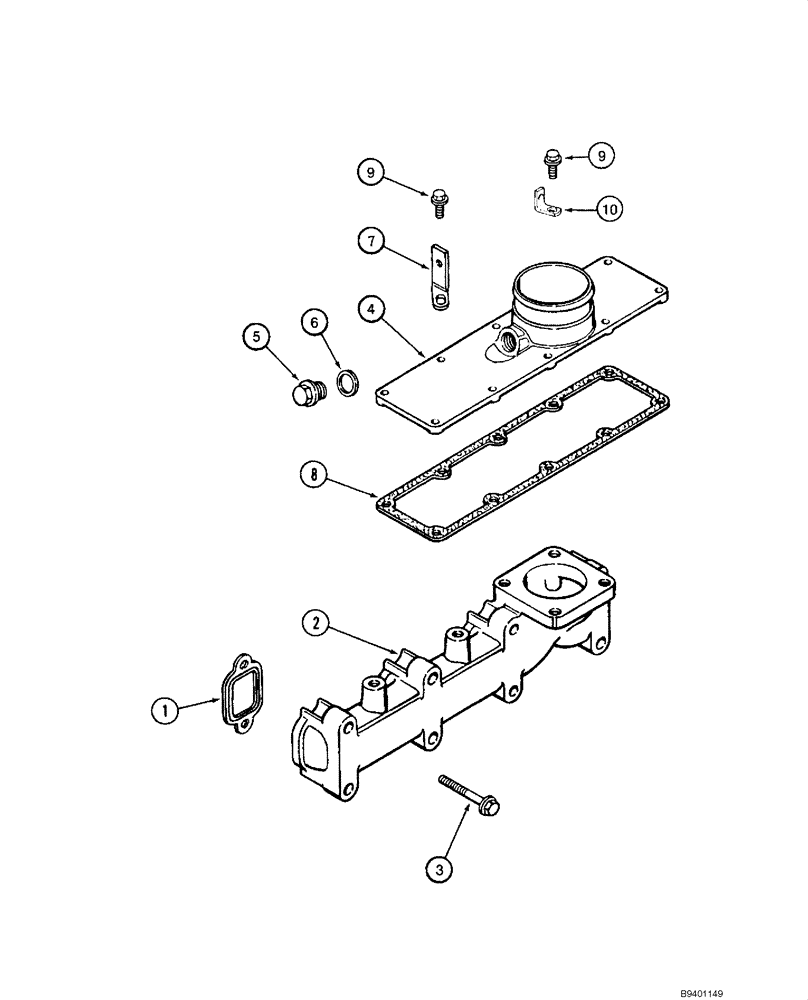

Запчасти Case IH 1840 (02-11) - MANIFOLDS, 4-390 ENGINE (02) - ENGINE

1

J905443

MANIFOLD GASKET

Exhaust Manifold; No Longer Available, Order J927154

4шт.

1

J927154

GASKET,0.38mm Thk

4шт.

2

J901223

MANIFOLD

Exhaust

1шт.

3

854-10065

BOLT,Hvy Hex, M10 x 65mm, Cl 10.9

8шт.

A77415

COVER

Intake Manifold; No Longer Available, Order Components Separately; Incl. 4 - 6

1шт.

4

J904340

COVER

Intake

1шт.

5

J907185

PLUG

Manifold

1шт.

6

J906773

WASHER

1шт.

7

J919292

SUPPORT

Fuel Tube; See Figure 03-01, REF 50; No Longer Available, Order J930688

1шт.

7

J930688

SUPPORT

1шт.

8

J914028

GASKET

Intake Manifold; No Longer Available; Order J938153

1шт.

8

J938153

MANIFOLD GASKET,0.8mm Thk

1шт.

9

J918109

FLANGE BOLT,Hex, M8 x 1.25 x 25mm

Intake Manifold, Replaces J904341

10шт.

10

J919294

SUPPORT

Fuel Tube; See Figure 03-01, REF 45; No Longer Available, Order J930689

1шт.

10

J930689

SUPPORT

1шт.
