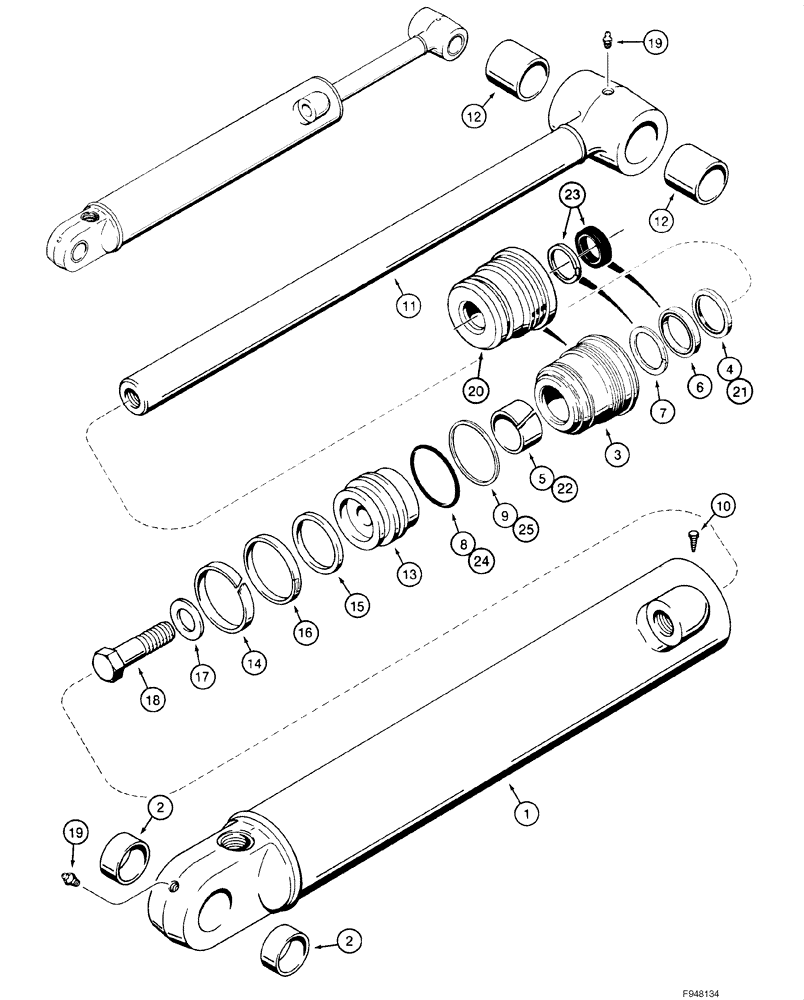

Запчасти Case IH 1840 (08-59) - CYLINDER ASSY - BACKHOE BUCKET CYLINDER (D125) (08) - HYDRAULICS

1346397C2

CYLINDER ASSY.

2-3/4 (70) ID x 22 in (559 mm); Backhoe; Bucket; Incl. 1- 25; No Longer Available, Order 402216A1; See Figure 08-59A

1шт.

1346398C2

TUBE

Cylinder; Incl. 1, 2

1шт.

1

NSS

NOT SOLD SEPARAT

Tube; Cylinder

1шт.

2

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

2шт.

1346404C1

GLAND

Cylinder; Incl. 3 - 9; Has Smooth Outer LipNo Longer Available, Order REF 20 And 1346409C2

1шт.

3

NSS

NOT SOLD SEPARAT

Gland; Cylinder

1шт.

4

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

Piston Rod

1шт.

5

G102424

BUSHING,38.1mm ID x 41.17mm OD x 25.15mm L

1шт.

6

G107921

SEAL,38.07mm ID x 50.93mm OD x 10.69mm Thk

Piston Rod; Wide; With O-ring

1шт.

6

G100776

SEAL

Piston Rod; Service Option; Severe Heat Or Cold

1шт.

7

G109093

SEAL,37.72mm ID x 50.98mm OD x 3.05mm Thk

Piston Rod; Narrow

1шт.

8

238-5230

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

1шт.

9

G32129

BACK-UP RING,63.25mm ID x 69.35mm OD x 1.4mm Thk

1шт.

10

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

1шт.

1346405C1

PISTON ROD

1-1/2 in (38 mm); Incl. 11, 12

1шт.

11

NSS

NOT SOLD SEPARAT

Rod, piston, 38 mm

1шт.

12

D31141

BUSHING,38.33mm ID x 47.63mm OD x 41.15mm L

1-5/8 in (41 mm)

2шт.

13

1346408C1

JACK PISTON

Cylinder

1шт.

14

G105187

RING

Piston

1шт.

15

G104439

RING

1шт.

16

G104454

SEALING RING,Locking, 65.89mm ID x 71.02mm OD x 6.96mm Thk

Piston; Expandable; Outer

1шт.

17

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

1шт.

18

25863R1

BOLT,Hex, 3/4" - 16 x 2 1/2", Gr 8

1шт.

19

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

NSS

NOT SOLD SEPARAT

Gland Assy; Cylinder; Incl. 20 - 25

1шт.

20

1346403C2

GLAND

Cylinder

1шт.

21

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

Piston Rod

1шт.

22

G102424

BUSHING,38.1mm ID x 41.17mm OD x 25.15mm L

1шт.

23

1542874C1

SEAL KIT,38.1mm Rod

Incl 23A, 23B; Not Serviced Separately, Order 1346409C2

1шт.

23a

1542997C1

SEALING RING

Not Serviced Separately, Order 1346409C2

1шт.

23b

NSS

NOT SOLD SEPARAT

Seal; Not Serviced Separately, Order 1346409C2

1шт.

24

238-5230

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

1шт.

25

G32129

BACK-UP RING,63.25mm ID x 69.35mm OD x 1.4mm Thk

1шт.

1346409C2

SEAL KIT

Incl. 4, 5, 6 (G107921), 7 - 9, 14 - 16, 21 - 23, 24, 25

1шт.
