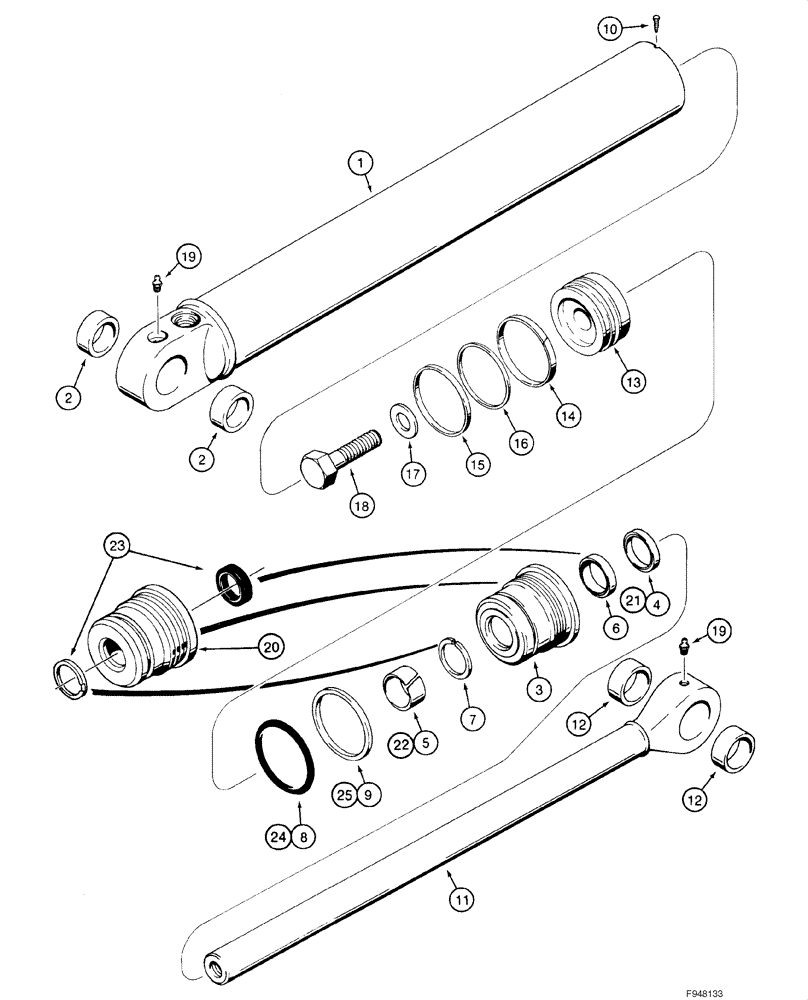

Запчасти Case IH 1840 (08-58) - CYLINDER ASSY - BACKHOE BOOM CYLINDER (D125) (08) - HYDRAULICS

1346450C2

CYLINDER ASSY.

3 (76) ID x 21-11/16 in (551 mm); Backhoe; Boom; Incl. 1 - 25; No Longer Available, See Figure 08-58A

1шт.

1346451C1

TUBE

Cylinder; Incl. 1, 2

1шт.

1

NSS

NOT SOLD SEPARAT

Tube; Cylinder

1шт.

2

D30930

BUSHING,38.33mm ID x 47.63mm OD x 17.53mm L

1-1/2 ID x 1-7/8 OD x 11/16 in

2шт.

1346416C1

GLAND

Cylinder; Has Smooth Outer Lip; Incl. 3 - 9; No Longer Available, Order REF 20 And 1543256C1

1шт.

3

NSS

NOT SOLD SEPARAT

Gland; Cylinder

1шт.

4

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

Piston Rod

1шт.

5

G102424

BUSHING,38.1mm ID x 41.17mm OD x 25.15mm L

1шт.

6

G107921

SEAL,38.07mm ID x 50.93mm OD x 10.69mm Thk

Piston Rod; Wide; With O-ring

1шт.

6

G100776

SEAL

Piston Rod; Service Option; Severe Heat Or Cold

1шт.

7

G109093

SEAL,37.72mm ID x 50.98mm OD x 3.05mm Thk

Piston Rod; Narrow

1шт.

8

238-5231

O-RING,0.139" Thk x 2.609" ID, -231, Cl 5, 75 Duro

1шт.

9

G109298

RING,69.47mm ID x 75.57mm OD x 1.4mm Thk

1шт.

10

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

1шт.

1346455C2

PISTON ROD

1-1/2 in (38 mm); Incl. 11, 12

1шт.

11

NSS

NOT SOLD SEPARAT

Rod, 38 mm

1шт.

12

D30930

BUSHING,38.33mm ID x 47.63mm OD x 17.53mm L

1-1/2 ID x 1-7/8 OD x 11/16 in

2шт.

13

G108518

PISTON

Cylinder

1шт.

14

G100449

WEAR RING,Split, 69.85mm ID x 76.2mm OD x 9.52mm Thk

Piston

1шт.

15

G102288

SEAL,Locking, 71.71mm ID x 76.43mm OD x 6.96mm Thk

Piston

1шт.

16

G100444

SEALING RING,Square, 5.28mm Thk x 62.61mm ID

1шт.

17

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

1шт.

18

25863R1

BOLT,Hex, 3/4" - 16 x 2 1/2", Gr 8

1шт.

19

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

20

1346417C1

GLAND

Cylinder; Incl. 21 - 25; Has Identification Groove On Outer Lip

1шт.

NSS

NOT SOLD SEPARAT

Gland Assy; Cylinder

1шт.

21

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

Piston Rod; Outer

1шт.

22

G102424

BUSHING,38.1mm ID x 41.17mm OD x 25.15mm L

1шт.

23

1542874C1

SEAL KIT,38.1mm Rod

Incl 23A, 23B; Not Serviced Separately; No Longer Available, Order 1543256C1

1шт.

23a

1542997C1

SEALING RING

Not Serviced Separately, Order 1543256C1

1шт.

23b

NSS

NOT SOLD SEPARAT

Seal; Not Serviced Separately, Order 1543256C1

1шт.

24

238-5231

O-RING,0.139" Thk x 2.609" ID, -231, Cl 5, 75 Duro

1шт.

25

G109298

RING,69.47mm ID x 75.57mm OD x 1.4mm Thk

1шт.

1543256C1

SEAL KIT,38.1mm Rod, 76.2mm Bore

Incl 4, 5, 6 (G107921), 7 - 9, 14 - 16, 21 - 23, 24, 25

1шт.
