Запчасти Case IH 1840 (08-57A) - VALVE, CONTROL - BACKHOE (NORTH AMERICA) (08) - HYDRAULICS

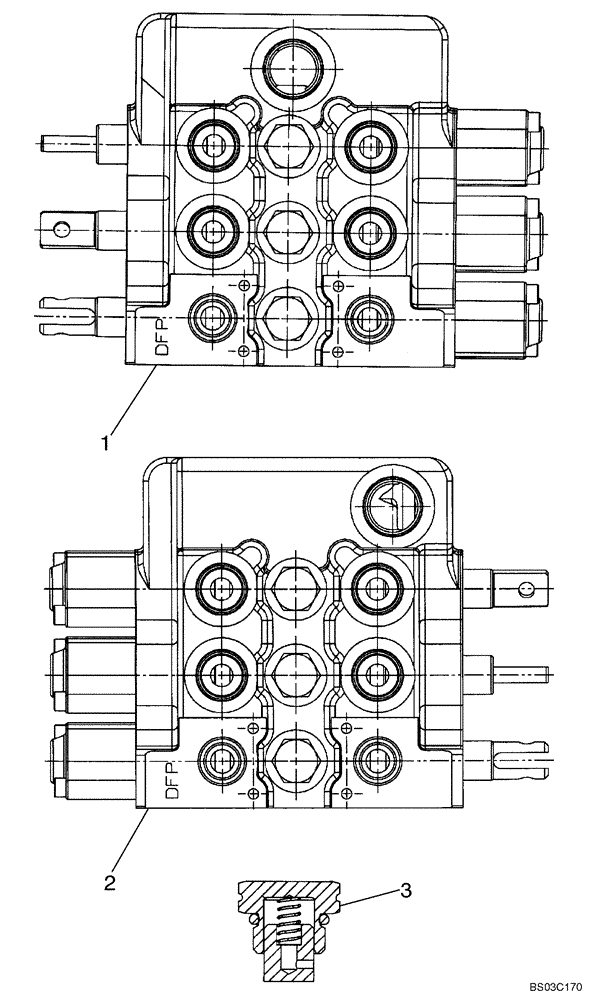

Схема запчастей Case IH 1840 - (08-57A) - VALVE, CONTROL - BACKHOE (NORTH AMERICA) (08) - HYDRAULICS
3
2
1

Артикул

Название

Примечание

Количество

87400034

VALVE

Control; Backhoe; Incl. 1 - 2; Replaces H764500

1шт.

87400023

VALVE

Control; Backhoe; Replaces H674300; Incl. 1, 2

1шт.

1

87407874

HYD VALVE SECTION

Inlet; Incl. 3; Component Parts Not Available At Time Of Printing

1шт.

2

87407875

HYD VALVE SECTION

Outlet; Incl. 3; Component Parts Not Available At Time Of Printing

1шт.

3

87407876

KIT

Load Check; Component Parts Not Available At Time Of Printing

1шт.

Выбрано товаров: 5
