(08-53) - HYDRAULIC SYSTEM - STABILIZER CYLINDER (D125)

Запчасти Case IH 1840 (08-53) - HYDRAULIC SYSTEM - STABILIZER CYLINDER (D125) (08) - HYDRAULICS

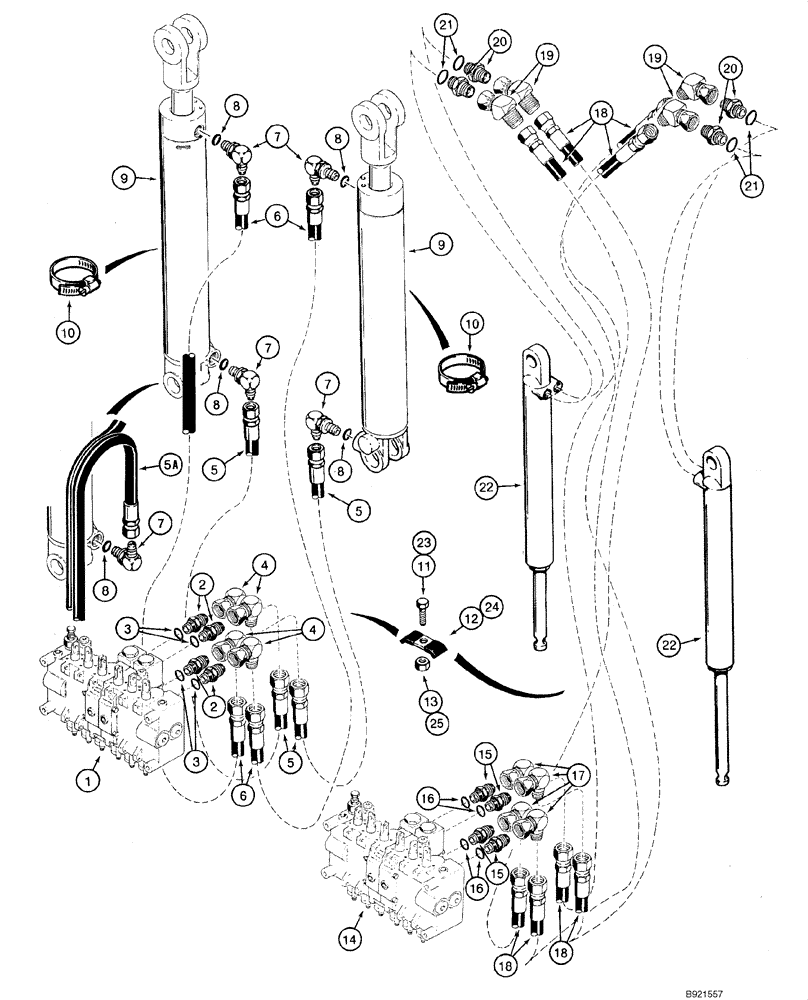

Схема запчастей Case IH 1840 - (08-53) - HYDRAULIC SYSTEM - STABILIZER CYLINDER (D125) (08) - HYDRAULICS
3
25
2
6
7
19
12
8
22
18
13
16
24
17
20
5
1
20
3
22
19
8
4
4
11
8
5
8
7
18
14
21
9
5a
9
7
15
8
15
10
2
16
5
23
21
6
10
7
18
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

FOLD DOWN STABILIZERS

1шт.

1

H674500

VALVE

Control; Backhoe; Fold Down Stabilizers; See Figure 08-55 -08-57

1шт.

1

87400034

VALVE

Control; Backhoe; Fold Down Stabilizers; Replaces H764500; See Figure 08-57A

1шт.

2

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

9/16-18 flare x 3/4-16 in O-ring boss; Incl. 3

4шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

4

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

4шт.

5

129908C1

HYDRAULIC HOSE

55 in (1397 mm); To Closed End Of Stabilizer Cylinder; No Longer Available, Order 139517C1 And Reroute As Shown

2шт.

5a

139517C1

HYDRAULIC HOSE

80 in (2032 mm); To Closed End Of Stabilizer Cylinder

2шт.

6

139517C1

HYDRAULIC HOSE

80 in (2032 mm); To Rod End Of Stabilizer Cylinder

2шт.

7

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

Adj., Incl. 8

4шт.

8

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

9

101643A1

CYLINDER ASSY.,Double Acting, 35.1mm Rod, 406.4mm Stroke

3 (76) ID x 16 in (406 mm); See Figure 08-47

2шт.

10

214-1456

HOSE CLAMP,#56, 3.06" - 4", Type F Worm

3-1/16 - 4 in

2шт.

11

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

2шт.

12

R17319

CLAMP

2шт.

13

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

VERTICAL STABILIZERS

1шт.

14

H674500

VALVE

Control; Backhoe; Vertical Stabilizers; See Figure 08-55 -08-57

1шт.

14

87400034

VALVE

Control; Backhoe; Vertical Stabilizers; Replaces H764500; See Figure 08-57A

1шт.

15

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

9/16-18 flare x 3/4-16 in O-ring boss; Incl. 16

4шт.

16

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

17

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

4шт.

18

139517C1

HYDRAULIC HOSE

80 in (2032 mm); Valve To Stabilizer Cylinder

4шт.

19

218-5172

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Female JIC

4шт.

20

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. 21

4шт.

22

H514117

CYLINDER BLOCK

2 (51) ID x 12 in (305 mm); See Figure 08-61

2шт.

23

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

2шт.

24

R17319

CLAMP

2шт.

25

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

21

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
