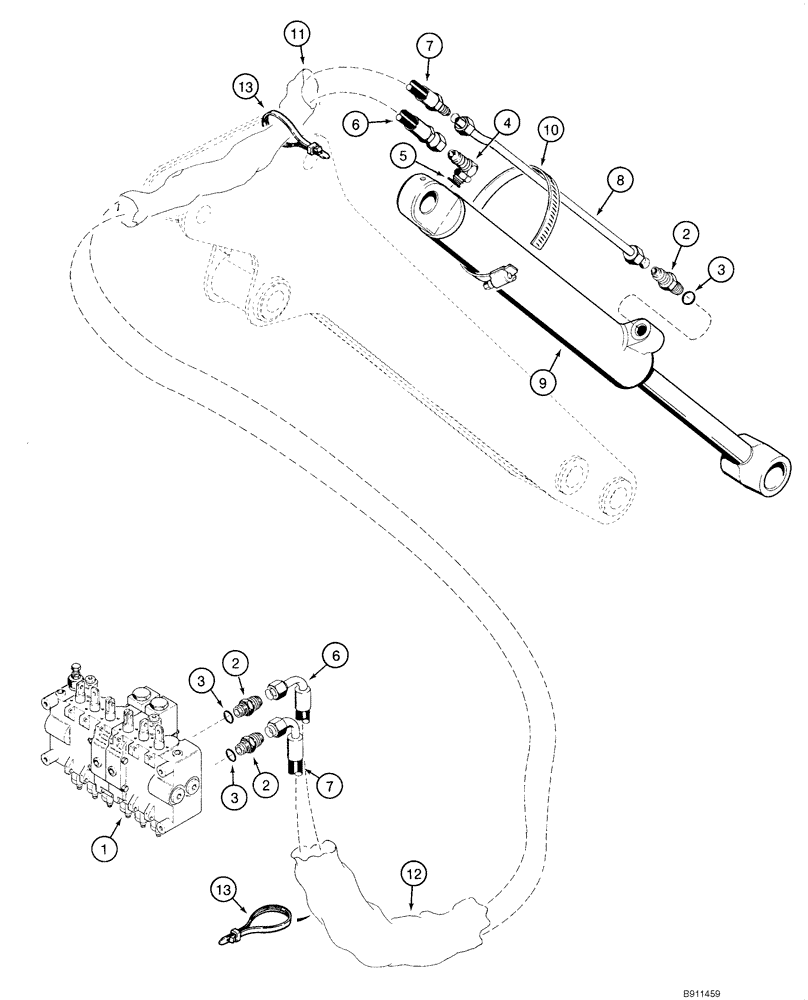

Запчасти Case IH 1840 (08-52) - HYDRAULIC SYSTEM - BACKHOE BUCKET CYLINDER (D125) (08) - HYDRAULICS

1

H674500

VALVE

Control; Backhoe; See Figure 08-55 -08-57

1шт.

1

87400034

VALVE

Control; Backhoe; Replaces H764500; See Figure 08-57A

1шт.

2

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

3/4-16 in flare x O-ring boss; Incl. 3

3шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

4

H439269

ELBOW

90 degree; Incl. 5

1шт.

5

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

6

H438685

HOSE

141-3/4 in (3600 mm); To Closed End Of Bucket Cylinder

1шт.

7

H438227

HOSE

145-5/8 in (3700 mm); To Tube At Rod End Of Bucket Cylinder

1шт.

8

H674567

PIPE,12.7 mm OD x 597 mm L

To Rod End Of Bucket Cylinder

1шт.

9

1346397C2

CYLINDER ASSY.

2-3/4 (70) ID x 22 in (559 mm); See Figure 08-59; No Longer Available, Order 402216A1

1шт.

9

402216A1

CYLINDER ASSY.,Double Acting, 44.45mm Rod, 552.4mm Stroke

70 ID x 559 mm strk; See Figure 08-59A

1шт.

10

214-1456

HOSE CLAMP,#56, 3.06" - 4", Type F Worm

3-1/16 - 4 in

1шт.

11

D132054

SLEEVE

19-11/16 in (500 mm); Upper Boom; Cut From D134728

1шт.

12

H439063

SLEEVE

Hose Protector; Lower Boom

1шт.

13

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

3шт.

D134728

TUBE

28-1/2 in (725 mm)

1шт.
