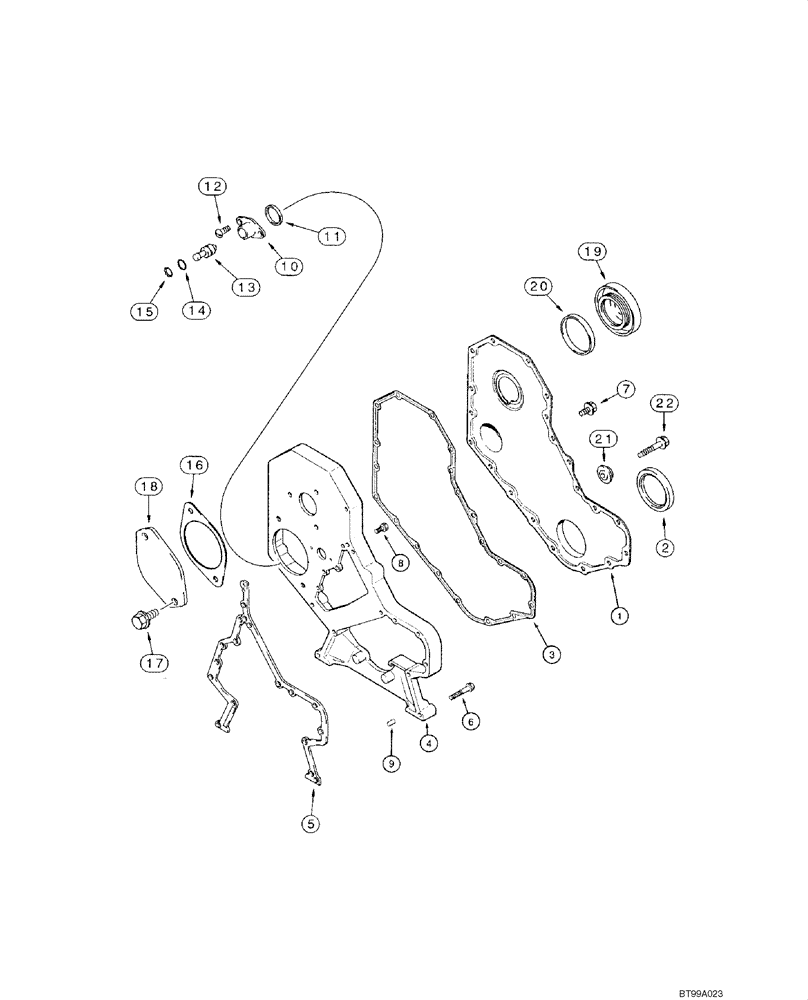

Запчасти Case IH 1840 (02-10) - FRONT GEAR COVER, 4-390 EMISSIONS CERTIFIED ENGINE (INJECTION PUMP J935679) (02) - ENGINE

1

J286312

COVER

Front Gear; Replaces J903794

1шт.

2

NSS

NOT SOLD SEPARAT

Oil; Crankcase Front; Order A77889; See Figure 02-28, REF 13

1шт.

3

J914385

GASKET,1.02mm Thk

Front Cover; Used With J903794

1шт.

4

J920758

HOUSING

Timing Gear

1шт.

5

J938156

GASKET,0.79mm Thk

Gear Housing; Replaces J931351

1шт.

6

845-8050

BOLT,Hvy Hex, M8 x 50mm, Cl 8.8

10шт.

7

J924962

FLANGE BOLT

8 - 1.25 x 16 mm; External; Retains REF 1 To REF 4

11шт.

8

J926846

FLANGE BOLT

8 - 1.25 x 20 mm; 10.9; Internal; Retains REF 4 To Block

5шт.

9

J900257

PIN,10.01mm OD x 16mm L

16 mm; Locating; Used With J903794

2шт.

10

J919683

HOUSING

Timing Pin Housing

1шт.

11

J915772

SEAL,Square, 1.68mm Thk x 29.87mm ID, -25

SEALRING Timing Pin Housing

1шт.

12

J907998

SCREW,M5 x 0.8 x 17mm, Cl 8.8

Used with J903794

2шт.

13

J903924

PIN,18.87mm OD x 55mm L

Timing Pin

1шт.

14

J913994

O-RING

1шт.

15

J904849

SNAP RING,0.875", Int, #87

Timing pin

1шт.

16

J938655

GASKET,1.27mm Thk

Access Cover Plate; Replaces J929751

1шт.

17

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

2шт.

18

J914868

COVER

Access Cover; Flat

1шт.

19

J903463

PLUG,M63 x 5

Front Access; Fuel Pump Drive Gear

1шт.

20

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

Front Access Cover; Fuel Pump Drive Gear

1шт.

21

J912772

RETAINER

1шт.

22

845-8060

BOLT,Hvy Hex, M8 x 60mm, Cl 8.8

1шт.
