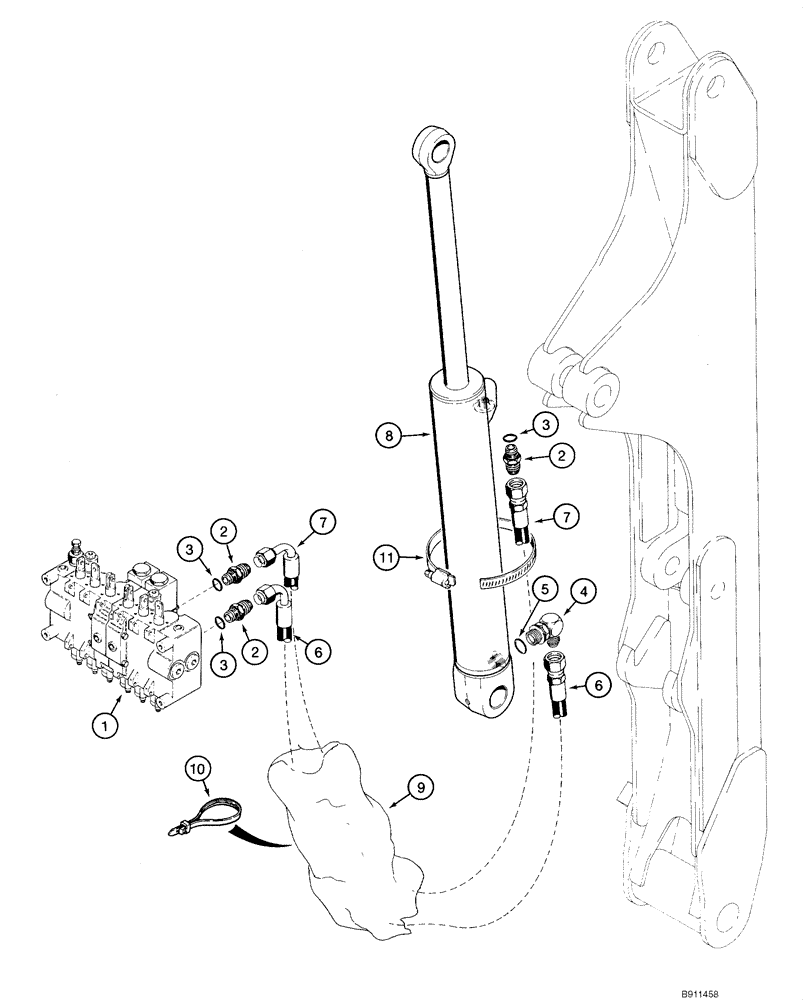

Запчасти Case IH 1840 (08-51) - HYDRAULIC SYSTEM - BACKHOE DIPPER CYLINDER (D125) (08) - HYDRAULICS

1

H674500

VALVE

Control; Backhoe; See Figure 08-55 -08-57

1шт.

1

87400034

VALVE

Control; Backhoe; Replaces H764500; See Figure 08-57A

1шт.

2

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

3/4-16 in flare x O-ring boss; Incl. 3

3шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

4

H439269

ELBOW

90 degree; Incl. 5

1шт.

5

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

6

H438194

HOSE

84-5/8 in (2150 mm); To Closed End Of Dipper Cylinder

1шт.

7

H438193

HOSE

108-1/4 in (2750 mm); To Rod End Of Dipper Cylinder

1шт.

8

1346411C3

CYLINDER ASSY.,Double Acting, 38.1mm Rod, 497.8mm Stroke

3 (76) ID x 19-5/8 in (498 mm); See Figure 08-60A; Replaces 1346411C2, See Figure 08-60

1шт.

9

H439063

SLEEVE

Hose Protector

1шт.

10

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

2шт.

11

214-1460

HOSE CLAMP,#60, 3.31" - 4.25", Type F Worm

1шт.
