Запчасти Case IH 1840 (08-50) - HYDRAULIC SYSTEM - BACKHOE BOOM CYLINDER (D125) (08) - HYDRAULICS

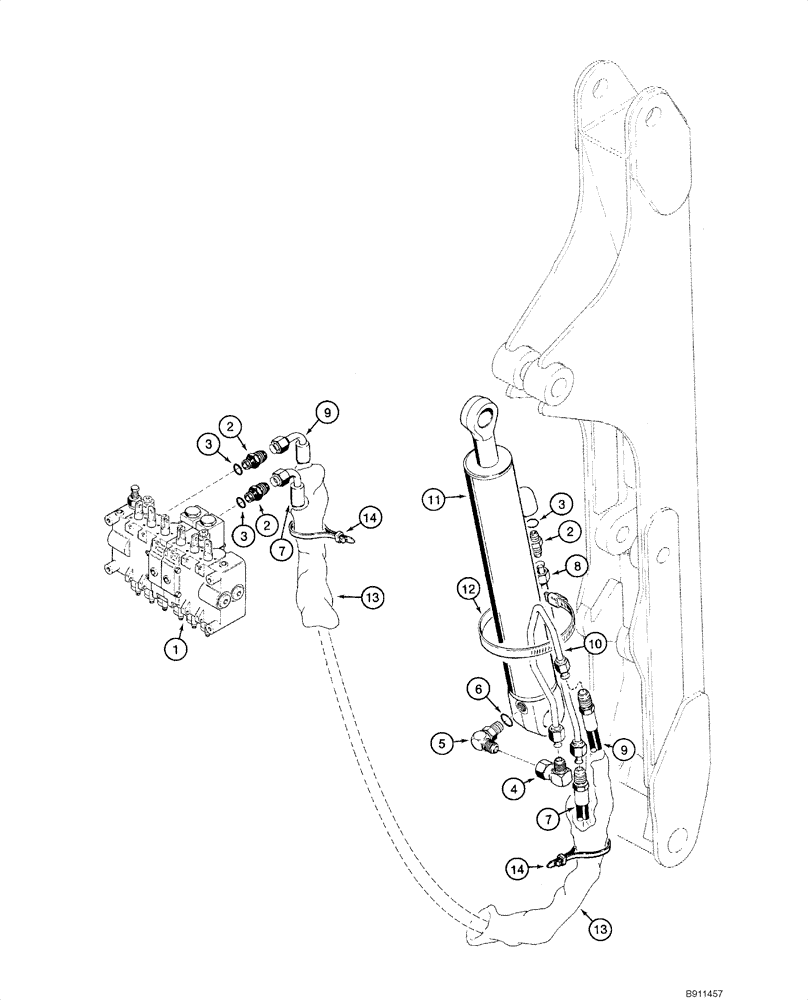

Схема запчастей Case IH 1840 - (08-50) - HYDRAULIC SYSTEM - BACKHOE BOOM CYLINDER (D125) (08) - HYDRAULICS
5
3
1
7
14
12
10
8
9
11
13
14
7
6
2
13
3
3
2
2
4
9

Артикул

Название

Примечание

Количество

1

H674500

VALVE

Control; Backhoe; See Figure 08-55 -08-57

1шт.

1

87400034

VALVE

Control; Backhoe; Replaces H764500; See Figure 08-57A

1шт.

2

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

3/4-16 in flare x O-ring boss; Incl. 3

3шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

4

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

1шт.

5

H439269

ELBOW

90 degree; Incl. 6

1шт.

6

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

7

H438195

HOSE

65-15/16 in (1675 mm); To Tube At Rod End Of Boom Cylinder

1шт.

8

H674565

TUBE,0.5" OD

To Rod End Of Boom Cylinder

1шт.

9

H438684

HOSE

67-15/16 in (1725 mm); To Tube At Closed End Of Boom Cylinder

1шт.

10

H674566

TUBE,0.5" OD

To Closed End Of Boom Cylinder

1шт.

11

1346450C2

CYLINDER ASSY.

3 (76) ID x 21-11/16 in (551 mm); See Figure 08-58; No Longer Available, Order 305352A1

1шт.

11

305352A1

CYLINDER ASSY.,Double Acting, 38.1mm Rod, 551mm Stroke

3 (76) ID x 21-11/16 in (551 mm); See Figure 08-58A

1шт.

12

214-1460

HOSE CLAMP,#60, 3.31" - 4.25", Type F Worm

1шт.

13

H439063

SLEEVE

Hose Protector

1шт.

14

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

2шт.

Выбрано товаров: 16
