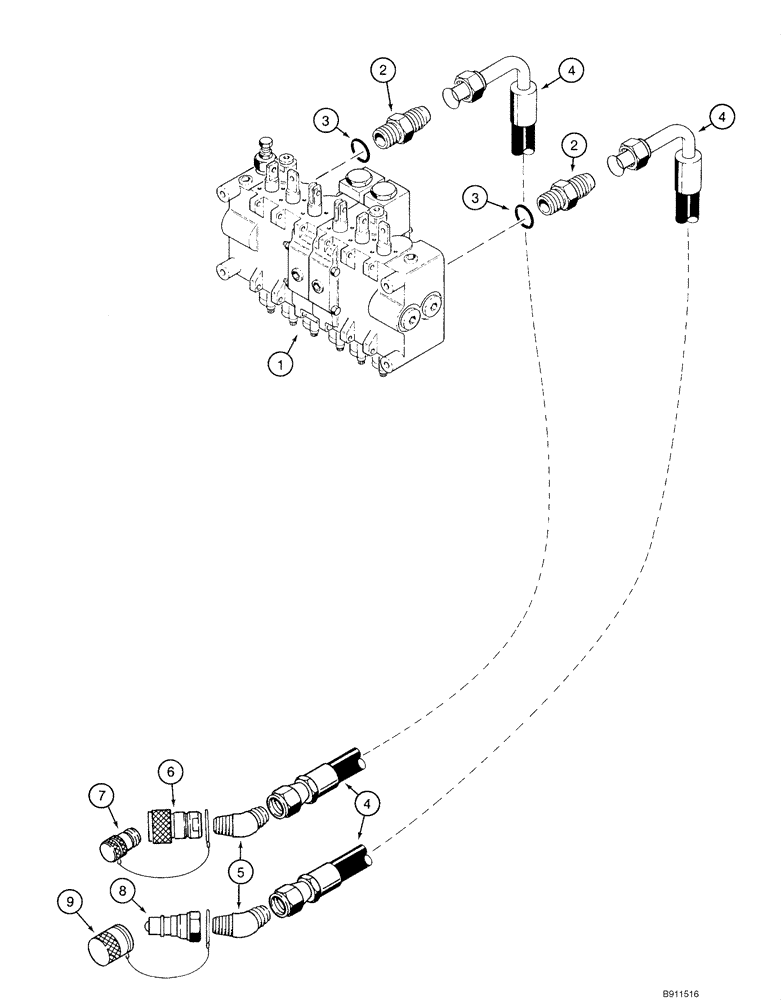

Запчасти Case IH 1840 (08-49) - HYDRAULIC SYSTEM - BACKHOE SUPPLY AND RETURN (D125) (08) - HYDRAULICS

1

H674500

VALVE

Control; Backhoe; See Figure 08-55 -08-57

1шт.

1

87400034

VALVE

Control; Backhoe; Replaces H764500; See Figure 08-57A

1шт.

2

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8-14 in flare x O-ring boss; Incl. 3

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

4

H438230

HOSE ASSY.

64-15/16 in (1650 mm); At Control Valve

2шт.

5

218-535

ELBOW,45 Degree, 7/8"-14, 37 Degree x 7/8"-14, NPTF

45 degree 7/8-14 flare x 1/2 in PT

2шт.

6

H436396

COUPLING

Female; Quick Disconnect

1шт.

7

T40274

CAP

Female; Quick Disconnect

1шт.

8

1272770C2

COUPLING, BREAK AWAY

Male; Quick Disconnect

1шт.

9

T40759

PLUG

Male; Quick Disconnect

1шт.
