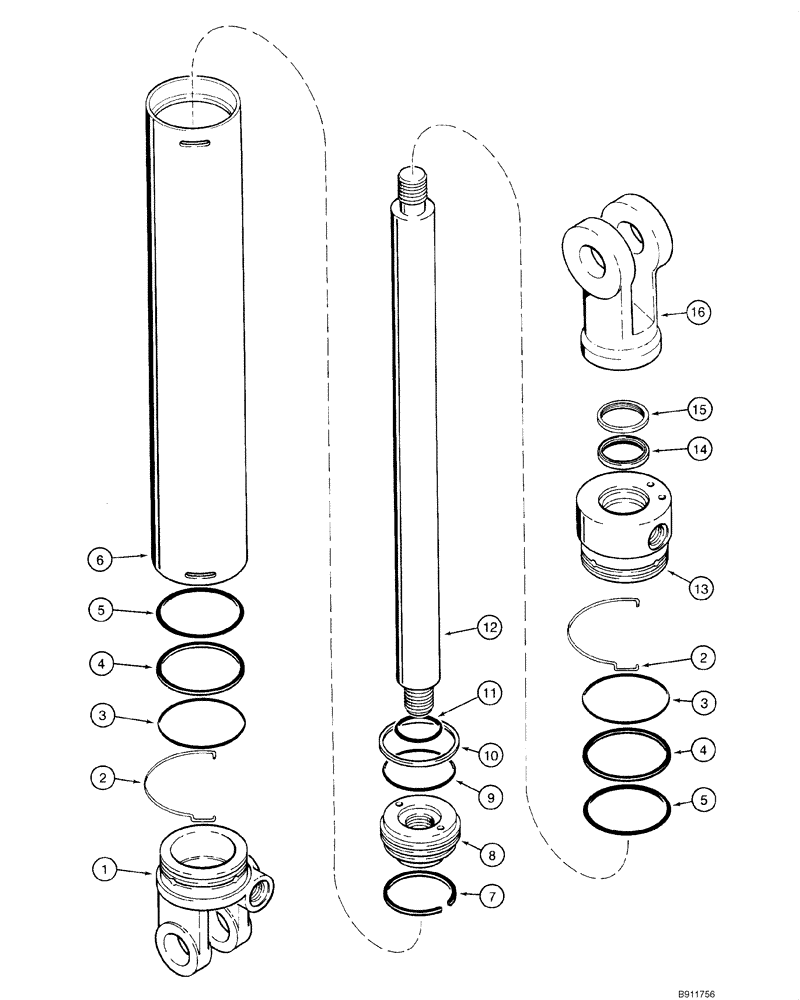

Запчасти Case IH 1840 (08-47) - CYLINDER ASSY - STABILIZER (D100, D100XR, D125) (08) - HYDRAULICS

101643A1

CYLINDER ASSY.,Double Acting, 35.1mm Rod, 406.4mm Stroke

3 (76) ID x 16 in (406 mm); Stabilizer; Fold Down Stabilizer; Incl. 1 - 16

2шт.

1

102681A1

JACK HEAD

Base End

1шт.

2

H436693

LOCKING RING

2шт.

3

H436690

SEAL

Cylinder Tube

2шт.

4

H745760

WASHER

2шт.

5

238-5232

O-RING,0.139" Thk x 2.734" ID, -232, Cl 5, 75 Duro

2шт.

6

102683A1

TUBE

1шт.

7

H436691

GASKET

1шт.

8

102682A1

PISTON

1шт.

9

238-6231

O-RING,0.139" Thk x 2.609" ID, -231, Cl 6, 90 Duro

1шт.

10

H120188

RING

1шт.

11

T52486

O-RING

Piston Rod

1шт.

12

H436686

PISTON ROD

1шт.

13

102686A1

GLAND

Cylinder End

1шт.

14

H436694

SEAL

1шт.

15

H436692

SEAL

Piston Rod

1шт.

16

102685A1

JACK HEAD

Piston Rod

1шт.

H673837

GASKET KIT

Seal Repair; Incl. 2- 5, 7, 9 - 11, 14, 15

1шт.

403642A1

SEAL

Services 101643A1 With Date Code D And After; Not Illustrated

1шт.
