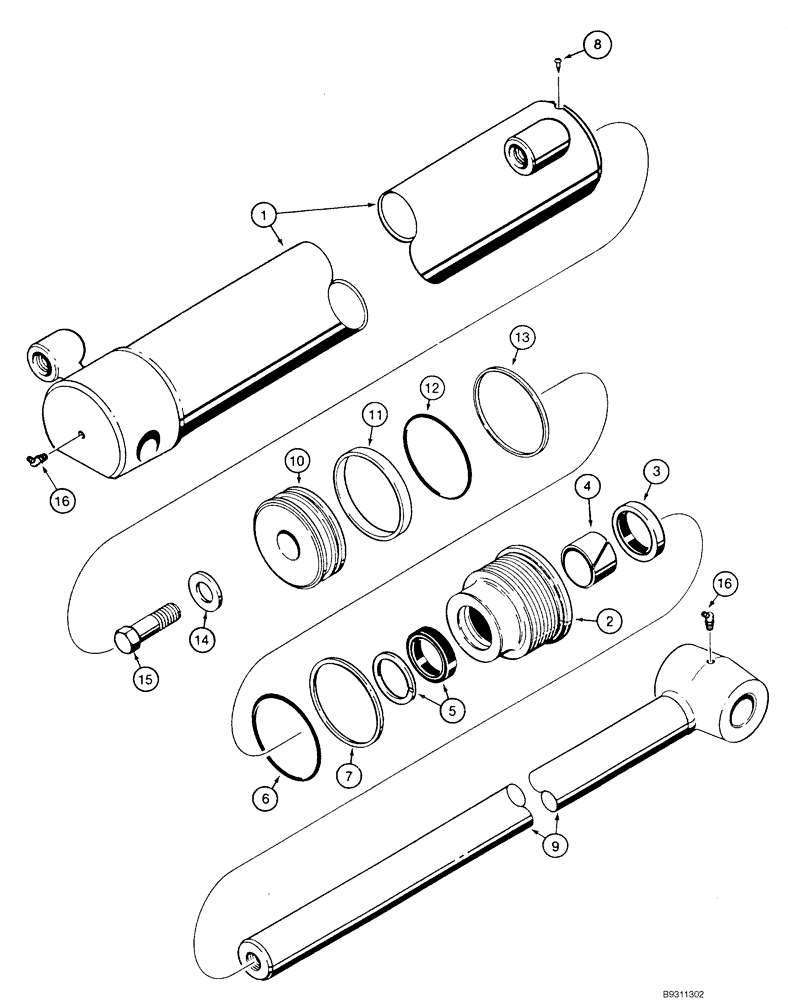

Запчасти Case IH 1840 (08-45) - CYLINDER ASSY - BACKHOE DIPPER (D100XR) (08) - HYDRAULICS

G109376

CYLINDER BLOCK

3 (76) ID x 23-13/16 in (605 mm); Backhoe Dipper; Incl. 1 - 9

1шт.

1

G109377

TUBE,76.2 mm DIA x 759 mm L

Cylinder; Incl. 2 - 9

1шт.

NSS

NOT SOLD SEPARAT

Gland Assy; Cylinder; Incl. 2 - 7; Has Identification Groove On Outer Lip

1шт.

2

1542962C1

GLAND

Cylinder; Replaces G104222

1шт.

3

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

Piston Rod

1шт.

4

G102424

BUSHING,38.1mm ID x 41.17mm OD x 25.15mm L

1шт.

5

1542874C1

SEAL KIT,38.1mm Rod

Not Serviced Separately; No Longer Available, Order 1543313C1

1шт.

5a

1542997C1

SEALING RING

Not Serviced Separately, Order 1543313C1

1шт.

5b

NSS

NOT SOLD SEPARAT

Seal; Not Serviced Separately, Order 1543313C1

1шт.

6

238-5234

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

1шт.

7

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

1шт.

8

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

1шт.

9

G34179

ROD

1-1/2 in (38 mm) diameter

1шт.

NSS

NOT SOLD SEPARAT

Piston Assy; Cylinder; Incl. 10 - 16

1шт.

10

G104108

PISTON

Cylinder

1шт.

11

G100449

WEAR RING,Split, 69.85mm ID x 76.2mm OD x 9.52mm Thk

1шт.

12

238-5230

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

1шт.

13

G32034

RING

Piston

1шт.

14

S94643

WASHER,19.43mm ID x 38.1mm OD x 6.35mm Thk

1шт.

15

28-1232

BOLT,Hex, 3/4" - 16 x 2", Gr 8

1шт.

16

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

1шт.

1543313C1

SEAL KIT

Incl. 3 - 5, 6 - 9, 12, 13

1шт.
