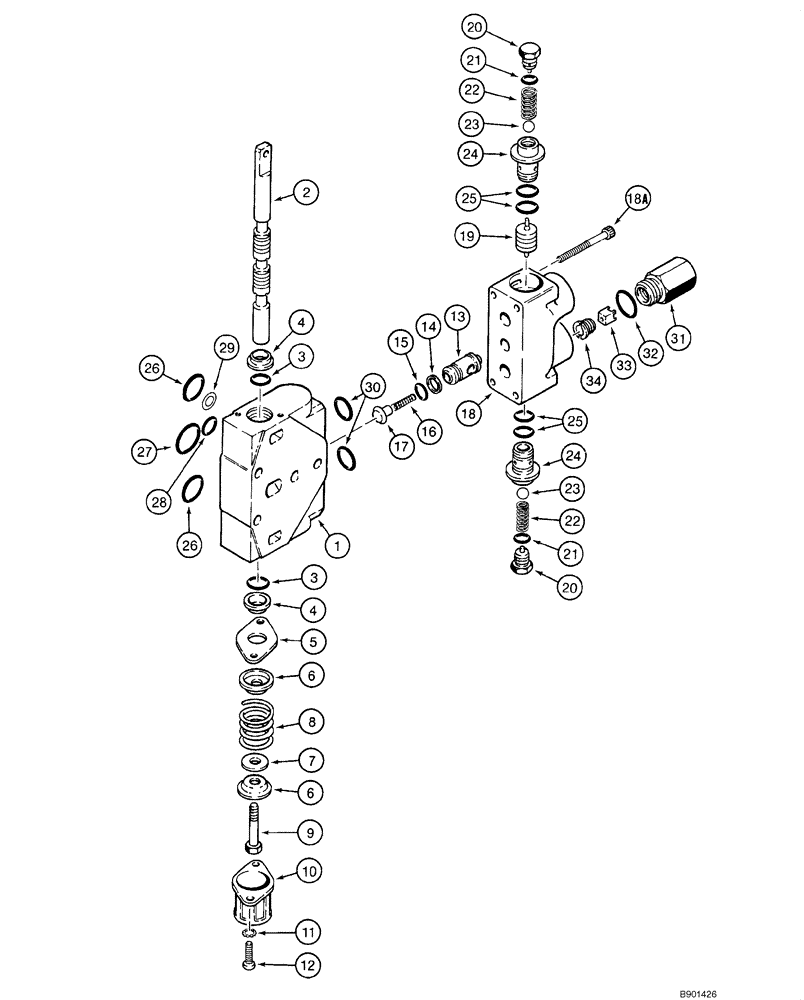

Запчасти Case IH 1840 (08-40) - VALVE, CONTROL - BACKHOE (KONTAK), D100, D100XR (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
H672636
VALVE
Control; Backhoe; Manufactured By Kontak; Incl. 08-36 - 08-40; No Longer Available, Order H674300, See Figure 08-41 - 08-43
1шт.
H674592
VALVE
Stabilizer; Incl. 1 - 34
2шт.
1
NSS
NOT SOLD SEPARAT
Body; Stabilizer Section
1шт.
2
NSS
NOT SOLD SEPARAT
Spool; Stabilizer Section
1шт.
3
238-5114
O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro
2шт.
4
N14043
WIPER SEAL
2шт.
5
N14042
SHIN
1шт.
6
H401208
SEAT PLATE
2шт.
7
1329639C1
SPACER
Replaces H398677
1шт.
8
H401216
SPRING
1шт.
9
H401190
SCREW
1шт.
10
H438212
CAP
1шт.
11
493-41026
LOCK WASHER,Ext Tooth, 1/4"
2шт.
12
440-12512
SCREW,Cross Pan Hd, 1/4"-20 x 3/4"
2шт.
13
H438205
VALVE
Load Check
1шт.
14
N14047
GASKET
1шт.
16
H438206
SPRING
Load Check
1шт.
17
H438207
GUIDE
Load Check
1шт.
N14048
VALVE
Double Check; Incl. 18 - 25
1шт.
18
NSS
NOT SOLD SEPARAT
Body; Double Check Valve
1шт.
18a
61-32528
HEX SOC SCREW,1/4"-20 x 1 3/4"
4шт.
19
N14050
PILOT VALVE
Double Check Valve
1шт.
N14049
VALVE
Double Check Valve
2шт.
20
NSS
NOT SOLD SEPARAT
Plug; Double Check Valve
1шт.
21
238-6013
O-RING,0.07" Thk x 0.426" ID, -13, Cl 6, 90 Duro
7/16 ID x 1/16 in
1шт.
22
NSS
NOT SOLD SEPARAT
Spring; Double Check Valve
1шт.
23
NSS
NOT SOLD SEPARAT
Ball; Double Check Valve
1шт.
24
NSS
NOT SOLD SEPARAT
Body; Double Check Valve
1шт.
25
238-5015
O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro
2шт.
26
H438208
O-RING
Body; Medium
2шт.
27
H438209
O-RING
Body; Large
1шт.
28
H438210
O-RING
Body; Small
1шт.
29
H438211
SHIM
Body
1шт.
30
238-6017
O-RING,0.07" Thk x 0.676" ID, -17, Cl 6, 90 Duro
2шт.
H674020
RESTRICTOR
Load Check; Incl. 31 - 34
1шт.
31
NSS
NOT SOLD SEPARAT
Body; Restrictor
1шт.
32
H398685
O-RING
Restrictor
1шт.
33
H437218
VALVE
Restrictor
1шт.
34
NSS
NOT SOLD SEPARAT
Plug; Restrictor
1шт.
Выбрано товаров: 40
