Запчасти Case IH 1840 (08-39) - VALVE, CONTROL - BACKHOE (KONTAK), D100, D100XR (08) - HYDRAULICS

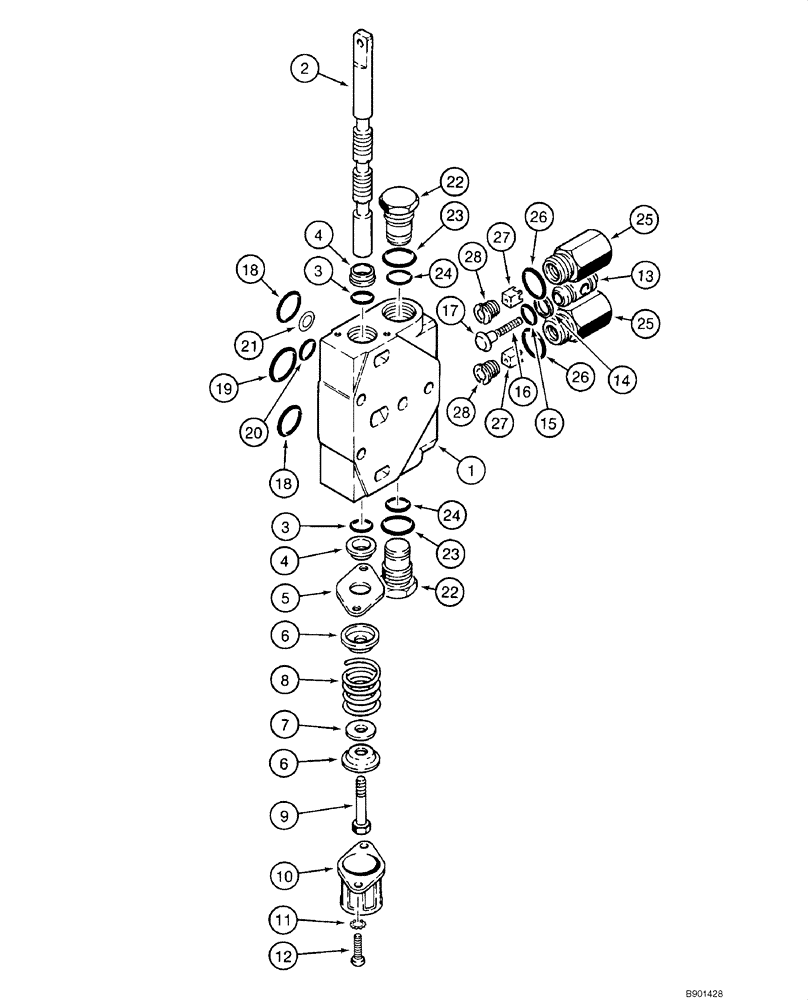

Схема запчастей Case IH 1840 - (08-39) - VALVE, CONTROL - BACKHOE (KONTAK), D100, D100XR (08) - HYDRAULICS
21
17
27
18
25
11
26
1
19
16
24
9
13
6
10
3
8
24
12
5
26
18
25
6
14
23
3
28
4
22
7
4
28
20
2
23
15
27
22

Артикул

Название

Примечание

Количество

H672636

VALVE

Control; Backhoe; Manufactured By Kontak; Incl. 08-36 - 08-40; No Longer Available, Order H674300, See Figure 08-41 - 08-43

1шт.

H674591

VALVE

Swing

1шт.

H674594

VALVE

Bucket; Incl. 1 - 28

1шт.

1

NSS

NOT SOLD SEPARAT

Body; Bucket And Swing Section

1шт.

2

NSS

NOT SOLD SEPARAT

Spool; Bucket And Swing Section

1шт.

3

238-5114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

2шт.

4

N14043

WIPER SEAL

2шт.

5

N14042

SHIN

1шт.

6

H401208

SEAT PLATE

2шт.

7

1329639C1

SPACER

Replaces H398677

1шт.

8

H401216

SPRING

1шт.

9

H401190

SCREW

1шт.

10

H438212

CAP

1шт.

11

493-41026

LOCK WASHER,Ext Tooth, 1/4"

2шт.

12

440-12512

SCREW,Cross Pan Hd, 1/4"-20 x 3/4"

2шт.

13

H438205

VALVE

Load Check

1шт.

14

N14047

GASKET

Load Check

1шт.

15

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

16

H438206

SPRING

Load Check

1шт.

17

H438207

GUIDE

Load Check

1шт.

18

H438208

O-RING

Body; Medium

2шт.

19

H438209

O-RING

Body; Large

1шт.

20

H438210

O-RING

Body; Small

1шт.

21

H438211

SHIM

Body

1шт.

N14057

PLUNGER ASSY.

Incl. 22 - 24

2шт.

22

NSS

NOT SOLD SEPARAT

Plug

1шт.

23

H398685

O-RING

Large

1шт.

24

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

H674019

ORIFICE

Load Check; Swing Section; Incl. 25 - 28

2шт.

25

NSS

NOT SOLD SEPARAT

Body; Restrictor

1шт.

26

H398685

O-RING

Restrictor

1шт.

27

H437221

VALVE

0,093 in; Restrictor

1шт.

28

NSS

NOT SOLD SEPARAT

Plug; Restrictor

1шт.

Выбрано товаров: 33
