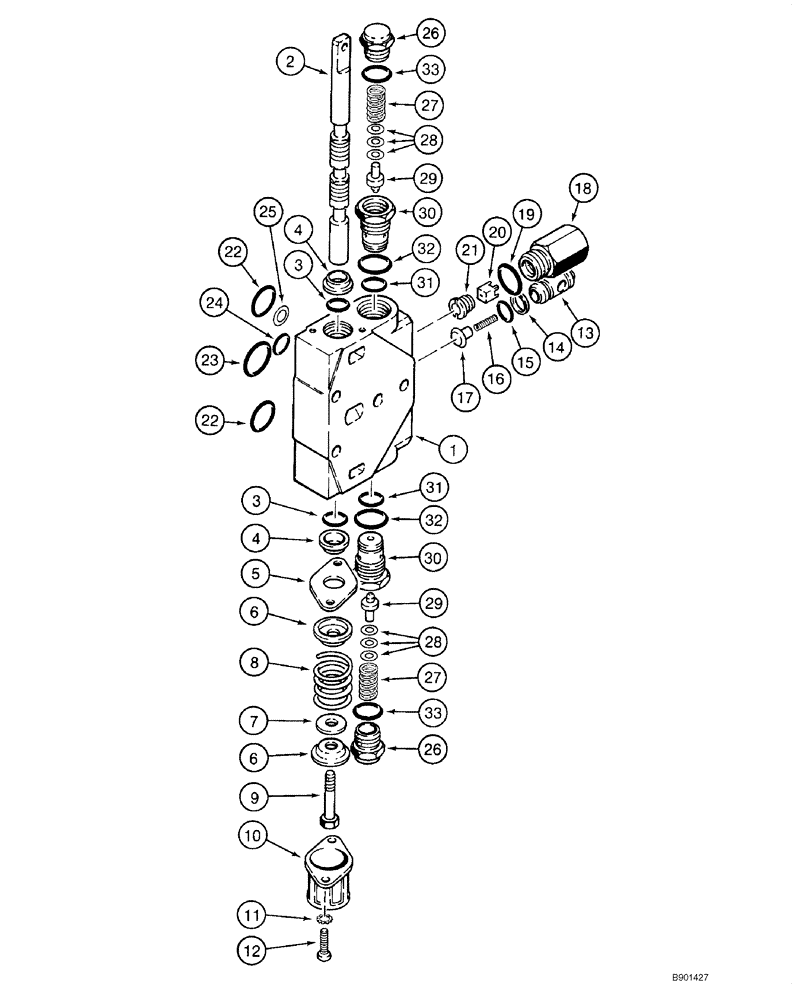

Запчасти Case IH 1840 (08-38) - VALVE, CONTROL - BACKHOE (KONTAK), D100, D100XR (08) - HYDRAULICS

H672636

VALVE

Control; Backhoe; Manufactured By Kontak; Incl. 08-36 - 08-40; No Longer Available, Order H674300, See Figure 08-41 - 08-43

1шт.

H674590

VALVE

Boom

1шт.

H674593

VALVE

Dipper; Incl. 1 - 33

1шт.

1

NSS

NOT SOLD SEPARAT

Body; Boom Or Dipper Section

1шт.

2

NSS

NOT SOLD SEPARAT

Spool; Boom Or Dipper Section

1шт.

3

238-5114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

2шт.

4

N14043

WIPER SEAL

2шт.

5

N14042

SHIN

1шт.

6

H401208

SEAT PLATE

2шт.

7

1329639C1

SPACER

Replaces H398677

1шт.

8

H401216

SPRING

1шт.

9

H401190

SCREW

1шт.

10

H438212

CAP

1шт.

11

493-41026

LOCK WASHER,Ext Tooth, 1/4"

2шт.

12

440-12512

SCREW,Cross Pan Hd, 1/4"-20 x 3/4"

2шт.

13

H438205

VALVE

Load Check

1шт.

14

N14047

GASKET

Load Check

1шт.

15

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

16

H438206

SPRING

Load Check

1шт.

17

H438207

GUIDE

Load Check

1шт.

H674020

RESTRICTOR

Load Check; Incl. 18 - 21

1шт.

18

NSS

NOT SOLD SEPARAT

Body; Restrictor

1шт.

19

H398685

O-RING

Restrictor

1шт.

20

H437218

VALVE

Restrictor

1шт.

21

NSS

NOT SOLD SEPARAT

Plug; Restrictor

1шт.

22

H438208

O-RING

Body; Medium

2шт.

23

H438209

O-RING

Body; Large

1шт.

24

H438210

O-RING

Body; Small

1шт.

25

H438211

SHIM

Body

1шт.

H674018

VALVE

Relief; Incl. 26 - 33

2шт.

26

NSS

NOT SOLD SEPARAT

Cap; Relief Valve

1шт.

27

NSS

NOT SOLD SEPARAT

Spring; Relief Valve

1шт.

28

H398644

BLOCK

0.003 in (0.08 mm)

1шт.

29

NSS

NOT SOLD SEPARAT

Poppet; Relief Valve

1шт.

30

NSS

NOT SOLD SEPARAT

Body; Relief Valve

1шт.

31

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Inner

1шт.

32

H398685

O-RING

Relief Valve; Outer

1шт.

33

238-5117

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

Relief Valve Cap

1шт.
