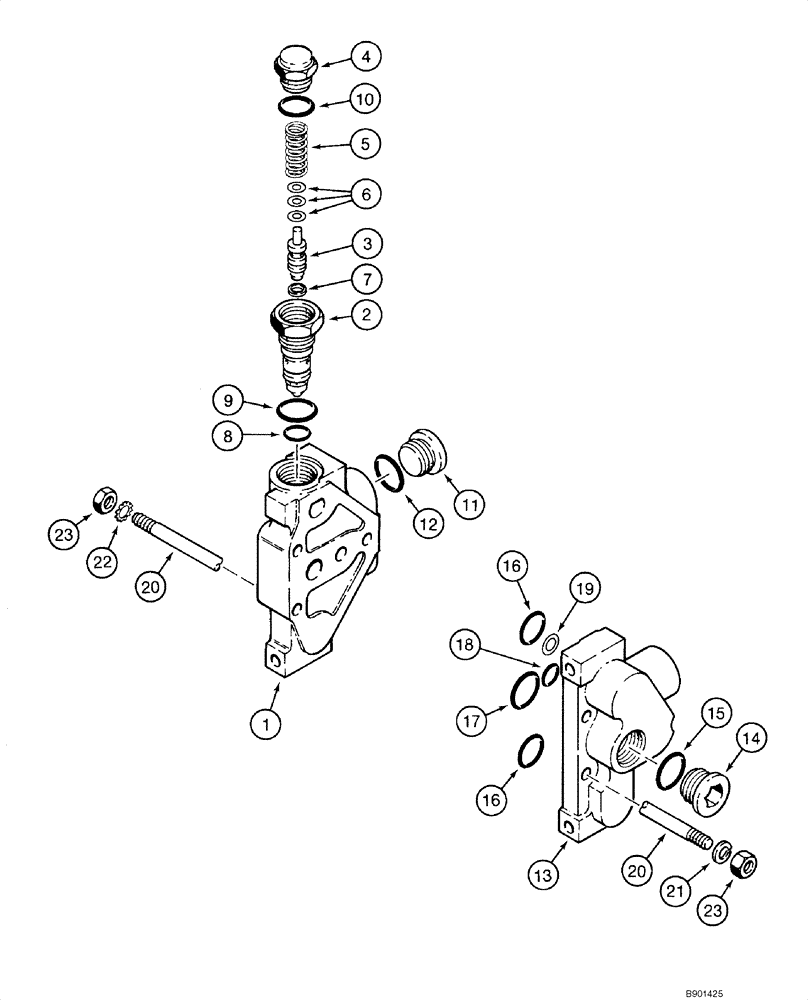

Запчасти Case IH 1840 (08-37) - VALVE, CONTROL - BACKHOE (KONTAK), D100, D100XR (08) - HYDRAULICS

H672636

VALVE

Control; Backhoe; Manufactured By Kontak; Incl. 08-36 - 08-40; No Longer Available, Order H674300, See Figure 08-41 - 08-43

1шт.

H437197

MOUNTING PARTS

Valve; Inlet; Incl. 1 - 23

1шт.

1

NSS

NOT SOLD SEPARAT

Body; Inlet Section

1шт.

H674017

VALVE

Relief Main; Incl. 2 - 10

1шт.

2

NSS

NOT SOLD SEPARAT

Body; Relief Valve Cartridge

1шт.

3

NSS

NOT SOLD SEPARAT

Poppet; Relief Valve

1шт.

4

NSS

NOT SOLD SEPARAT

Cap; Relief Valve

1шт.

5

NSS

NOT SOLD SEPARAT

Spring; Relief Valve

1шт.

6

H398644

BLOCK

0.003 in (0.08 mm)

1шт.

7

H398651

BLOCK

0.020 in (0.51 mm)

1шт.

8

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Relief Valve Body; Inner

1шт.

9

H398685

O-RING

Relief Valve Body; Outer

1шт.

10

238-5117

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

1шт.

11

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

Incl. 12

1шт.

12

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

H674021

OUTLET

Incl. 13 - 19; No Longer Available, Order Component Parts Separately

1шт.

13

N13758

COVER

Control Valve; Outlet Section

1шт.

14

86512512

PLUG,7/8" - 14 ORB

Incl. 15

1шт.

15

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

16

H438208

O-RING

Body; Medium

2шт.

17

H438209

O-RING

Body; Large

1шт.

18

H438210

O-RING

Body; Small

1шт.

19

H438211

SHIM

Body

1шт.

N14041

SET

Tie Rod; Incl. 20 - 23

3шт.

20

NSS

NOT SOLD SEPARAT

Rod

1шт.

21

492-11025

LOCK WASHER,1/4"

1шт.

22

493-41026

LOCK WASHER,Ext Tooth, 1/4"

1шт.

23

425-114

NUT,1/4"-28, G5

2шт.
