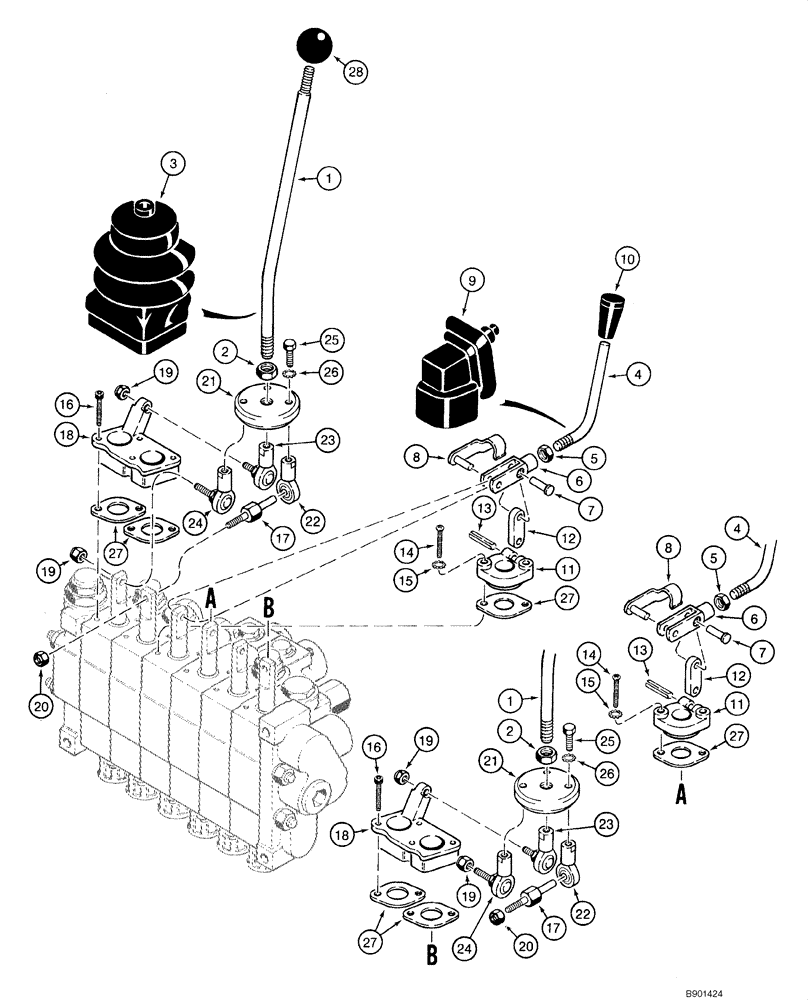

Запчасти Case IH 1840 (08-36) - VALVE, CONTROL - BACKHOE (KONTAK), D100, D100XR (08) - HYDRAULICS

H672636

VALVE

Control; Backhoe; Manufactured By Kontak; Incl. 08-36 - 08-40; No Longer Available, Order H674300, See Figure 08-41 - 08-43

1шт.

H674023

HANDLE

Lever Assy; Incl. 1 - 3; Dual Control; No Longer Available, Order Component Parts Separately

2шт.

1

H438215

LEVER

Dual Control

1шт.

2

425-117

NUT,7/16"-20, G5

1шт.

3

H438216

BOOT

1шт.

H674024

HANDLE

Lever Assy; Stabilizer; Incl. 4 - 10

2шт.

H674597

LEVER

Stabilizer; If Used

1шт.

H674697

LEVER

Incl. 4 - 6; Stabilizer; If Used

1шт.

4

NSS

NOT SOLD SEPARAT

Lever; Stabilizer

1шт.

5

425-116

NUT,3/8" - 24, Gr 5

1шт.

6

H438219

CLEVIS

Stabilizer Lever

1шт.

7

H438220

PIN

1шт.

8

N14124

CIRCLIP

1шт.

9

N14125

BOOT

Control Lever

1шт.

10

H398867

GRIP

Stabilizer Lever

1шт.

H674596

BRACKET

Stabilizer Lever; Incl. 11 - 14

2шт.

11

H438217

BRACKET

Stabilizer Lever

1шт.

12

H438218

LINK

Stabilizer Lever

1шт.

13

H438219

CLEVIS

Stabilizer Lever

1шт.

14

470-12520

SCREW,Slotted Pan Hd, 1/4"-20 x 1 1/4"

1/4 NC x 1-1/4 in

2шт.

H674022

BRACKET

Incl. 15 - 20; Dual Control Lever

2шт.

15

493-41026

LOCK WASHER,Ext Tooth, 1/4"

2шт.

16

61-32520

HEX SOC SCREW,1/4"-20 x 1 1/4"

4шт.

17

H437229

GUIDE

Rod End To Spool

1шт.

18

H437230

BRACKET

Dual Control Lever

1шт.

19

H438214

NUT

Ball Joint

2шт.

20

H438213

NUT

Rod Guide

1шт.

H674595

ADAPTER

Incl. 21 - 26; Dual Control Lever

2шт.

21

H437228

DISC

Dual Control Lever

1шт.

22

H437227

END

Rod; Adapter To Guide

1шт.

23

H437225

END

Rod; Adapter To Bracket

1шт.

24

H437226

END

Rod; Adapter To Spool Eye

1шт.

25

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

3шт.

26

893-11008

LOCK WASHER,Ext Tooth, M8

3шт.

27

N14042

SHIN

6шт.

28

CAS31375

KNOB

Dual Control Lever

2шт.
