Запчасти Case IH 1840 (08-35) - HYDRAULIC SYSTEM - BACKHOE SWING CYLINDER (D100, D100XR) (08) - HYDRAULICS

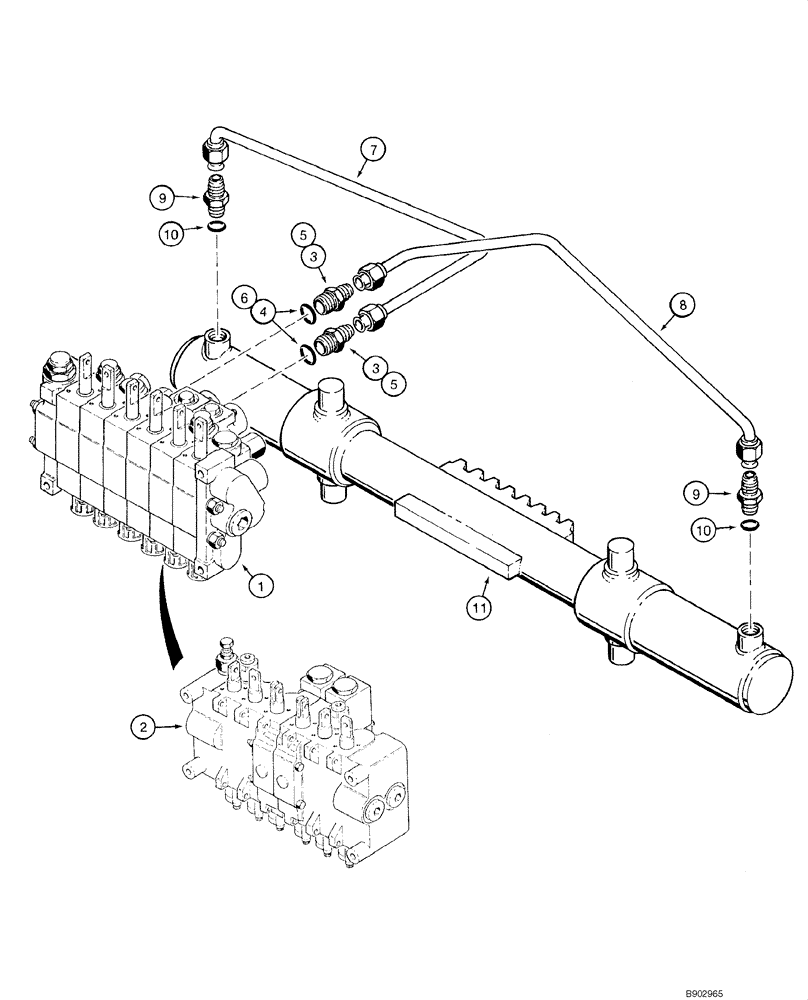

Схема запчастей Case IH 1840 - (08-35) - HYDRAULIC SYSTEM - BACKHOE SWING CYLINDER (D100, D100XR) (08) - HYDRAULICS
10
3
3
9
9
5
4
8
2
6
5
1
7
10
11

Артикул

Название

Примечание

Количество

1

H672636

VALVE

Control; Backhoe; Manufactured By Kontak; Incl. 08-36 - 08-40; No Longer Available, Order H674300, REF 2

1шт.

2

H674300

VALVE

Control; Backhoe; Manufactured By Dukes; Incl. Figure 08-41 - 08-43; See Figure 08-57A

1шт.

2

87400023

VALVE

Control; Backhoe; Replaces H674300; See Figure 08-57A

1шт.

3

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

O-ring boss, Used with Ref 1, Incl. 4

2шт.

4

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

5

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

3/4-16 in flare x O-ring boss; Incl. 6; Used With REF 2

2шт.

6

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

7

H672643

TUBE,12.7 mm OD

Swing Cylinder; Left Hand Side; Used With REF 1

1шт.

7

H674419

TUBE,0.5" OD

Swing Cylinder; Left Hand Side; Used With REF 2

1шт.

8

H672644

TUBE,12.7 mm OD

Swing Cylinder; Right Hand Side; Used With REF 1

1шт.

8

H674420

TUBE,0.5" OD

Swing Cylinder; Right Hand Side; Used With REF 2

1шт.

9

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

3/4-16 in flare x O-ring boss; Incl. 10

2шт.

10

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

11

H514125

CYLINDER ASSY.

2-3/4 (70) ID x 8 in (203 mm); Swing; See Figure 08-48; No Longer Available, Order 384865A1

1шт.

11

384865A1

CYLINDER ASSY.

2-3/4 (70) ID x 8 in (203 mm); See Figure 08-62B

1шт.

Выбрано товаров: 15
