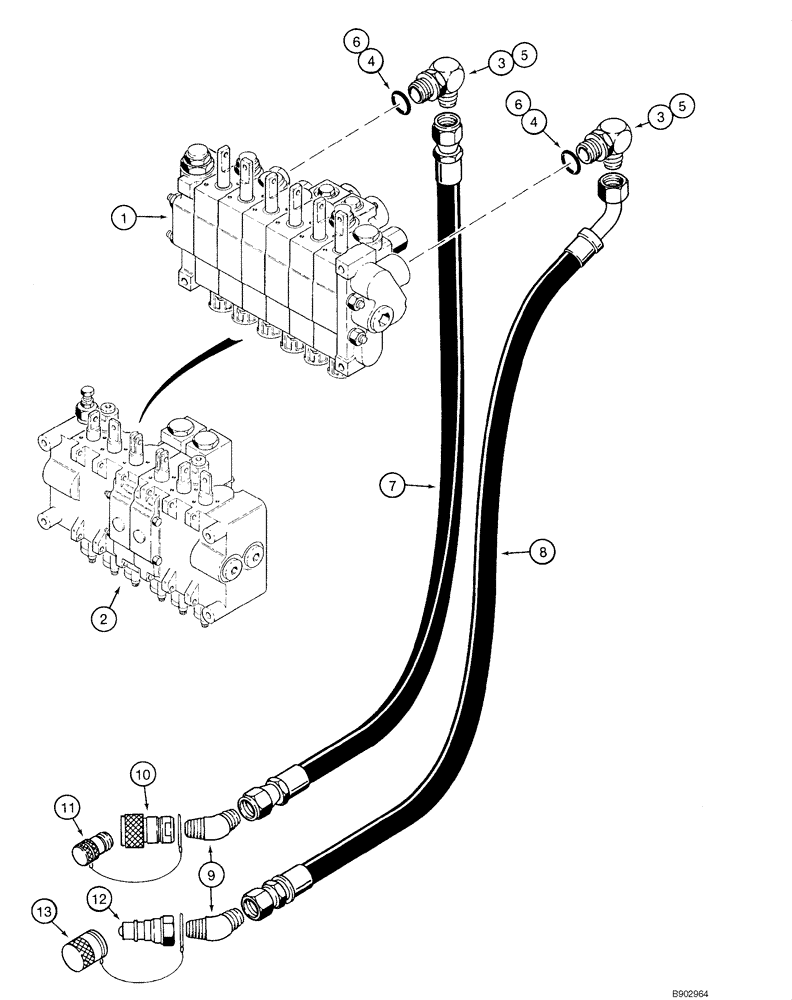

Запчасти Case IH 1840 (08-30) - HYDRAULIC SYSTEM - BACKHOE SUPPLY AND RETURN (D100, D100XR) (08) - HYDRAULICS

1

H672636

VALVE

Control; Backhoe; Manufactured By Kontak; Incl. 08-36 - 08-40; No Longer Available, Order H674300, REF 2

1шт.

2

H674300

VALVE

Control; Backhoe; Manufactured By Dukes; Incl. Figure 08-41 - 08-43

1шт.

2

87400023

VALVE

Control; Backhoe; Replaces H674300; See Figure 08-57A

1шт.

3

218-5119

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

Adj; O-ring boss; Incl. 4; Used with Ref 1

2шт.

4

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

5

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Adj; O-ring boss; Incl. 6; Used with Ref 2

2шт.

6

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

7

L46723

HOSE

42 in (1067 mm); Supply

1шт.

8

D137255

HOSE ASSY.

45-1/4 in (1150 mm); Return

1шт.

9

218-535

ELBOW,45 Degree, 7/8"-14, 37 Degree x 7/8"-14, NPTF

45 degree 7/8-14 flare x 1/2 in PT

2шт.

10

H436396

COUPLING

Quick Disconnect; Female

1шт.

11

T40274

CAP

Quick Disconnect; Female

1шт.

12

1272770C2

COUPLING, BREAK AWAY

Quick Disconnect; Male

1шт.

13

T40759

PLUG

Quick Disconnect; Male

1шт.
