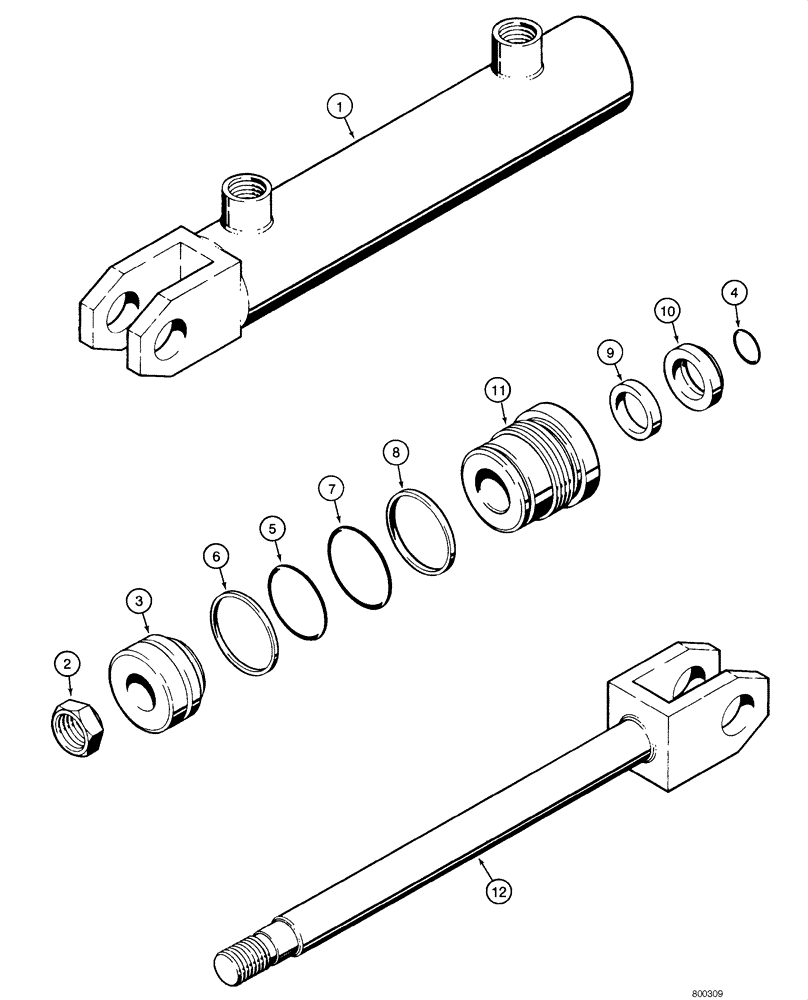

Запчасти Case IH 1840 (08-29) - CYLINDER ASSY - GRAPPLE (08) - HYDRAULICS

D61075

CYLINDER

2 (51) ID x 8 in (203 mm); Grapple; Incl. 1 - 12; For Mounting, See Figure 09-15

2шт.

1

D61010

TUBE

Cylinder

1шт.

2

425-1512

JAM NUT,Jam, 3/4"-10, G5

3/4 in NF

1шт.

3

D60996

PISTON

Cylinder

1шт.

4

238-5016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

1шт.

5

238-5129

O-RING,0.103" Thk x 1.549" ID, -129, Cl 5, 75 Duro

1шт.

6

D60995

RING

1шт.

7

238-5224

O-RING,0.139" Thk x 1.734" ID, -224, Cl 5, 75 Duro

1шт.

8

A185082

BACK-UP RING

1шт.

9

D60999

WIPER SEAL

Piston Rod

1шт.

10

D60997

WIPER SEAL

Piston Rod; Outer

1шт.

11

D61002

GLAND

Cylinder

1шт.

12

D61011

ROD

1 in (25 mm)

1шт.

D61006

GASKET KIT

Incl. 4 - 10

1шт.
