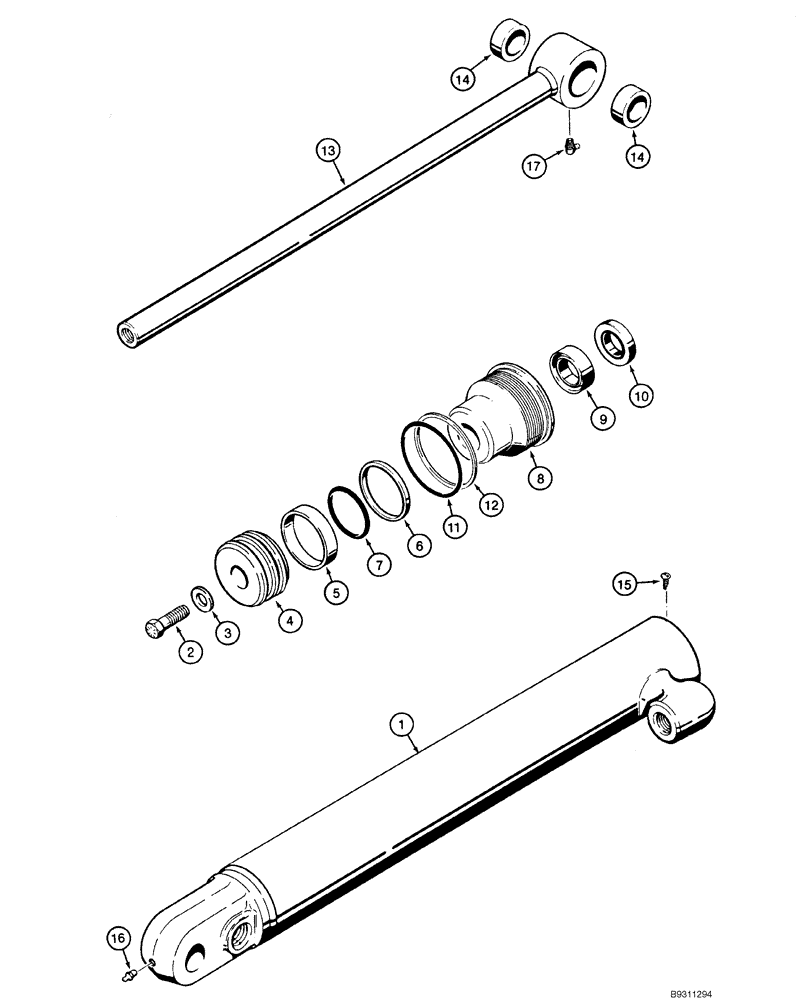

Запчасти Case IH 1840 (08-28) - CYLINDER ASSY - LOADER BUCKET TILT (08) - HYDRAULICS

118110A1

CYLINDER,Double Acting, 31.8mm Rod, 402.6mm Stroke

2-1/2 (64) ID x 15-7/8 in (403 mm); Incl. 1 - 17; For Mounting, See Figure 09-05; For Hydraulic Circuit, See Figure 08-03, 08-04

2шт.

118110A1R

REMAN-HYD CYLINDER

1840 CASE UNI LOADER SKID STEER LOADER

2шт.

118110A1C

CORE-HYD CYLINDER

Return Number

2шт.

1

118111A1

TUBE,63.42 mm ID, 575.6 mm Length

Cylinder

1шт.

2

28-1232

BOLT,Hex, 3/4" - 16 x 2", Gr 8

1шт.

3

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

1шт.

NSS

NOT SOLD SEPARAT

Piston Assy; Cylinder; Incl. 4 - 7

1шт.

4

G33138

PISTON,62.94mm Bore, 31.85mm Rod, 25.4mm W

Cylinder

1шт.

5

G100714

RING

1шт.

6

G33140

RING,59.68mm ID x 64.26mm OD x 3.94mm Thk

Piston

1шт.

7

238-5226

O-RING,0.139" Thk x 1.984" ID, -226, Cl 5, 75 Duro

1шт.

NSS

NOT SOLD SEPARAT

Gland Assy; Cylinder; Incl. 8 - 12

1шт.

8

118115A1

CYLINDER END CAP

Cylinder

1шт.

9

D36968

SEAL,31.72mm ID x 44.58mm OD x 10.69mm Thk

Wide; With O-ring

1шт.

10

D95141

WIPER SEAL

Piston Rod

1шт.

11

238-5228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

1шт.

12

G109297

BACK-UP RING,56.9mm ID x 63.5mm OD x 1.4mm Thk

1шт.

13

G103408

PISTON ROD

1-1/4 in (32 mm); Incl. 14

1шт.

14

G35361

BUSHING,25.7mm ID x 31.82mm OD x 15.7mm L

2шт.

15

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

1шт.

16

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

17

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

1шт.

128728A1

SEAL KIT

Incl. 5 - 7, 9 - 12; Also Incl. 238-5230, O-ring, G32129, Backup Ring, Not Used In This Application

1шт.
