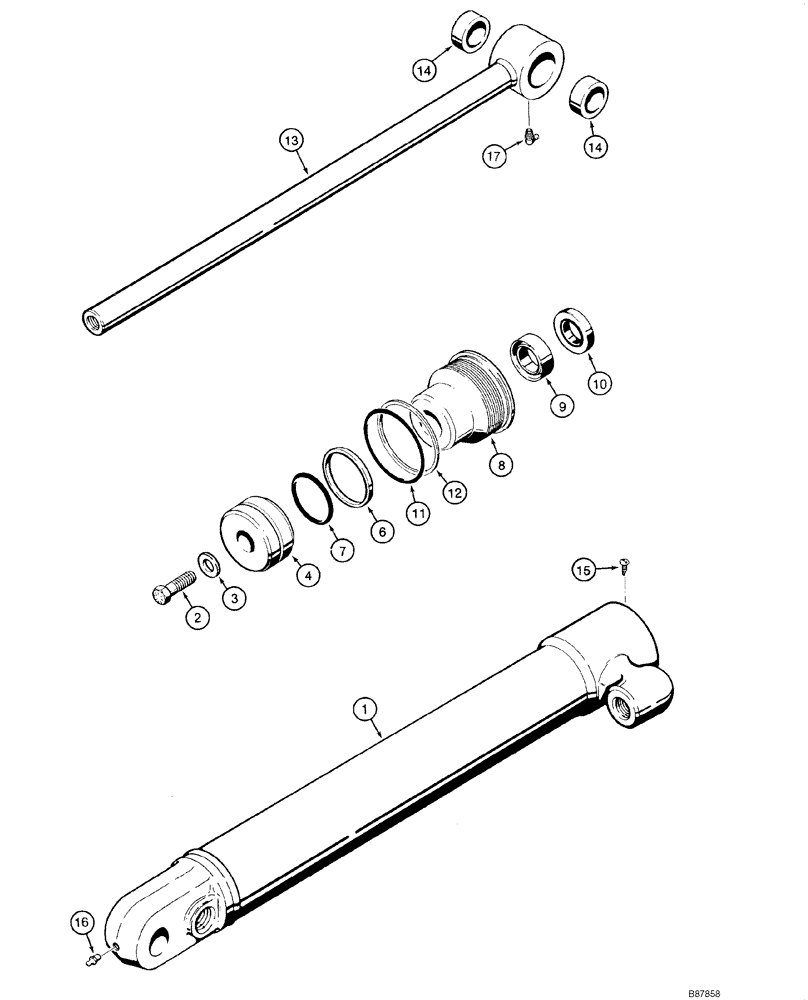

Запчасти Case IH 1840 (08-27) - CYLINDER ASSY - LOADER BUCKET TILT (08) - HYDRAULICS

G103407

CYLINDER

2-1/2 (64) ID x 15-7/8 in (403 mm); Bucket Tilt; Incl. 1 - 17; For Mounting, See Figure 09-05; For Hydraulic Circuit, See Figure 08-03, 08-04; No Longer Available, Order 118110A1, See Figure 08-28

2шт.

118110A1R

REMAN-HYD CYLINDER

1840 CASE UNI LOADER SKID STEER LOADER, Reman for New PN G103407

2шт.

118110A1C

CORE-HYD CYLINDER

Return Number

2шт.

1

G103465

TUBE,63.5 mm DIA x 572.26 mm L

1шт.

2

28-1232

BOLT,Hex, 3/4" - 16 x 2", Gr 8

1шт.

3

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

1шт.

4

G33138

PISTON,62.94mm Bore, 31.85mm Rod, 25.4mm W

Cylinder; Single Groove; Replaces G104098; Use With 4A

1шт.

4a

G100714

RING

Not Illustrated

1шт.

6

G33140

RING,59.68mm ID x 64.26mm OD x 3.94mm Thk

Piston

1шт.

7

238-5226

O-RING,0.139" Thk x 1.984" ID, -226, Cl 5, 75 Duro

1шт.

G103568

GLAND

Cylinder; No Longer Available, Order 125163A1, 128728A1; Not Illustrated

1шт.

8

125163A1

CYLINDER END CAP

Has 1/4" Groove At Top Of Threads, Spanner Wrench Holes @ 58.7 mm Centers

1шт.

9

D36968

SEAL,31.72mm ID x 44.58mm OD x 10.69mm Thk

Wide; With O-ring

1шт.

10

D95141

WIPER SEAL

Piston Rod; Outer

1шт.

11

238-5230

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

1шт.

12

G32129

BACK-UP RING,63.25mm ID x 69.35mm OD x 1.4mm Thk

1шт.

13

G103408

PISTON ROD

1-1/4 in (32 mm); Incl. 14

1шт.

14

G35361

BUSHING,25.7mm ID x 31.82mm OD x 15.7mm L

2шт.

15

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

1шт.

16

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

17

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

1шт.

128728A1

SEAL KIT

Incl. 6, 7, 9 - 12; Also Incl. G109092, Not Used In This Application; No Longer Available, Order Components Separately

1шт.
