Запчасти Case IH 1840 (08-26) - CYLINDER ASSY - LOADER LIFT (08) - HYDRAULICS

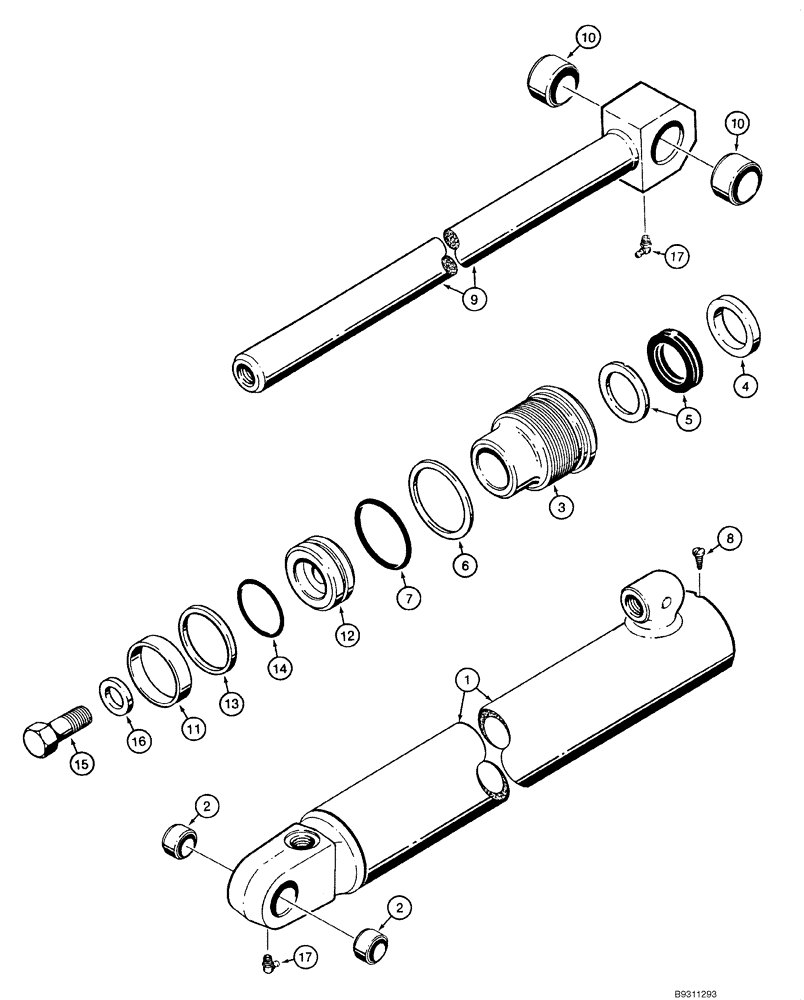

Схема запчастей Case IH 1840 - (08-26) - CYLINDER ASSY - LOADER LIFT (08) - HYDRAULICS
10
16
2
13
7
10
15
6
14
3
8
12
1
5
17
2
4
17
11
9

Артикул

Название

Примечание

Количество

117824A1

CYLINDER,Double Acting, 38.1mm Rod, 679.4mm Stroke

2-1/2 (64) ID x 26-3/4 in (679 mm); Incl. 1 - 17; For Mounting, See Figure 09-05; For Hydraulic Circuit, See Figure 08-01, 08-02

2шт.

1

117825A1

TUBE,63.42 mm ID, 862 mm Length

Cylinder; Incl. 2

1шт.

2

D34359

BUSHING,25.63mm ID x 34.92mm OD x 15.75mm L

2шт.

NSS

NOT SOLD SEPARAT

Gland Assy; Cylinder; Incl. 5 - 7

1шт.

3

117830A1

GLAND

Cylinder

1шт.

4

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

Piston Rod

1шт.

5

1542874C1

SEAL KIT,38.1mm Rod

Incl 5A, 5B; Not Serviced Separately; Order 128725A1

1шт.

5a

1542997C1

SEALING RING

Rod; Not Serviced Separately; Order 128725A1

1шт.

5b

NSS

NOT SOLD SEPARAT

Seal; Buffer; Not Serviced Separately; Order 128725A1

1шт.

6

G109297

BACK-UP RING,56.9mm ID x 63.5mm OD x 1.4mm Thk

1шт.

7

238-5228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

1шт.

8

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

1шт.

9

128301A1

ROD

1-1/2 in (38 mm); Piston; Incl. 10; Replaces G106824

1шт.

10

G32050

BUSHING,25.63mm ID x 31.85mm OD x 15.75mm L

Piston Rod

1шт.

G35267

PISTON ASSY.

Cylinder; Incl. 11 - 14; No Longer Available, Order Component Parts Separately

1шт.

11

G100714

RING

2шт.

12

S220090

PISTON

Cylinder; Replaces G104100

1шт.

13

G33140

RING,59.68mm ID x 64.26mm OD x 3.94mm Thk

Piston

1шт.

14

238-5226

O-RING,0.139" Thk x 1.984" ID, -226, Cl 5, 75 Duro

1шт.

15

28-1232

BOLT,Hex, 3/4" - 16 x 2", Gr 8

1шт.

15

86982434

SPECIAL BOLT,3/4" - 16 x 2"

Bolt And Washer Assy; Replaces 28-1232, And REF 16, G32317

1шт.

16

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

1шт.

17

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

2шт.

128725A1

SEAL KIT

Incl. 4, 5, 6, 7, 13, 14; Also Incl. 238-5230, O-ring, G32129, Backup Ring, Not Used In This Application

1шт.
