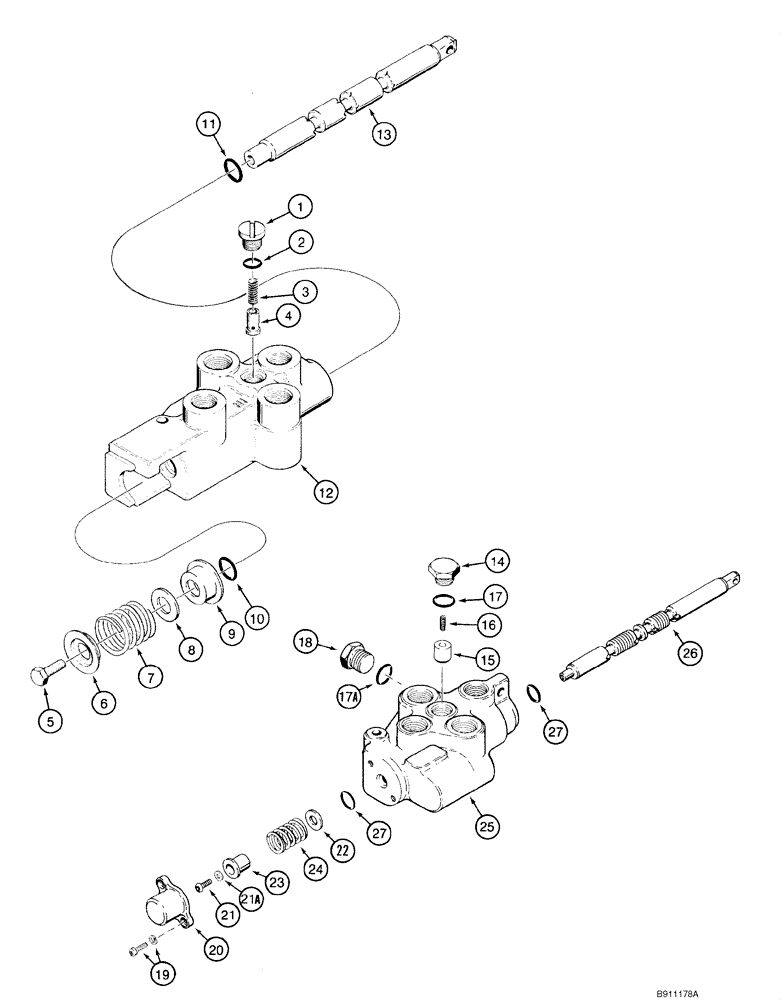

Запчасти Case IH 1840 (08-24) - VALVE ASSY - AUXILIARY (08) - HYDRAULICS

D64670

VALVE

Auxiliary Control; No Longer Used, For Service, Order H674465; For Mounting, See Figure 08-20 - 08-23

1шт.

E20548

VALVE, CONTROL

Auxiliary Control; Incl. 1 - 13; European Models; - JAF0098065

1шт.

H47506

PLUG

Load Check Valve; Incl. 1, 2

1шт.

1

NSS

NOT SOLD SEPARAT

Plug

1шт.

2

238-7112

O-RING,0.103" Thk x 0.487" ID, -112, Cl 7, 75 Duro

1шт.

3

FH730374

SPRING

Load Check Valve

1шт.

4

FH730366

PLUNGER

Load Check Valve

1шт.

5

H428292

SCREW,1/4" - 20 x 0.972"

1шт.

6

F59116

WASHER

1шт.

7

H220517

SPRING

1шт.

8

H746164

WASHER

5/32 in (4 mm)

1шт.

9

H52902

CAP

1шт.

10

238-5114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

Valve Body; Spool Detent End

1шт.

11

F37887

O-RING

Valve Body; Spool Eye End

1шт.

12

NSS

NOT SOLD SEPARAT

Body; Valve

1шт.

13

NSS

NOT SOLD SEPARAT

Spool; Valve

1шт.

H674465

VALVE

Auxiliary Control; Incl. 142999A1, REF 17A, 18, H436154, H674816, REF 19 - 27; JAF0098065 -

1шт.

142999A1

KIT

Load Check; Incl. 14 - 17; Replaces H673572

1шт.

14

NSS

NOT SOLD SEPARAT

Plug; Load Check

1шт.

15

NSS

NOT SOLD SEPARAT

Poppet; Load Check

1шт.

16

NSS

NOT SOLD SEPARAT

Spring; Load Check

1шт.

17

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Load check plug

1шт.

17a

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Power Beyond Plug

1шт.

18

132547A1

PLUG

Power Beyond; Replaces H436435; If Used

1шт.

H436154

FITTING,7/8" - 14

Power Beyond For High Flow Option; If Used

1шт.

NSS

NOT SOLD SEPARAT

Sleeve; Power Beyond; Incl. With H436154

1шт.

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Incl. with H436154

1шт.

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Incl. with H436154

1шт.

A52424

BACK-UP RING

Incl. With H436154

1шт.

H674816

KIT

Centering Spring; Incl. 19 - 24

1шт.

19

221655A1

CAPTIVE WASHER SCREW,Phillips Drive, Round HD, #12 - 24 x 1/2"

Incl. Lock Washer

2шт.

20

N9528

CAP

Bucket; Spool End

1шт.

21

62-7108

HEX SOC SCREW,Btn Hd, #10 - 32 x 1/2"

1шт.

21a

492-11010

LOCK WASHER,#10

1шт.

22

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16")

1шт.

23

N9529

SEAT

Spring

1шт.

24

N9539

TENSION SPRING

Centering

1шт.

25

NSS

NOT SOLD SEPARAT

Body; Valve

1шт.

26

NSS

NOT SOLD SEPARAT

Spool; Valve

1шт.

27

H438030

O-RING

5/8 ID x 13/16 in

2шт.
