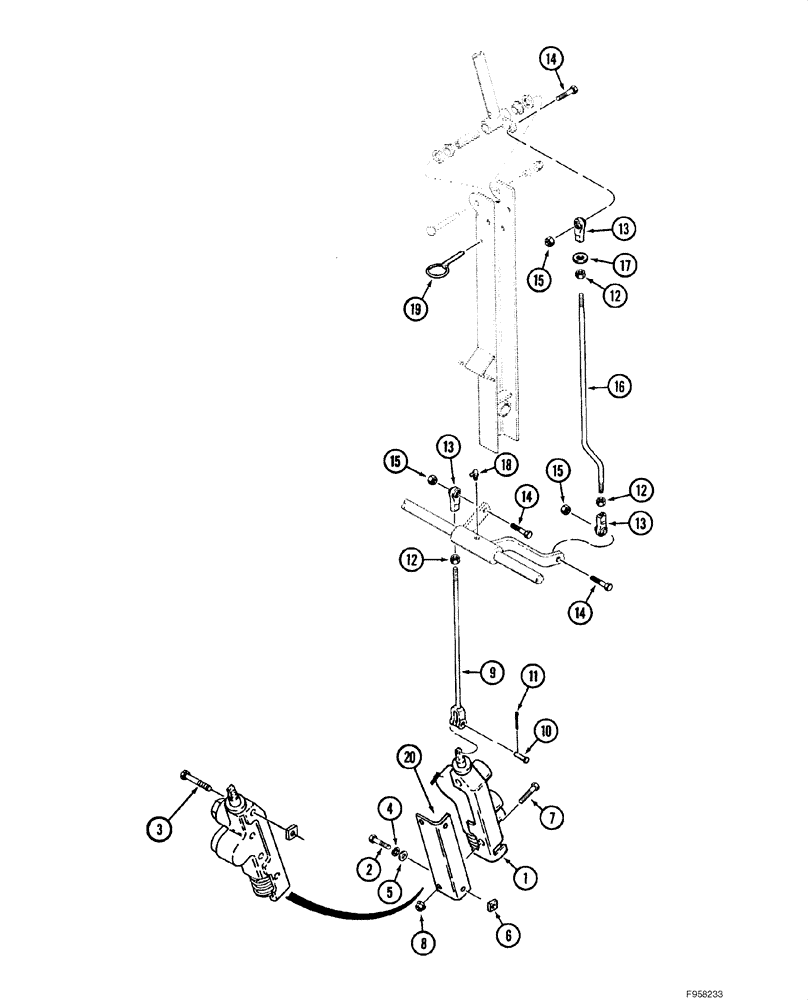

Запчасти Case IH 1840 (08-23) - AUXILIARY CONTROL VALVE - PEDAL MOUNTING, MODELS WITH FOOT OPERATED LOADER CONTROLS (08) - HYDRAULICS

1

REF

INSTRUCTION

Auxiliary Control Valve Assy; See Figure 08-24; See Figure 06-01, 06-02 For Additional Mounting Parts

1шт.

2

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

Use with D128116

2шт.

3

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

1шт.

4

492-11038

LOCK WASHER,3/8"

Use with D128116

2шт.

5

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16"), Use with D128116

2шт.

6

224-2245

SQUARE NUT,Sq, 5/16"-18, G2

Use with D128116

2шт.

7

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

Use with D128116

2шт.

8

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

Use with D128116

2шт.

9

H439251

ROD

Replaces H673903; Also Order H32961

1шт.

10

H32961

CLEVIS COUPLING,7.94mm OD x 29.34mm L

1шт.

11

432-48

COTTER PIN,1/16" x 1/2"

1шт.

12

425-116

NUT,3/8" - 24, Gr 5

3шт.

13

A32398

BALL JOINT

3/8 in; Female

3шт.

14

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

3шт.

15

232-4116

NUT,3/8"-16, GC

3шт.

16

D128257

ROD

Control Lever To Cross Shaft

1шт.

17

495-81002

WASHER,3/8"

7/16 x 1-3/8 x 5/64 in

1шт.

18

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

1шт.

19

H437134

LINCH PIN,6.3mm OD

1шт.

20

D128116

BRACKET

Auxiliary Control Valve

1шт.
