Запчасти Case IH 1840 (08-22) - AUXILIARY CONTROL VALVE - PEDAL MOUNTING, MODELS WITH HAND OPERATED LOADER CONTROLS (08) - HYDRAULICS

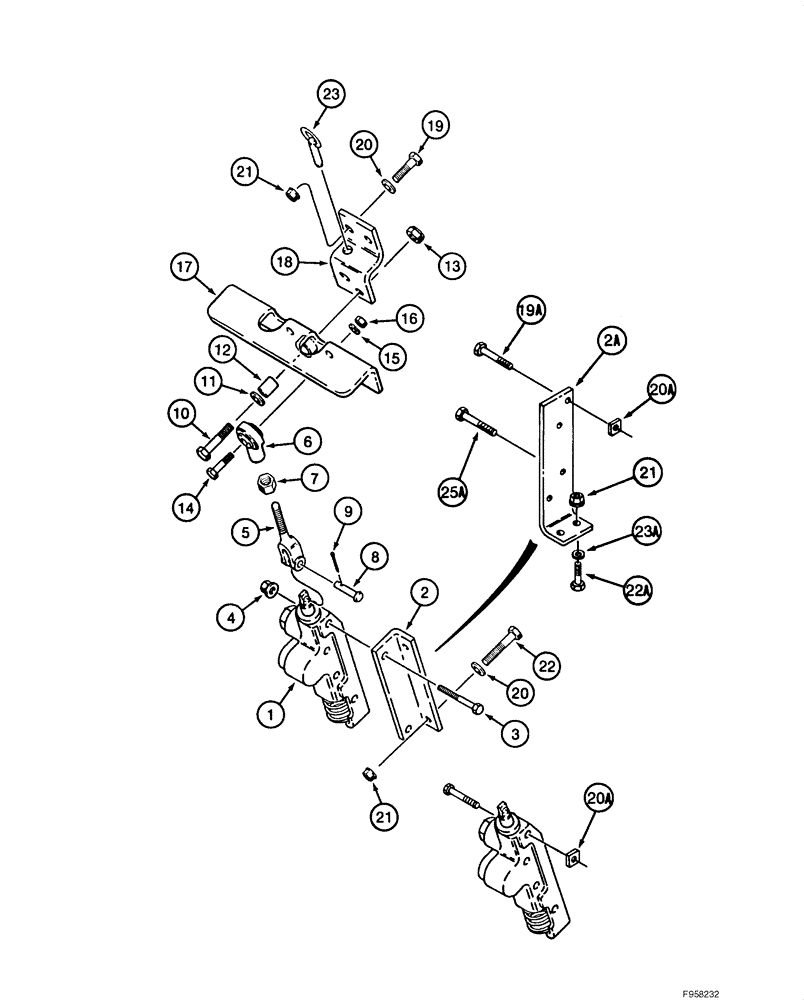

Схема запчастей Case IH 1840 - (08-22) - AUXILIARY CONTROL VALVE - PEDAL MOUNTING, MODELS WITH HAND OPERATED LOADER CONTROLS (08) - HYDRAULICS
21
6
22
13
14
17
12
15
25a
7
23
11
9
8
19
1
16
20a
23a
2
20a
4
19a
2a
20
22a
10
5
18
21
20
3
21

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

Valve Assy; Auxiliary Control Valve; See Figure 08-24

1шт.

2

D128116

BRACKET

Auxiliary Control Valve; - JAF0100497

1шт.

2a

121022A1

SUPPORT

Auxiliary Control Valve; JAF0100497 -

1шт.

3

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

Use with D128116

2шт.

4

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

5

H439250

CLEVIS,3/8" - 24

Replaces D70292; Also Order H32961, REF 8

1шт.

6

A32398

BALL JOINT

3/8 in; Female

1шт.

7

425-116

NUT,3/8" - 24, Gr 5

1шт.

8

H32961

CLEVIS COUPLING,7.94mm OD x 29.34mm L

1шт.

9

432-48

COTTER PIN,1/16" x 1/2"

1шт.

10

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.

11

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32")

1шт.

12

L14781

BUSHING,12.8mm ID x 15.94mm OD x 25.4mm L

1шт.

13

232-4118

NUT,1/2"-13, GC

1шт.

14

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

15

492-11038

LOCK WASHER,3/8"

1шт.

16

425-106

NUT,3/8"-16, Cl 5

1шт.

17

H673491

PEDAL

Control Valve

1шт.

18

H435821

BRACKET

Pedal Mounting

1шт.

19

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

19a

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

Use with Ref 2A

1шт.

20

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16"), Use with Ref 2

2шт.

20a

224-2245

SQUARE NUT,Sq, 5/16"-18, G2

Use with Ref 2A

1шт.

21

231-5146

FLANGE NUT,3/8"-16

Use with Ref 2 Or 2A

4шт.

22

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

Use with Ref 2

2шт.

22a

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

Use with Ref 2A

2шт.

23

D94535

PIN,9.52mm OD

Pedal Bracket

1шт.

23a

496-21041

WASHER,13/32" x 13/16" x .089", HDN

Use with Ref 2A

2шт.

Выбрано товаров: 28
