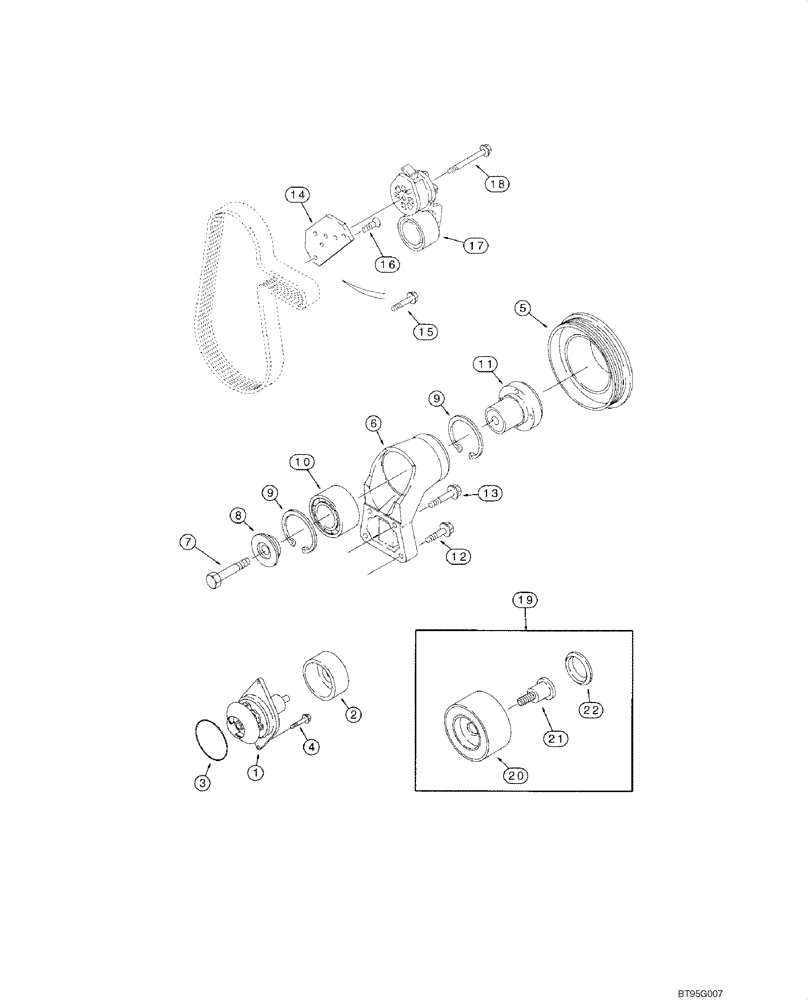

Запчасти Case IH 1840 (02-07) - WATER PUMP SYSTEM, 4-390 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

J286277

PUMP, WATER

Incl. 1 - 3; Replaces J802358, J802970

1шт.

J286278R

REMAN-WATER PUMP

1840 w/Emissionized Engine

1шт.

J286278C

CORE-WATER PUMP

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

Water Pump Assy

1шт.

2

NSS

NOT SOLD SEPARAT

Pulley; Water Pump

1шт.

3

J906698

RUBBER SEAL,Square, 5.16mm Thk x 88.27mm ID

3-1/2 ID x 3/16 in; Replaces 238-5341

1шт.

4

J900227

BOLT,Hex, M8 x 1.25 x 22mm, Cl 10.9

2шт.

5

J914462

PULLEY,163mm OD

1.1 to 1 ratio; Fan; North American Models

1шт.

5

87739401

PULLEY,207.26mm OD

0.87:1 Ratio; European Models; Replaces J914461

1шт.

6

J911205

BRACKET

Fan; Incl. 7 - 11

1шт.

7

J907769

BOLT,Hex, M10 x 70mm, Cl 12.9

10 - 1.5 x 70 mm; 12.9

1шт.

8

J923044

RETAINER

Fan Hub

1шт.

9

100-21250

SNAP RING,2.50", Int, #250

2шт.

10

J910739

BALL BEARING,35mm ID x 64mm OD x 37mm W

1шт.

11

J911924

HUB

Fan

1шт.

12

854-8040

BOLT,Hvy Hex, M8 x 40mm, Cl 10.9

Replaces 845-8040

2шт.

13

844-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8

Replaces 845-8030

2шт.

14

J925195

SUPPORT

Belt Tensioner; North American Models

1шт.

14

J925194

SUPPORT

Belt Tensioner; European Models; 89DB EEC Approved North American Models

1шт.

15

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

1шт.

16

J925186

SCREW,Torx, M8 x 1.25 x 25mm, Cl 10.9

1шт.

17

J934817

BELT TENSIONER

Replaces J918944; No Longer Available, Order J936203

1шт.

17

J936203

BELT TENSIONER

1шт.

18

854-10070

BOLT,Hvy Hex, M10 x 70mm, Cl 10.9

1шт.

19

A77817

KIT

Belt Tensioner Pulley; Incl. 20 - 22; Used To Replace Pulley Of J934817 Belt Tensioner

1шт.

20

NSS

NOT SOLD SEPARAT

Pulley; Belt Tensioner

1шт.

21

NSS

NOT SOLD SEPARAT

Bolt; Pulley

1шт.

22

NSS

NOT SOLD SEPARAT

Seal; Dust

1шт.
