Запчасти Case IH 1840 (08-21) - HYDRAULICS - AUXILIARY SYSTEM, JAF0098608 - (08) - HYDRAULICS

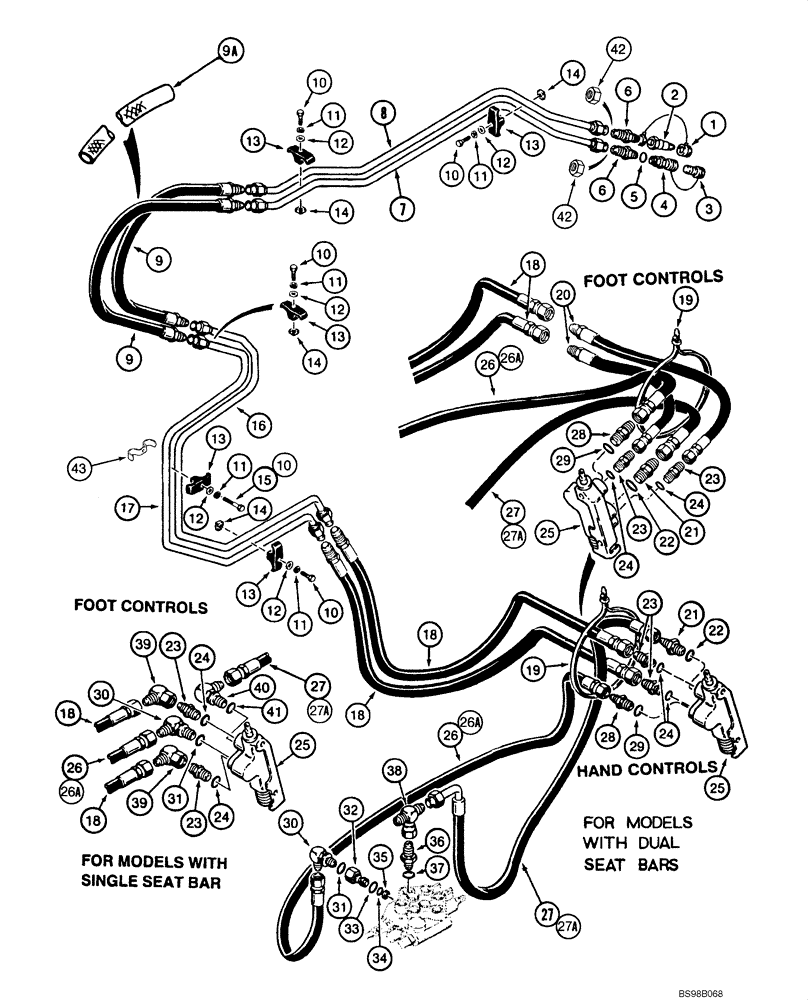

Схема запчастей Case IH 1840 - (08-21) - HYDRAULICS - AUXILIARY SYSTEM, JAF0098608 - (08) - HYDRAULICS
13
19
16
3
27a
30
13
10
18
9a
18
27a
2
11
5
9
10
19
32
26a
14
18
10
29
12
21
12
27
29
18
24
14
43
6
23
27a
15
24
11
42
11
34
23
11
8
9
31
38
30
42
22
27
7
24
23
12
23
26
25
40
10
23
14
17
6
13
35
26a
26
26
12
39
4
18
11
20
10
1
27
41
21
25
12
39
14
26a
28
13
37
22
36
24
31
33
25
24
28
13

Артикул

Название

Примечание

Количество

1

T40759

PLUG

Quick Disconnect; JAF0098608 -

1шт.

2

122180A1

COUPLING, BREAK AWAY

Quick Disconnect; Male

1шт.

3

T40274

CAP

Quick Disconnect

1шт.

4

143431A1

COUPLING, QUICK, FEM

Quick Disconnect; Female; Incl. 5

1шт.

5

238-5210

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

1шт.

6

184602A1

FITTING

2шт.

7

H673489

TUBE ASSY.,15.88 mm OD x 1102.6, 200 mm L

Lower; To Quick Disconnect

1шт.

8

H673490

TUBE ASSY.,15.88 mm OD

Upper; To Quick Disconnect

1шт.

9

D126740

HOSE,12.7mm ID x 850mm L, SAE 100R2

850 mm (33-1/2 in)

2шт.

9a

135246A1

TUBE

Used On REF 9; European Models

2шт.

10

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

3-4шт.

11

492-11038

LOCK WASHER,3/8"

3шт.

12

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

3шт.

13

D120613

CLAMP,20mm ID

3-5шт.

14

84899

SQUARE NUT,Sq, 3/8"-16, G2

2шт.

15

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

If Used

1шт.

16

104014A1

HYD TUBE,360786 mm Length

Crossover To Intermediate Hose; Return; To Port A of Auxiliary Control Valve

1шт.

17

104012A1

HYD TUBE

Crossover To Intermediate Hose; Supply; To Port B of Auxiliary Control Valve

1шт.

18

D134508

HOSE

1750 mm (68-7/8 in); From Tube At Auxiliary Control Valve

2шт.

19

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

1шт.

20

H436880

HOSE

600 mm (23-5/8 in); Crossover Tubes To Control Valve; Models With Foot Controls And Self-Leveling Only; Models With Dual Seat Bars

2шт.

21

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

O-Ring boss; For Models With Single Seat Bar; Incl. 22

1шт.

22

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

23

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

Incl. 24

2шт.

24

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

25

REF

INSTRUCTION

Valve Assy; Auxiliary Control; See Figure 08-24

1шт.

26

H435865

HOSE ASSY.,15.88mm ID x 2150mm L

2150 mm (84-5/8 in); To In Port of Auxiliary Control Valve; If Used

1шт.

26a

130470A1

HOSE ASSY.,15.88mm ID x 2150mm L

2150 mm (84-5/8 in) Supply; To In Port of Auxiliary Control Valve; If Used; Not Illustrated

1шт.

27

H436149

HOSE,19.05mm ID x 1950mm L, SAE 100R1

1950 mm (76-3/4 in); Return; To Out Port of Auxiliary Control Valve; Without Emissions Certified Engine; With Emissions Certified Engine With Fuel Injection Pump J935679; See Figure 03-08

1шт.

27a

309041A1

HOSE ASSY.

1700 mm (67 in); Return; To Out Port of Auxiliary Control Valve; Emissions Certified Engine With Fuel Injection Pump J935679; See Figure 03-07; Replaces A141004; No Longer used, Order REF 27; Not Illustrated

1шт.

28

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8-14 in flare x O-ring boss; Models With Dual Seat Bars; Incl. 29

1шт.

29

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

30

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Adj O-ring boss; Incl. 31; Models with Single Seat Bar; Used with Ref 26; If Used

1шт.

31

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

H436154

FITTING,7/8" - 14

Incl. 32 - 35; Power Beyond; Models With Dual Seat Bars

1шт.

129878A1

FITTING

Incl. 32 - 35; Power Beyond; Models With Single Seat Bar

1шт.

32

NSS

NOT SOLD SEPARAT

Sleeve; Power Beyond

1шт.

33

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

34

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

35

A52424

BACK-UP RING

1шт.

36

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

O-Ring boss; Incl. 37

1шт.

37

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

38

218-837

TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Br

1-1/16-12 in swivel branch x flare x flare

1шт.

39

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

Models with Single Seat Bar

2шт.

40

218-5123

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

90 degree, 1-1/16-12 flare x 7/8-14 in adj O-ring boss; Incl. 41; Models With Single Seat Bar

1шт.

41

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

If used

1шт.

42

218-1251

BHD LOCK NUT,Blkhd, 7/8"-14

If Used

2шт.

43

H435737

CLAMP

If Used

1шт.
