Запчасти Case IH 1840 (08-20) - HYDRAULICS - AUXILIARY SYSTEM, - JAF0098608 (08) - HYDRAULICS

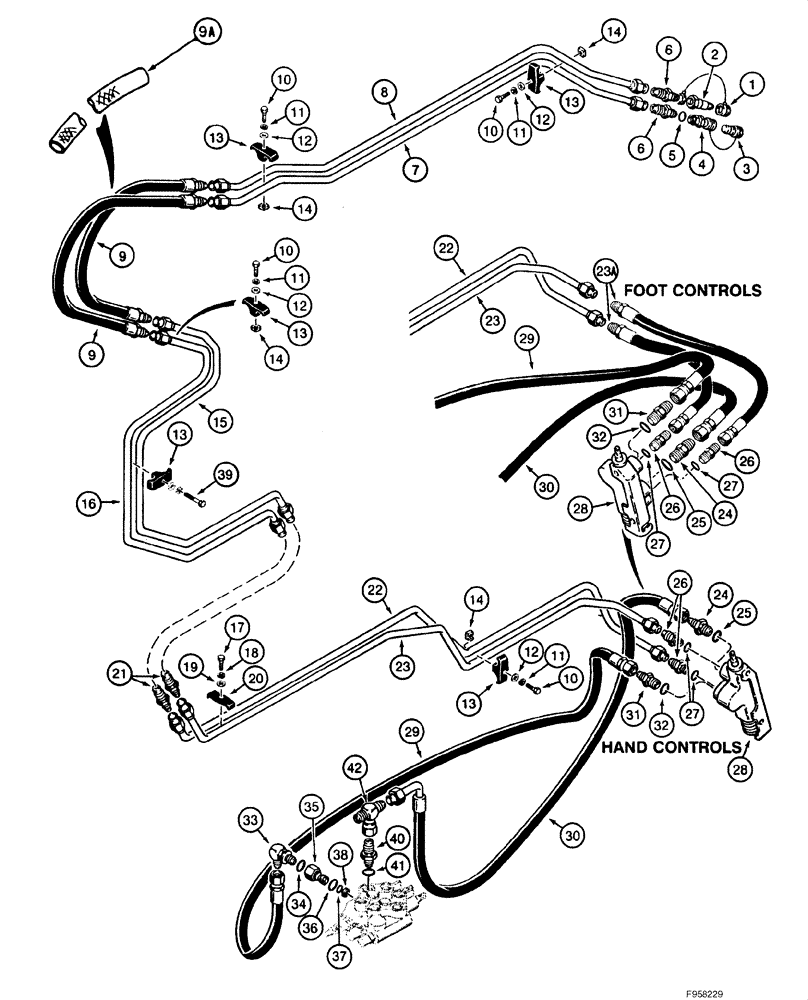

Схема запчастей Case IH 1840 - (08-20) - HYDRAULICS - AUXILIARY SYSTEM, - JAF0098608 (08) - HYDRAULICS
10
1
10
11
12
13
26
26
31
3
11
7
21
23
31
17
22
40
23a
14
39
9a
4
5
27
27
11
25
36
14
13
20
22
10
25
24
12
42
9
16
24
32
14
32
28
30
15
29
27
29
13
10
35
8
12
9
37
2
12
13
14
26
38
23
13
30
34
28
6
11
33
18
6
19
41

Артикул

Название

Примечание

Количество

1

T40759

PLUG

Quick Disconnect; - JAF0098608

1шт.

2

1272770C2

COUPLING, BREAK AWAY

Quick Disconnect; Male

1шт.

3

T40274

CAP

Quick Disconnect; North American Models

1шт.

3

E99255

PLUG

Quick Disconnect

1шт.

4

H436396

COUPLING

Female; North American Models

1шт.

4

E99254

COUPLING, BREAK AWAY

Quick Disconnect; Incl. 5; Female; European Models

1шт.

5

238-5210

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

Quick Disconnect

1шт.

6

218-445

HYD CONNECTOR,7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

7/8-14 flare x 1/2 in PT

2шт.

7

H673489

TUBE ASSY.,15.88 mm OD x 1102.6, 200 mm L

Lower; To Quick Disconnect

1шт.

8

H673490

TUBE ASSY.,15.88 mm OD

Upper; To Quick Disconnect

1шт.

9

D126740

HOSE,12.7mm ID x 850mm L, SAE 100R2

850 mm (33-1/2 in)

2шт.

9a

135246A1

TUBE

Used On REF 9; European Models

2шт.

10

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

4шт.

11

492-11038

LOCK WASHER,3/8"

4шт.

12

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

4шт.

13

D120613

CLAMP,20mm ID

5шт.

14

84899

SQUARE NUT,Sq, 3/8"-16, G2

4шт.

15

H673588

TUBE,0.625" OD

Crossover To Intermediate Hose; Return; To Port A of Auxiliary Control Valve

1шт.

16

H673587

TUBE,0.625" OD

Crossover To Intermediate Hose; Supply; To Port B of Auxiliary Control Valve

1шт.

17

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

18

492-11038

LOCK WASHER,3/8"

1шт.

19

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

1шт.

20

D120614

CLAMP,25mm W x 68mm L x 9mm Thk

1шт.

21

218-736

UNION,7/8"-14, 37 Degree x 7/8"-14, 37 Degree

7/8-14 in flare

2шт.

22

H673303

TUBE ASSY.,0.625" OD

Crossover; Upper

1шт.

23

H673302

TUBE ASSY.,0.625" OD

Crossover; Lower

1шт.

23a

H436880

HOSE

600 mm (23-5/8 in); Crossover Tubes To Control Valve; Models With Foot Controls And Self-Leveling

2шт.

24

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

O-Ring boss; Incl. 25

2шт.

25

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

26

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

Incl. 27

2шт.

27

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

28

REF

INSTRUCTION

Valve Assy; Auxiliary Control; See Figure 08-24

1шт.

29

H435865

HOSE ASSY.,15.88mm ID x 2150mm L

2150 mm (84-5/8 in); Supply; To In Port of Auxiliary Control Valve

1шт.

30

H436149

HOSE,19.05mm ID x 1950mm L, SAE 100R1

1950 mm (76-3/4 in)

1шт.

31

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8-14 in flare x O-ring boss; Incl. 32

1шт.

32

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

33

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Adj O-ring boss; Incl. 34

1шт.

34

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

H436154

FITTING,7/8" - 14

Power Beyond; Incl. 35 - 38

1шт.

35

NSS

NOT SOLD SEPARAT

Adapter; Power Beyond

1шт.

36

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

37

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

38

A52424

BACK-UP RING

1шт.

39

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

1шт.

40

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

O-Ring boss; Incl. 41

1шт.

41

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

42

218-837

TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Br

1-1/16-12 inch swivel branch x flare x flare

1шт.
