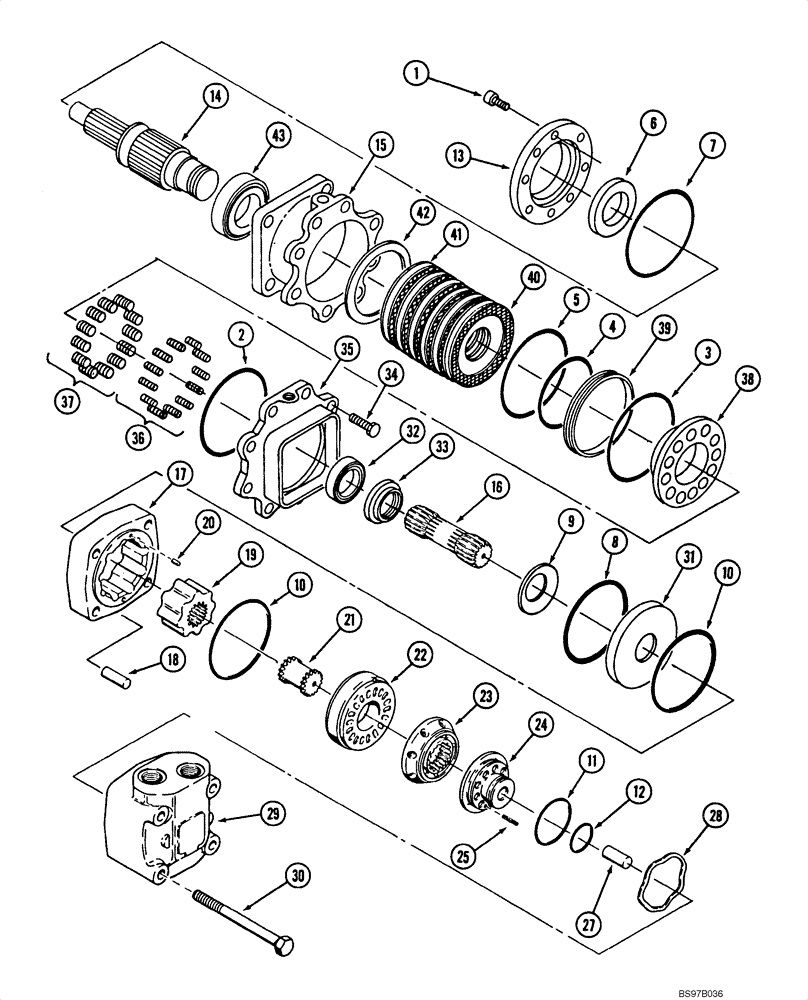

Запчасти Case IH 1840 (08-18) - HYDRAULIC DRIVE MOTOR, (EUROPE) (08) - HYDRAULICS

135858A2

MOTOR, HYDRAULIC

Incl. 1 - 43; No Longer Available, Order 230460A1, See Figure 08-18A; For Mounting, See Figure 08-10

2шт.

1

175398A1

SCREW,M6, Cl 12.9

6 - 1.25 x 25 mm

8шт.

175399A1

SEAL KIT

Motor; Incl. 2 - 12

1шт.

2

NSS

NOT SOLD SEPARAT

O-ring; Flange

1шт.

3

NSS

NOT SOLD SEPARAT

O-ring; Piston; Outer

1шт.

4

NSS

NOT SOLD SEPARAT

O-ring; Piston; Inner

1шт.

5

NSS

NOT SOLD SEPARAT

O-ring; Piston; Outer

1шт.

6

175395A1

SEAL

Shaft

1шт.

7

NSS

NOT SOLD SEPARAT

O-ring; Output Shaft

1шт.

8

NSS

NOT SOLD SEPARAT

O-ring; Rotor Drive Shaft

1шт.

9

NSS

NOT SOLD SEPARAT

Ring; Seal

1шт.

EUROPEAN MODELS

1шт.

10

NSS

NOT SOLD SEPARAT

O-ring; Gerotor; REF 10 - 43 Used On European Models

2шт.

11

NSS

NOT SOLD SEPARAT

O-ring; Thrust Plate; Large

1шт.

12

NSS

NOT SOLD SEPARAT

O-ring; Thrust Plate; Small

1шт.

13

175397A1

COVER

Front

1шт.

14

175394A1

SHAFT

Output

1шт.

15

175391A1

BEARING HOUSING

Bearing

1шт.

16

H436755

GEROTOR

Rotor Drive; Long

1шт.

H436764

GEROTOR

Incl. 17 - 19

1шт.

17

NSS

NOT SOLD SEPARAT

Stator; Gerotor

1шт.

18

NSS

NOT SOLD SEPARAT

Roller; Gerotor

9шт.

19

NSS

NOT SOLD SEPARAT

Rotor; Gerotor

1шт.

20

E37942

GUIDE PIN

1шт.

21

H436757

SHAFT

Short

1шт.

22

H436759

CHAMBER

Short Shaft

1шт.

23

H436760

VALVE

Disc

1шт.

24

H436763

LARGE PLATE

PLATE, LARGE Thrust

1шт.

25

838-1528

LOCK PIN,M5 x 28, Slotted

Replaces 837-5028

1шт.

26

838-1324

LOCK PIN,M3 x 24, Slotted

Assemble Inside Ref 25

1шт.

27

H436761

SPACER

Port End Cover

1шт.

28

H436762

SPACER

Spring Wave

1шт.

29

240895A1

HOUSING

Replaces H436758; Also Order 382849A1

1шт.

382849A1

DRIVE PLATE

1шт.

30

175401A1

SCREW,Hex, M14 x 2 x 150mm, Cl 10.9

14 - 2.0 x 150 mm

4шт.

31

175374A1

LARGE PLATE

PLATE, LARGE Intermediate

1шт.

32

175377A1

TAPERED BEARING

1шт.

33

175376A1

BEARING LOCK NUT

Bearing

1шт.

34

175378A1

SCREW,M10, Cl 12.9

8шт.

35

175380A1

FLANGED BEARING

Bearing Housing

1шт.

36

175382A1

SPRING

Small

12шт.

37

175381A1

SPRING

Large

12шт.

38

175383A1

PISTON

Brake

1шт.

39

175384A1

BACK-UP RING

Piston

1шт.

40

175385A1

DISC

Brake; Outer

12шт.

41

175387A1

DISC

Brake; Inner

11шт.

42

175389A1

SPACER

1шт.

43

175392A1

TAPERED BEARING

1шт.
