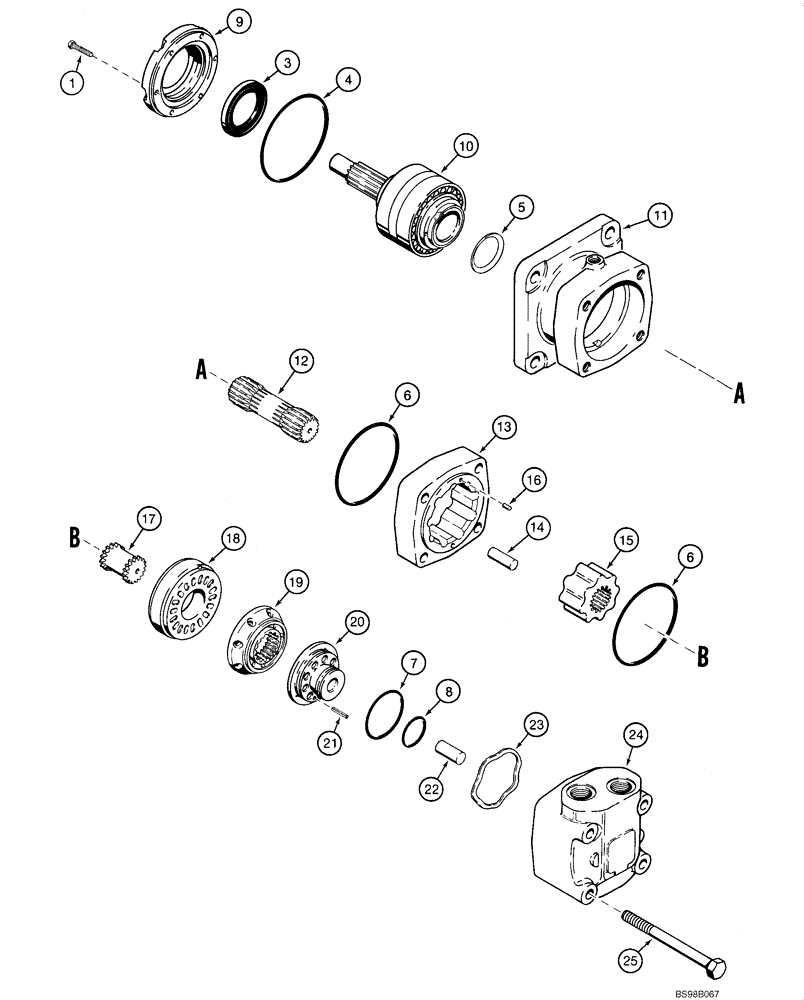

Запчасти Case IH 1840 (08-17) - HYDRAULIC DRIVE MOTOR (08) - HYDRAULICS

230459A1

MOTOR, HYDRAULIC

Incl. 1 - 25; Vendor Number 151B2048 Sauer-Danfoss; For Mounting, See Figure 08-09

2шт.

5" Diameter Pilot

1шт.

230459A1R

1840

REMAN-HYD MOTOR

2шт.

230459A1C

Return Number

CORE-MOTOR HYDRAULIC

1шт.

1

195268A1

SCREW

8 - 1.25 x 25 mm

6шт.

240899A1

SEAL KIT

Motor; Incl. 3 - 8, With 3 Teflon Rings

1шт.

3

NSS

NOT SOLD SEPARAT

Seal; Shaft

1шт.

4

NSS

NOT SOLD SEPARAT

O-ring; Output Shaft

1шт.

5

NSS

NOT SOLD SEPARAT

Ring

1шт.

6

NSS

NOT SOLD SEPARAT

O-ring; Gerotor

2шт.

7

NSS

NOT SOLD SEPARAT

O-ring; Thrust Plate; Large

1шт.

8

NSS

NOT SOLD SEPARAT

O-ring; Thrust Plate; Small

1шт.

9

H436753

FLANGE

1шт.

10

195264A1

SHAFT

Output; With Bearings

1шт.

11

195267A1

BEARING HOUSING

Bearing

1шт.

12

H436755

GEROTOR

Rotor Drive

1шт.

H436764

GEROTOR

Incl. 13 - 15

1шт.

13

NSS

NOT SOLD SEPARAT

Stator; Gerotor

1шт.

14

NSS

NOT SOLD SEPARAT

Roller; Gerotor

9шт.

15

NSS

NOT SOLD SEPARAT

Rotor; Gerotor

1шт.

16

E37942

GUIDE PIN

1шт.

17

H436757

SHAFT

Short

1шт.

18

H436759

CHAMBER

Short Shaft

1шт.

19

H436760

VALVE

1шт.

20

240896A1

LARGE PLATE

PLATE, LARGE Thrust

1шт.

21

738-5514

LOCK PIN,M5 x 14, Slotted

1шт.

22

H436761

SPACER

Port End Cover

1шт.

23

240898A1

SPRING WASHER

Spring

1шт.

24

240895A1

HOUSING

Port End

1шт.

25

175401A1

SCREW,Hex, M14 x 2 x 150mm, Cl 10.9

14 - 2.0 x 150 mm

4шт.
