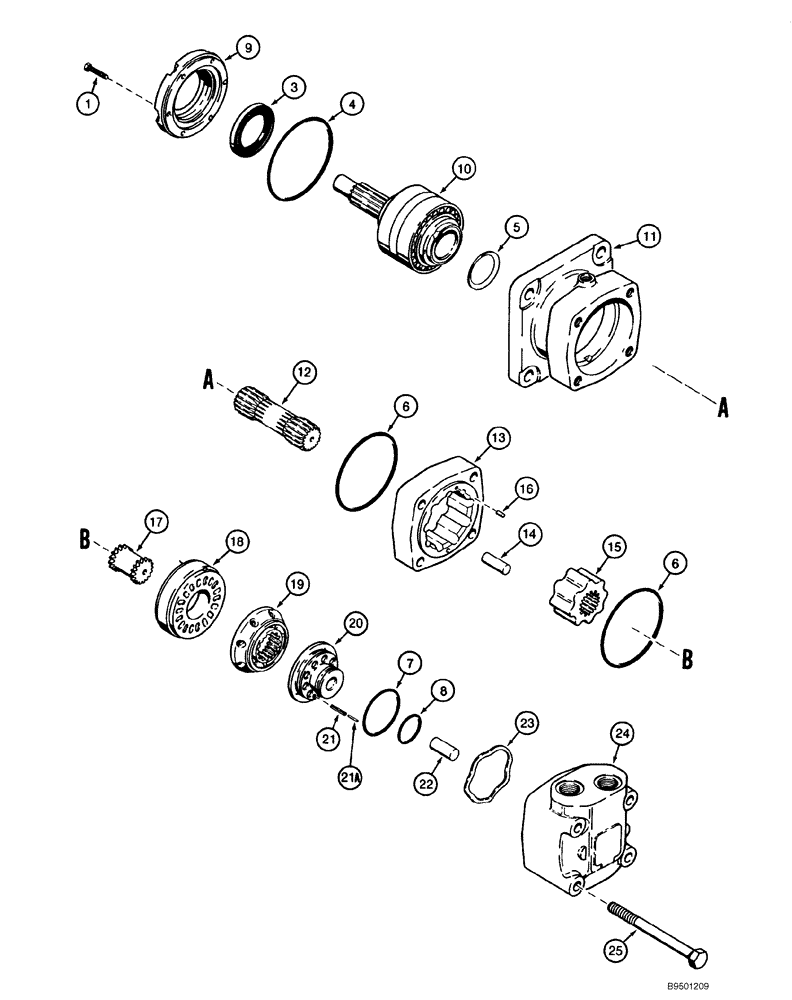

Запчасти Case IH 1840 (08-16) - HYDRAULIC DRIVE MOTOR, JAF0134090 - (08) - HYDRAULICS

141387A2

MOTOR, HYDRAULIC

JAF0134090 - ; No Longer Available, Order 230459A1, See Figure 08-17; For Mounting, See Figure 08-09

2шт.

5" Diameter Pilot

1шт.

230459A1R

1840 JAF0134090-; Reman for New P/N 141387A2

REMAN-HYD MOTOR

2шт.

230459A1C

Return Number

CORE-MOTOR HYDRAULIC

1шт.

1

195268A1

SCREW

8 - 1.25 x 25 mm

6шт.

H673765

SEAL PACKAGE

Motor

1шт.

3

NSS

NOT SOLD SEPARAT

Seal; Shaft

1шт.

4

NSS

NOT SOLD SEPARAT

O-ring; Output Shaft

1шт.

5

NSS

NOT SOLD SEPARAT

Ring

1шт.

6

NSS

NOT SOLD SEPARAT

O-ring; Gerotor

2шт.

7

NSS

NOT SOLD SEPARAT

O-ring; Thrust Plate; Large

1шт.

8

NSS

NOT SOLD SEPARAT

O-ring; Thrust Plate; Small

1шт.

9

H436753

FLANGE

Seal

1шт.

10

195264A1

SHAFT

Output; With Bearings

1шт.

11

195267A1

BEARING HOUSING

Bearing

1шт.

12

H436755

GEROTOR

Rotor Drive; Long

1шт.

H436764

GEROTOR

Motor

1шт.

13

NSS

NOT SOLD SEPARAT

Stator; Gerotor

1шт.

14

NSS

NOT SOLD SEPARAT

Roller; Gerotor

9шт.

15

NSS

NOT SOLD SEPARAT

Rotor; Gerotor

1шт.

16

E37942

GUIDE PIN

1шт.

17

H436757

SHAFT

Short

1шт.

18

H436759

CHAMBER

Short Shaft

1шт.

19

H436760

VALVE

Disc

1шт.

20

H436763

LARGE PLATE

PLATE, LARGE Thrust

1шт.

21

838-1528

LOCK PIN,M5 x 28, Slotted

Replaces 837-5028

1шт.

21a

838-1324

LOCK PIN,M3 x 24, Slotted

Assemble Inside of Ref 21

1шт.

22

H436761

SPACER

Port End Cover

1шт.

23

H436762

SPACER

Spring Wave

1шт.

24

240895A1

HOUSING

Replaces H436758; Also Order 382849A1

1шт.

382849A1

DRIVE PLATE

1шт.

25

175401A1

SCREW,Hex, M14 x 2 x 150mm, Cl 10.9

14 - 2.0 x 150 mm

4шт.
