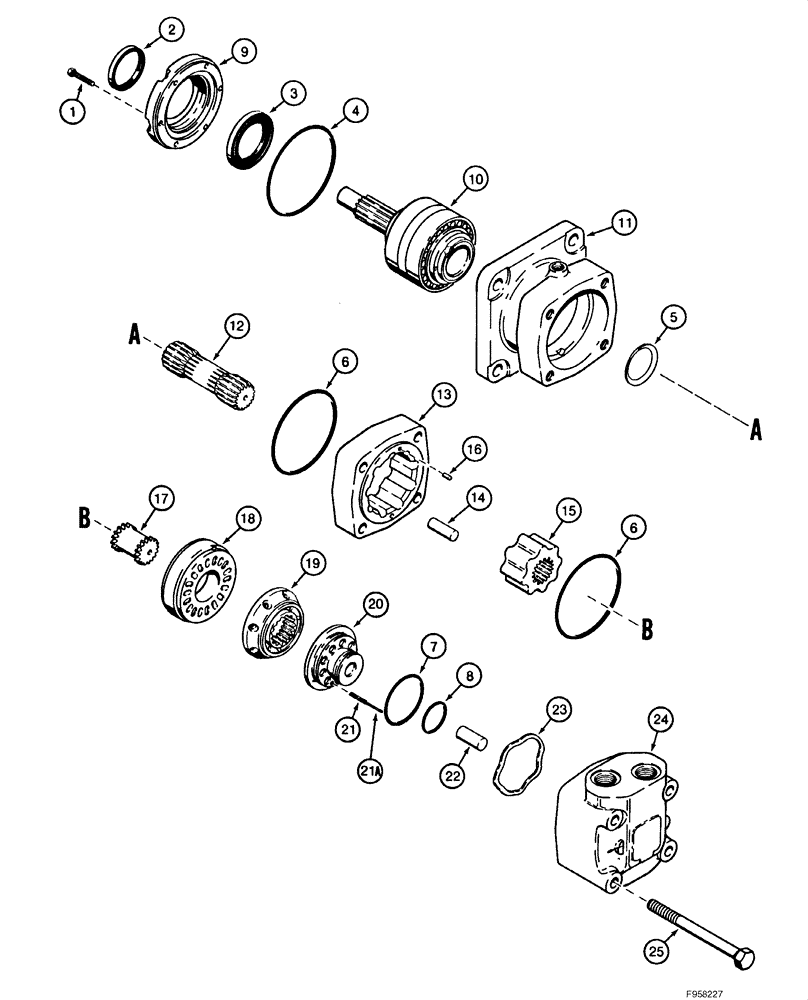

Запчасти Case IH 1840 (08-15) - HYDRAULIC DRIVE MOTOR, JAF0046205 - JAF0134061 (08) - HYDRAULICS

H673449

MOTOR, HYDRAULIC

JAF0046205 - JAF0134061; No Longer Available, Order 231815A1; See Figure 08-15

2шт.

6.3" Diameter Pilot

1шт.

231815A1R

1840 JAF0046205 - JAF0134061, Reman For New P/N H673449

REMAN-HYD MOTOR

2шт.

231815A1C

Return Number

CORE-MOTOR HYDRAULIC

1шт.

231815A1

MOTOR, HYDRAULIC

Incl. 1 - 25; For Mounting, See Figure 08-15; Replaces H673449

2шт.

6.3" Diameter Pilot

1шт.

231815A1R

1840 JAF0046205 - JAF0134061

REMAN-HYD MOTOR

2шт.

231815A1C

Return Number

CORE-MOTOR HYDRAULIC

1шт.

1

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

6шт.

H673765

SEAL PACKAGE

Incl. 2 - 8

1шт.

2

NSS

NOT SOLD SEPARAT

Wiper; Shaft

1шт.

3

NSS

NOT SOLD SEPARAT

Seal; Shaft

1шт.

4

NSS

NOT SOLD SEPARAT

O-ring; Output Shaft

1шт.

5

NSS

NOT SOLD SEPARAT

Ring

1шт.

6

NSS

NOT SOLD SEPARAT

O-ring; Gerotor

2шт.

7

NSS

NOT SOLD SEPARAT

O-ring; Thrust Plate; Large

1шт.

8

NSS

NOT SOLD SEPARAT

O-ring; Thrust Plate; Small

1шт.

9

H436753

FLANGE

1шт.

10

H436752

SHAFT

Output; With Bearings

1шт.

11

H436754

BEARING HOUSING

Bearing

1шт.

12

H436755

GEROTOR

Rotor Drive; Long

1шт.

H436764

GEROTOR

Incl. 13 - 15

1шт.

13

NSS

NOT SOLD SEPARAT

Stator; Gerotor

1шт.

14

NSS

NOT SOLD SEPARAT

Roller; Gerotor

9шт.

15

NSS

NOT SOLD SEPARAT

Rotor; Gerotor

1шт.

16

E37942

GUIDE PIN

1шт.

17

H436757

SHAFT

Short

1шт.

18

H436759

CHAMBER

Short

1шт.

19

H436760

VALVE

1шт.

20

H436763

LARGE PLATE

PLATE, LARGE Thrust

1шт.

21

838-1528

LOCK PIN,M5 x 28, Slotted

Replaces 837-5028; Use with 21A

1шт.

21a

838-1324

LOCK PIN,M3 x 24, Slotted

Inner Roll Pin; Assemble Inside of 21

1шт.

22

H436761

SPACER

Port End Cover

1шт.

23

H436762

SPACER

Spring Wave

1шт.

24

240895A1

HOUSING

Replaces H436758; Also Order 382849A1

1шт.

382849A1

DRIVE PLATE

1шт.

25

814-14150

BOLT,Hex, M14 x 2 x 150mm, Cl 8.8

Hex, M14 x 150, 8.8

4шт.
