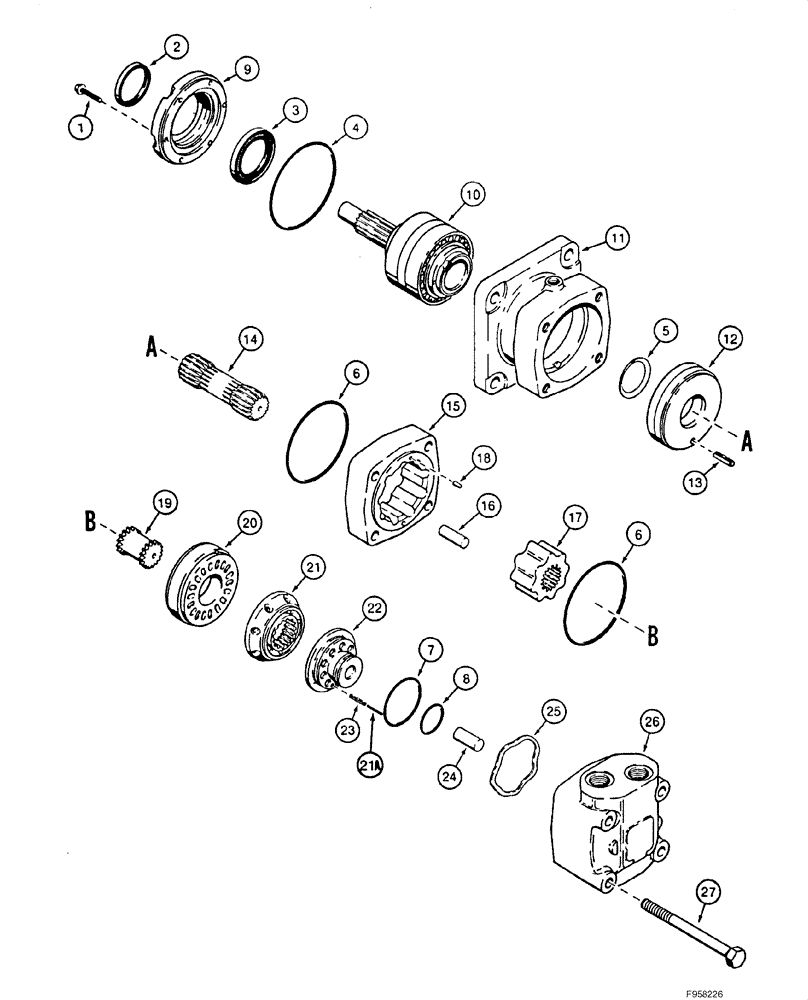

Запчасти Case IH 1840 (08-14) - HYDRAULIC DRIVE MOTOR, - JAF0046205 (08) - HYDRAULICS

H673057

MOTOR, HYDRAULIC

- JAF0046205; Incl. 1 - 27; For Mounting, See Figure 08-09; No Longer Available, Order 231815A1; See Figure 08-15

2шт.

231815A1R

1840 JAF0046205, Reman For New P/N H673057

REMAN-HYD MOTOR

2шт.

231815A1C

Return Number

CORE-MOTOR HYDRAULIC

1шт.

1

853-6035

BOLT

6 - 1 x 35 mm; 10.9

6шт.

H436217

SEAL KIT

Seal, motor; Incl. 2 - 8

1шт.

2

NSS

NOT SOLD SEPARAT

Wiper; Shaft

1шт.

3

NSS

NOT SOLD SEPARAT

Seal; Shaft

1шт.

4

NSS

NOT SOLD SEPARAT

O-ring; Output Shaft

1шт.

5

NSS

NOT SOLD SEPARAT

Ring

1шт.

6

NSS

NOT SOLD SEPARAT

O-ring; Gerotor

2шт.

7

NSS

NOT SOLD SEPARAT

O-ring; Thrust Plate; Large

1шт.

8

NSS

NOT SOLD SEPARAT

O-ring; Thrust Plate; Small

1шт.

9

N14670

FLANGE

1шт.

10

N14671

SHAFT

Output; With Bearings; No Longer Available, Order H673449; See Figure 08-15

1шт.

11

N14672

BEARING HOUSING,104 mm ID x 160 mm OD x 117 mm

Bearing

1шт.

12

N14673

WASHER

1шт.

13

N14674

PIN

1шт.

14

H436591

SHAFT

Rotor Drive

1шт.

H436592

ROTOR ASSY.

Incl. 15 - 17

1шт.

15

NSS

NOT SOLD SEPARAT

Stator; Gerotor

1шт.

16

NSS

NOT SOLD SEPARAT

Roller; Gerotor

9шт.

17

NSS

NOT SOLD SEPARAT

Rotor; Gerotor

1шт.

18

E37942

GUIDE PIN

Pin

1шт.

19

N14677

SHAFT

Short

1шт.

20

N14678

PLATE

Short Shaft

1шт.

21

N14679

FLANGE

1шт.

21a

838-1324

LOCK PIN,M3 x 24, Slotted

Inner Roll Pin; Assemble Inside Ref 23

1шт.

22

N14680

LARGE PLATE

PLATE, LARGE Thrust

1шт.

23

838-1528

LOCK PIN,M5 x 28, Slotted

Replaces N14681; Use with 21A

1шт.

24

N14682

SPACER

Port End Cover

1шт.

25

N14683

BLOCK

Spring Wave

1шт.

26

H436216

COVER

Port End

1шт.

27

814-16150

BOLT,Hex, M16 x 2 x 150mm, Cl 8.8

4шт.
