(02-06) - WATER PUMP SYSTEM, 4-390 ENGINE

Запчасти Case IH 1840 (02-06) - WATER PUMP SYSTEM, 4-390 ENGINE (02) - ENGINE

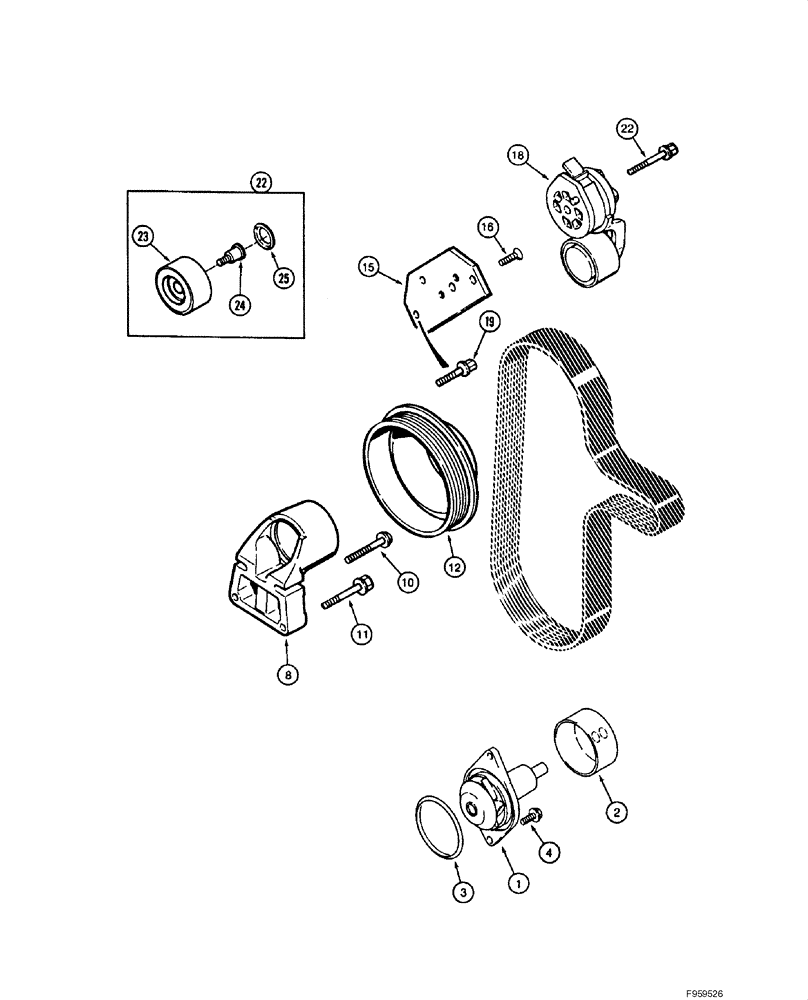

Схема запчастей Case IH 1840 - (02-06) - WATER PUMP SYSTEM, 4-390 ENGINE (02) - ENGINE
4
11
19
8
23
22
2
16
10
12
24
25
3
18
1
22
15
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

AR77703

PUMP

Remanufactured; No Longer Available, Order A77703

1шт.

J286278R

REMAN-WATER PUMP

Reman for new P/N AR77703

1шт.

J286278C

CORE-WATER PUMP

Return Number

1шт.

AC77703

CORE-WATER PUMP

Return Number; Incl. 1 - 3

1шт.

A77703

PUMP, WATER

Replaces A77471; No Longer Available, Order J286277

1шт.

A77703GV

WATER PUMP

Value, Water Pump Assy.

1шт.

J286277

PUMP, WATER

Note: For Water Pump Replacement - JAF0064393, Also Order (1) H437716 fan spacer, (4) 614-10030 bolts and (4) 496-21041 washers. See Figure 02-02, REF 10, 11, 14

1шт.

J286278R

REMAN-WATER PUMP

1840 Prior to PIN JAF0064393, Must Also Order Qty. 1 of P.N H437716 Fan Spacer, Qty. 4 of 43140 Bolts, Qty. 4 of 86625241 Washers.

1шт.

J286278C

CORE-WATER PUMP

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

Pump

1шт.

2

NSS

NOT SOLD SEPARAT

Pulley; Water Pump

1шт.

3

238-5341

O-RING,0.21" Thk x 3.475" ID, -341, Cl 5, 75 Duro

Used with A77703

1шт.

3

J906698

RUBBER SEAL,Square, 5.16mm Thk x 88.27mm ID

Used With J286277

1шт.

4

J900227

BOLT,Hex, M8 x 1.25 x 22mm, Cl 10.9

2шт.

8

J911205

BRACKET

Fan

1шт.

10

845-8030

BOLT,Hvy Hex, M8 x 30mm, Cl 8.8

2шт.

11

845-8040

BOLT,Hvy Hex, M8 x 40mm, Cl 8.8

2шт.

12

J914462

PULLEY,163mm OD

1.1 to 1 ratio; European Models - JAF0098065; North American Models - JAF0118968

1шт.

12

87739401

PULLEY,207.26mm OD

207 mm diameter, 0.87 to 1 ratio; Replaces J914461; European Models JAF0098065 - ; North American Models JAF0118968 -

1шт.

15

J925195

SUPPORT

Belt Tensioner; European Models - JAF0098065; Replaces J904550

1шт.

15

J925207

SUPPORT

Belt Tensioner; European Models JAF0098065 - ; Replaces J919985

1шт.

15

J925194

SUPPORT

Belt Tensioner; North American Models - JAF0118968

1шт.

15

J925195

SUPPORT

Belt Tensioner; North American Models JAF0118968 -

1шт.

16

J925186

SCREW,Torx, M8 x 1.25 x 25mm, Cl 10.9

Replaces J903095

2шт.

18

J918944

BELT TENSIONER

Replaces J914086; No Longer Available, Order J936203

1шт.

18

J936203

BELT TENSIONER

1шт.

21

854-10070

BOLT,Hvy Hex, M10 x 70mm, Cl 10.9

1шт.

22

A77817

KIT

Belt Tensioner Pulley; Used To Replace Pulley Of J918944; Incl. 23 - 25

1шт.

23

NSS

NOT SOLD SEPARAT

Pulley

1шт.

24

NSS

NOT SOLD SEPARAT

Bolt

1шт.

25

NSS

NOT SOLD SEPARAT

Seal

1шт.
