Запчасти Case IH 1840 (08-12) - HYDROSTATIC DRIVE HYDRAULICS (08) - HYDRAULICS

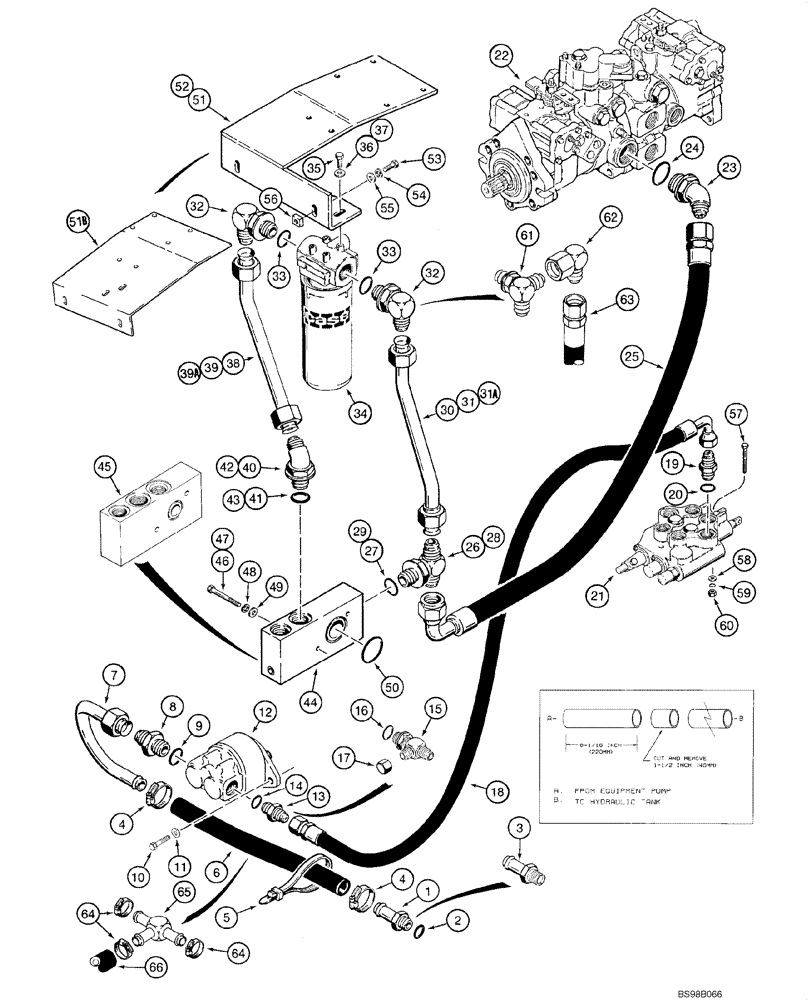

Схема запчастей Case IH 1840 - (08-12) - HYDROSTATIC DRIVE HYDRAULICS (08) - HYDRAULICS
32
39a
63
2
56
57
53
50
3
44
6
47
61
64
11
65
60
23
14
35
24
27
51
5
38
4
30
46
8
58
10
55
54
32
4
42
17
59
51b
1
62
49
20
19
36
15
16
9
52
39
37
33
18
48
22
13
31
7
66
45
33
34
12
21
29
31a
40
43
64
28
25
41
26

Артикул

Название

Примечание

Количество

1

217-179

FITTING,1" Hose Barb x 1-5/16" - 12 Male ORB

No Longer Used, Order Ref. 3

1шт.

2

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

3

217-156

FITTING,1" Hose Barb x 1" Male NPTF

1 in stem end x PT

1шт.

4

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

Hydraulic Tank Hose

2шт.

5

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

1шт.

6

D124619

HOSE,25.4 mm ID x 525.00 mm, SAE 100R3

Cut from S118383X; at Hydraulic Tank

1шт.

7

D126506

TUBE

At Hydraulic Equipment Pump

1шт.

8

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

O-ring boss

1шт.

9

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

10

868-10030

12 PT SCREW,M10 x 30mm, Cl 12.9

Replaces 413-720

2шт.

11

496-21041

WASHER,13/32" x 13/16" x .089", HDN

2шт.

12

131694A1

PUMP

Hydraulic; See Figure 08-19; No Longer Available, Order 319602A1

1шт.

12

87413847R

REMAN-HYD PUMP

1шт.

12

87413847C

CORE-HYDRAULIC PUMP

Return Number

1шт.

12

319602A1

PUMP, HYDRAULIC

See Figure 08-19; No Longer Available, Order 87413847

1шт.

12

87413847

PUMP, HYDRAULIC

Component Parts Not Serviced Separately, For Seal Replacement, Order 87413478

1шт.

12

87413847R

REMAN-HYD PUMP

1шт.

12

87413847C

CORE-HYDRAULIC PUMP

Return Number

1шт.

87413478

SEAL KIT

Not Illustrated

1шт.

13

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8-14 inch flare x O-ring boss; No Longer Used, Order REF 15 - 17

1шт.

14

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

15

218-5241

TEE,7/8" - 14 Male JIC x 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

7/8-14 in flare branch x flare x adj O-ring boss

1шт.

16

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

17

218-756

CAP,37 Degree, 7/8"-14

1шт.

18

D134380

HOSE ASSY.,15.88mm ID x 850mm L

900 mm (35-7/16 in); Pump To Loader Control Valve

1шт.

19

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8-14 in flare x O-ring boss

1шт.

20

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

21

REF

INSTRUCTION

Valve Assy; Loader Control; See Figure 08-05 - 08-07

1шт.

22

REF

INSTRUCTION

Pump Assy; Tandem; See Figure 06-07 - 06-09D

1шт.

23

218-5525

ELBOW,45 Degree, 1 5/16"-12 x 1 5/8"-12, 37 Degree

45 degree, 1-5/16-12 flare x 1-5/8-12 in adj O-ring

1шт.

24

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.

25

H436153

HOSE ASSY.

915 mm (36 in); To Tandem Pump

1шт.

26

218-5187

TEE,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

1-5/16-12 in adj O-ring branch x flare x flare; - JAF0098525

1шт.

27

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

28

218-5512

TEE,1 5/16"-12, 37 Degree x1 5/16"-12 x 1 1/16"-12, O-Ring Br

1-1/16-12 adj O-ring branch x 1-5/16-12 in flare x flare; JAF0098525 -

1шт.

29

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

30

H673547

TUBE,25.4 mm OD x 395, 79 mm L

Tee To Filter; - JAF0098525

1шт.

31

104506A1

TUBE,25.4 mm OD, 398, 93 mm Length

Tee To Filter; JAF0098525 - ; Without Emissions Certified Engine

1шт.

31a

292076A1

TUBE,25.4 mm OD, 469, 105 mm Length

Manifold To Filter Outlet; Emissions Certified Engine

1шт.

32

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adjustable

2шт.

33

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

34

D125507

FILTER

Hydraulic Oil; See Figure 08-13

1шт.

35

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

36

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16"), North American Models

2шт.

37

496-21041

WASHER,13/32" x 13/16" x .089", HDN

European Models

2шт.

S118383X

LARGE HOSE

HOSE,LARGE 25 (1) x 38 (1-1/2) x 4877 mm (192 in)

1шт.

38

H673506

TUBE,25.4 mm OD x 361, 119.8 mm L

Hydraulic Oil Filter To Check Valve Manifold; - JAF0098525

1шт.

39

104505A1

TUBE,25.4 mm OD, 371, 123 mm Length

Filter To Manifold; JAF0098525 - ; Without Emissions Certified Engine

1шт.

39a

292078A1

TUBE,25.4 mm OD, 420, 260 mm Length

Filter To Manifold

1шт.

40

218-5140

45 ELBOW,45 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

45 degree, 1-5/16-12 in flare x adj O-ring boss; - JAF0098525

1шт.

41

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

42

218-5147

ELBOW,45 Degree Elbow, 1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Adj. O-ring; JAF0098525 -

1шт.

43

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

44

D137500

MANIFOLD

Check Valve; - JAF0098525; See Figure 08-17

1шт.

45

104702A4

MANIFOLD

Check Valve; JAF0098525 - ; Incl. O-ring, To Replace Order 238-5120; Component Parts Not Serviced Separately; Replaces 104702A1

1шт.

46

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- JAF0098525

2шт.

47

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

3/8 NC x 2-1/4 in; Replaces 413-636; JAF0098525 -

2шт.

48

492-11038

LOCK WASHER,3/8"

2шт.

49

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

2шт.

50

238-5219

O-RING,0.139" Thk x 1.296" ID, -219, Cl 5, 75 Duro

Manifold Check Valve; Component Of D137500 Manifold But Not Of 104702A1

1шт.

51

138375A1

BRACKET

Oil Filter Mounting; North American Models; Replaces H673332; Without Emissions Certified Engine

1шт.

51a

138375A1

BRACKET

Oil Filter Mounting; Used With High Flow Option; Without Emissions Certified Engine; Not Illustrated

1шт.

51b

284701A1

SUPPORT

Oil Filter Mounting; Emissions Certified Engine

1шт.

52

E20962

BRACKET

Oil Filter Mounting; European Models; Not Illustrated; No Longer Used, Order REF 51B

1шт.

53

413-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

2шт.

54

492-11038

LOCK WASHER,3/8"

2шт.

55

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

2шт.

56

84899

SQUARE NUT,Sq, 3/8"-16, G2

2шт.

57

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

2шт.

58

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16"), If used

2шт.

59

493-41033

LOCK WASHER,0.33" ID x 0.61" OD x 0.03" Thk

If Used

1шт.

60

232-4115

LOCK NUT,5/16"-18, GC

2шт.

61

103754A1

ELBOW,90 Degree, 1 5/16" ORB x 1 1/16"-12 JIC

90 degree; Replaces REF 32

1шт.

62

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

1шт.

63

300851A1

HOSE ASSY.

630 mm (24-13/16 in); Filter Outlet To High Flow Pump Inlet; Replaces 117288A1

1шт.

64

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

3шт.

65

D55776

TEE

Hose Stem

1шт.

66

131224A1

HOSE ASSY.

500 mm (19-11/16 in); Hydraulic Tank To High Flow Pump Inlet

1шт.
